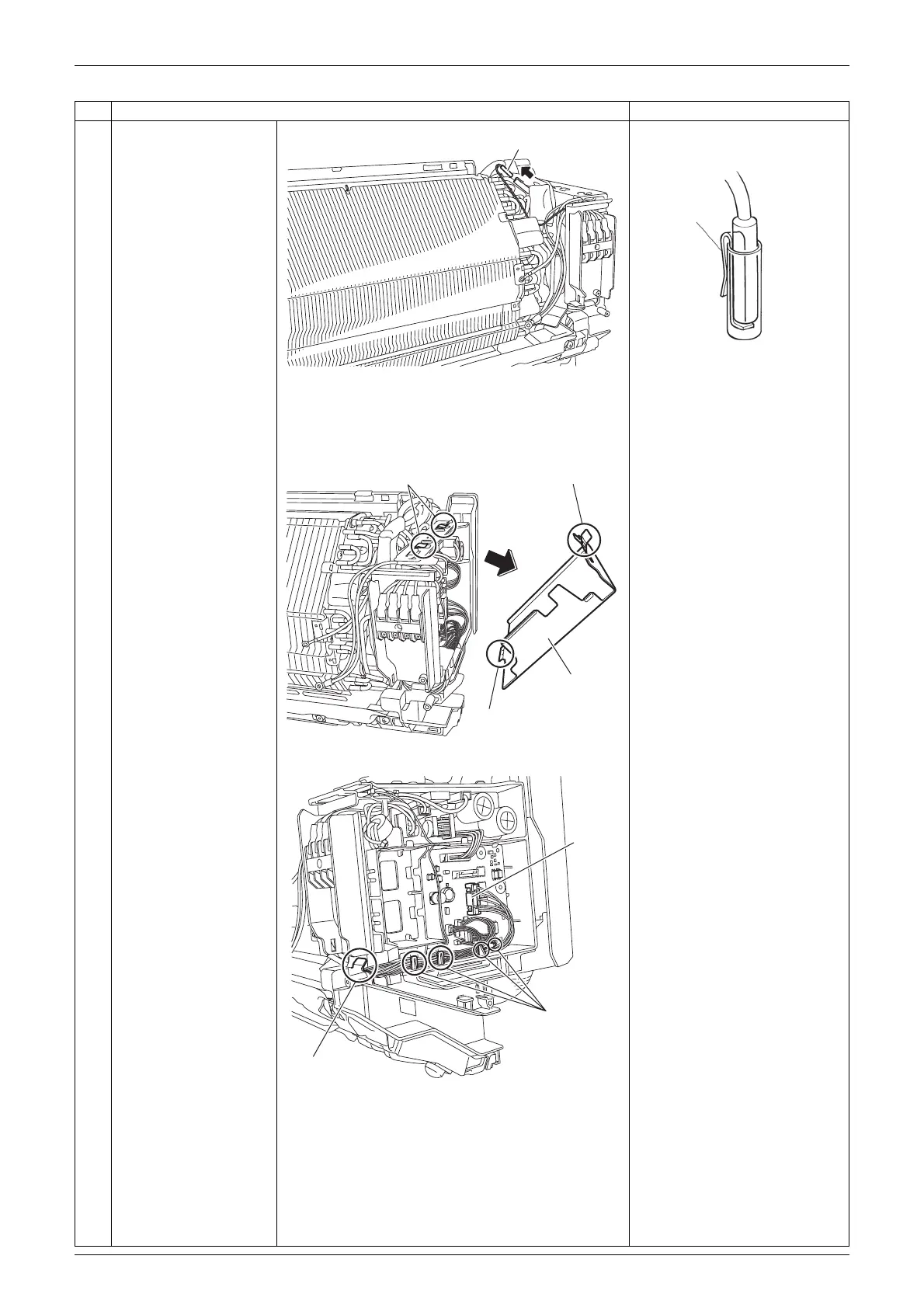

Si041652EB Electrical Box
Removal Procedure 7
2 Pull out the indoor heat
exchanger thermistor.
Be careful not to lose the clip
of the thermistor.
The location of the indoor
heat exchanger thermistor
varies depending on the
model.
3 Unfasten the 4 hooks
and remove the
electrical box cover.
When reassembling, make
sure that the 4 hooks are
securely fastened.
4
5
Disconnect the
connector [S200].
Release the harnesses
from the 4 hooks and
the groove.
[S200]: fan motor
Step Procedure Points
Indoor heat exchanger thermistor
(R22897)
(R11268)
Clip
Hook
Hook
Hook
Electrical box
cover
(R22898)
[S200]
Hook
Groove
(R23517)
To Next Page
