5
Room temperature sensor:
• It senses the air temperature around
the unit.
• Push this button once to start operation. Push once again
to stop it.
• The operation mode refer to the following table.
• This button is useful when the remote controller is missing.
ON/OFF button
• It receives signals from the remote controller.
• When the unit receives a signal, you will hear
a short beep.
Before opening the front grille, be sure to
stop the operation and turn the breaker
OFF. If the power is on, the fan may rotate
inside and may cause injury.
CAUTION
Receiver:
FTKD COOL
Mode
22˚C
Temperature setting
AUTO
FTXD AUTO 25˚C AUTO
Air flow rate
DAIKIN
Front grille
Indicator lamps
Grille tab
Diffuser
OPERATION lamp (green)
HOME LEAVE lamp (red)
TIMER lamp (yellow)
The louvre is inside of the air outlet.
(See page 11.)
• Lights up when you use HOME
LEAVE Operation.
(See page 13.)
Air outlet
Louvre
(vertical blades)
(See page 11.)
(See page 15.)
Flap
(Horizontal blade)
ON/OFF button
Air inlet
Air purifying filter
Air purifying filters are
attached to the inside
of the air filters.
Air filter
Indoor unit
Opening the front grille
How to open the front grille : (See page 9.)

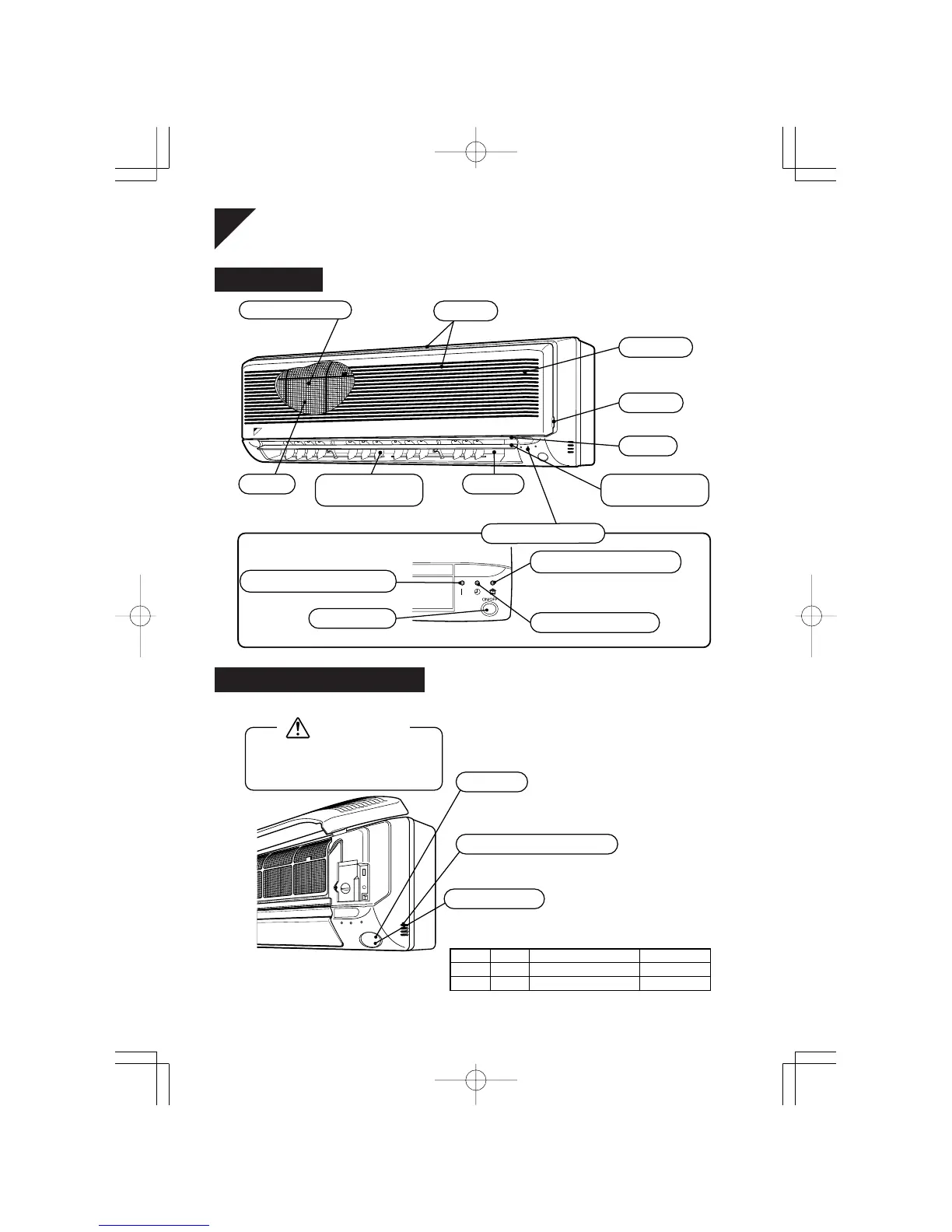

Names of Parts
To Next Page
