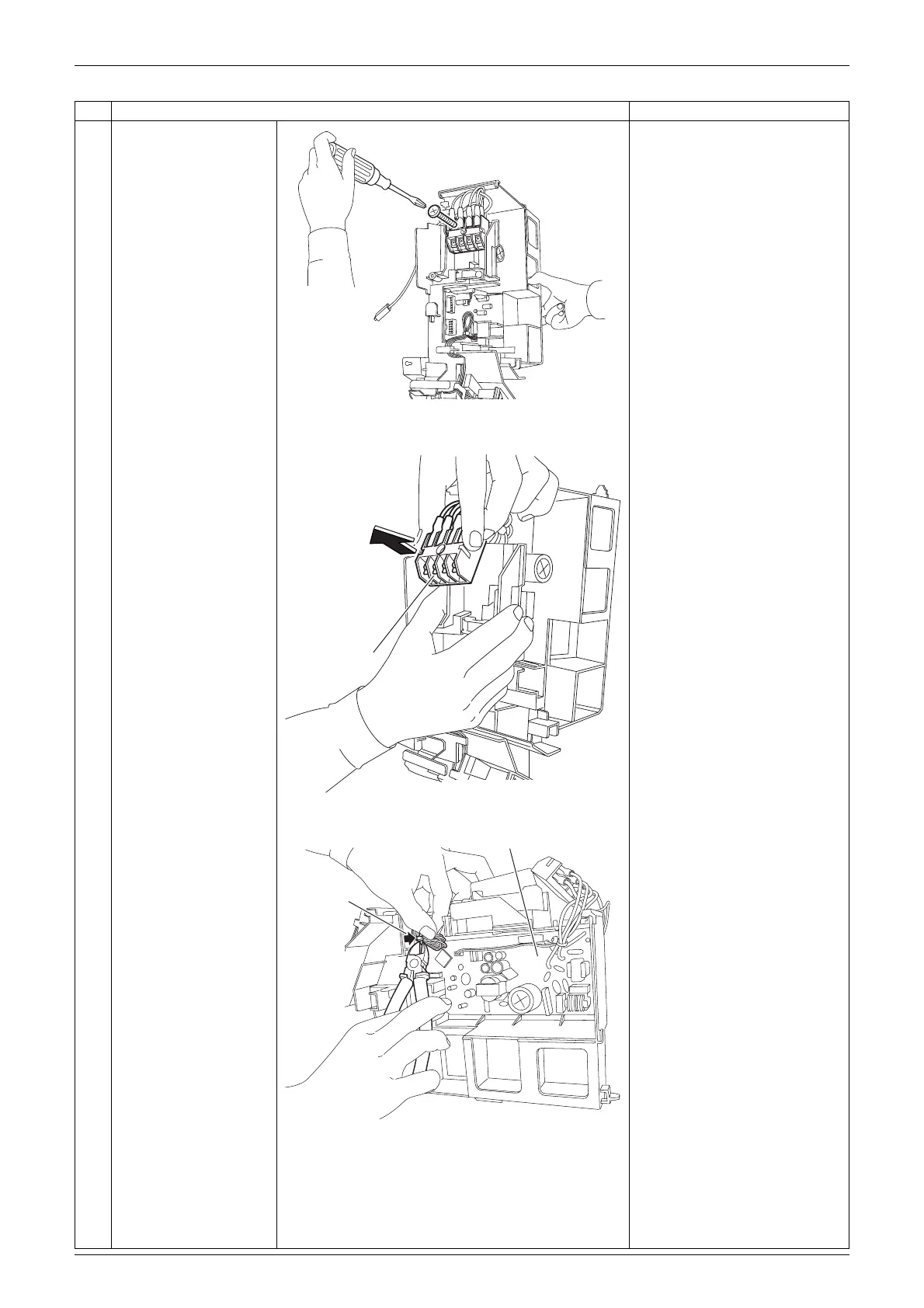

Removal of PCBs Si041144
12 Removal Procedure
4
Remove the screw of
the terminal board.
5
Remove the terminal
board.
(1 hook at the back)
6
Cut the clamp.
Step Procedure Points
(R16285)
(R16286)
Terminal board
(R16499)
Clamp
Control PCB
