Removal of Vertical blade ASSY Si041144
34 Removal Procedure
8. Removal of Vertical blade ASSY
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

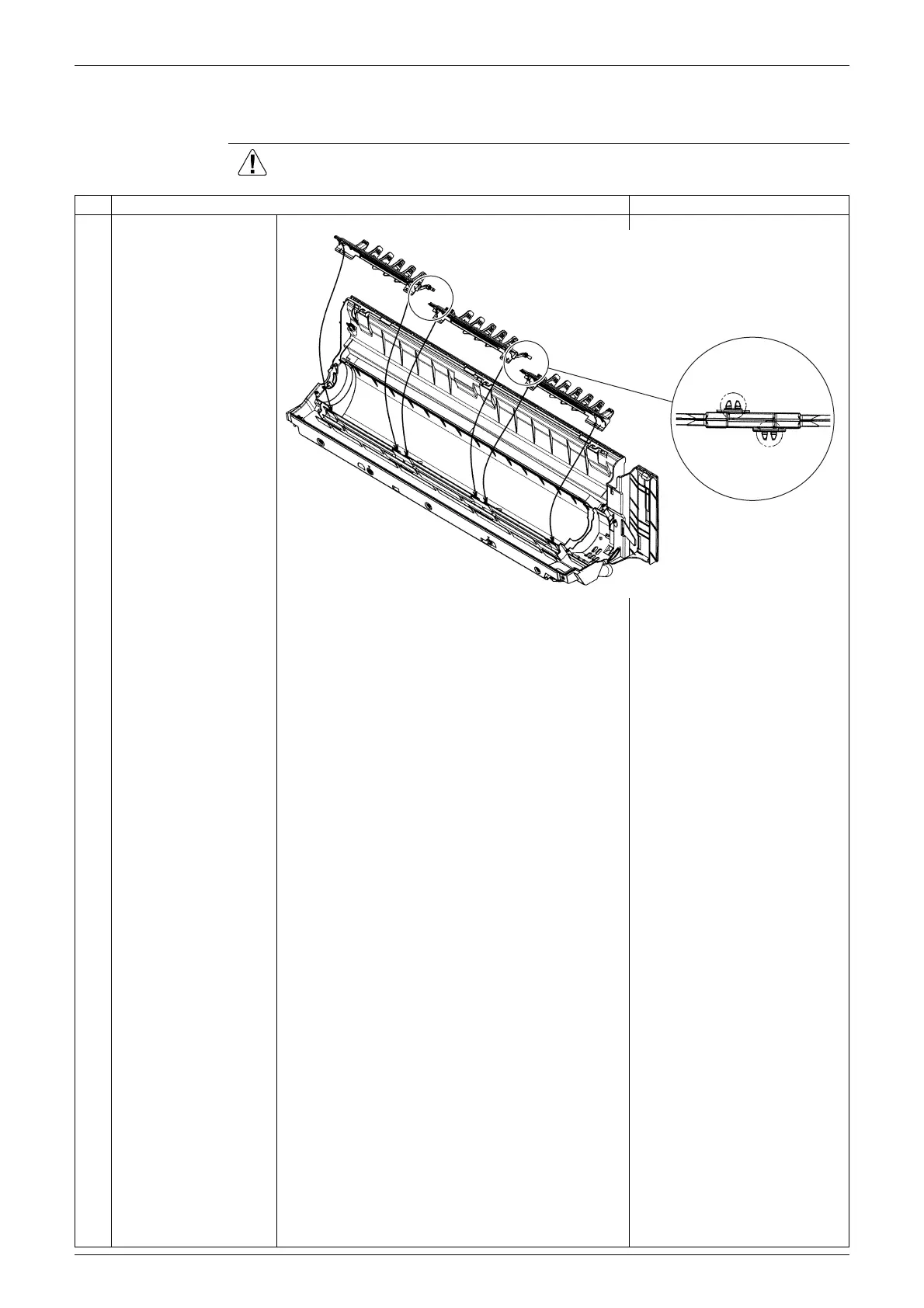

Unfasten the 2 hooks of
each vertical blade
ASSY.
Remove the 3 vertical
blade ASSYs.


Each vertical blade ASSY is
united with a drain pan
ASSY.
(R16504)

When reassembling,
connect the 3 vertical blade
ASSYs. Fasten the hooks at
the connecting points.
