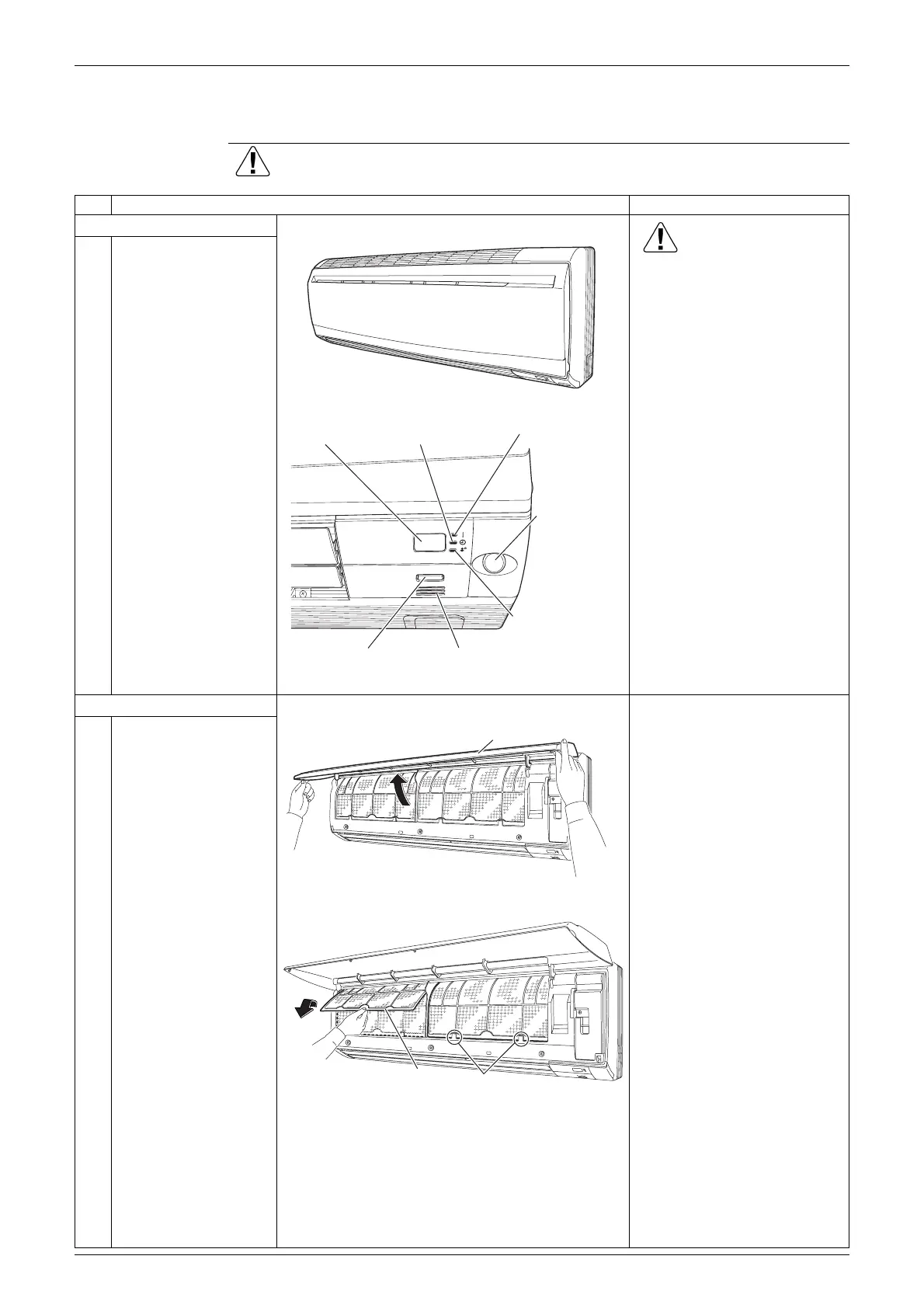

Removal of Air Filters / Front Panel Si041144
2 Removal Procedure
1. Removal of Air Filters / Front Panel
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Appearance features
Warning
Dangerous: High voltage
A high voltage is applied to all
the electric circuits of this
product including
thermistors.
When the signal receiver
catches a signal from the
remote controller, the
receiving tone sounds and
the operation lamp blinks
immediately to confirm the
signal reception.
When the [ON/OFF] button
is kept pressed for 5
seconds, the forced cooling
operation is performed for
about 15 minutes.
Some models have no
INTELLIGENT EYE sensor/
lamp.
2. Remove the air filters.
The 2 filters are
interchangeable.
The air filter can be set
easily by inserting it along
the guides.
Insert the air filter with the
"FRONT" mark faced up.
Be sure to insert the hooks
(at 2 lower positions) when
reassembling the air filter.
1
Open the front panel to
the position where it
stops.
2
Slightly push up the
center knob of the air
filter and unfasten the
hooks.
3
Pull out the air filter
downward and remove
it.
(R16259)
ON/OFF
(R16682)
Operation lamp
TIMER lampSignal receiver
Room temperature thermistor[ON/OFF] button
INTELLIGENT
EYE sensor
INTELLIGENT
EYE lamp
Front Panel
(R16449)
(R16450)
Air filter
Hook
To Next Page
