Daikin FTKD24HV2S - Removal of Electrical Box

Si041144 Removal of Electrical Box
Removal Procedure 7

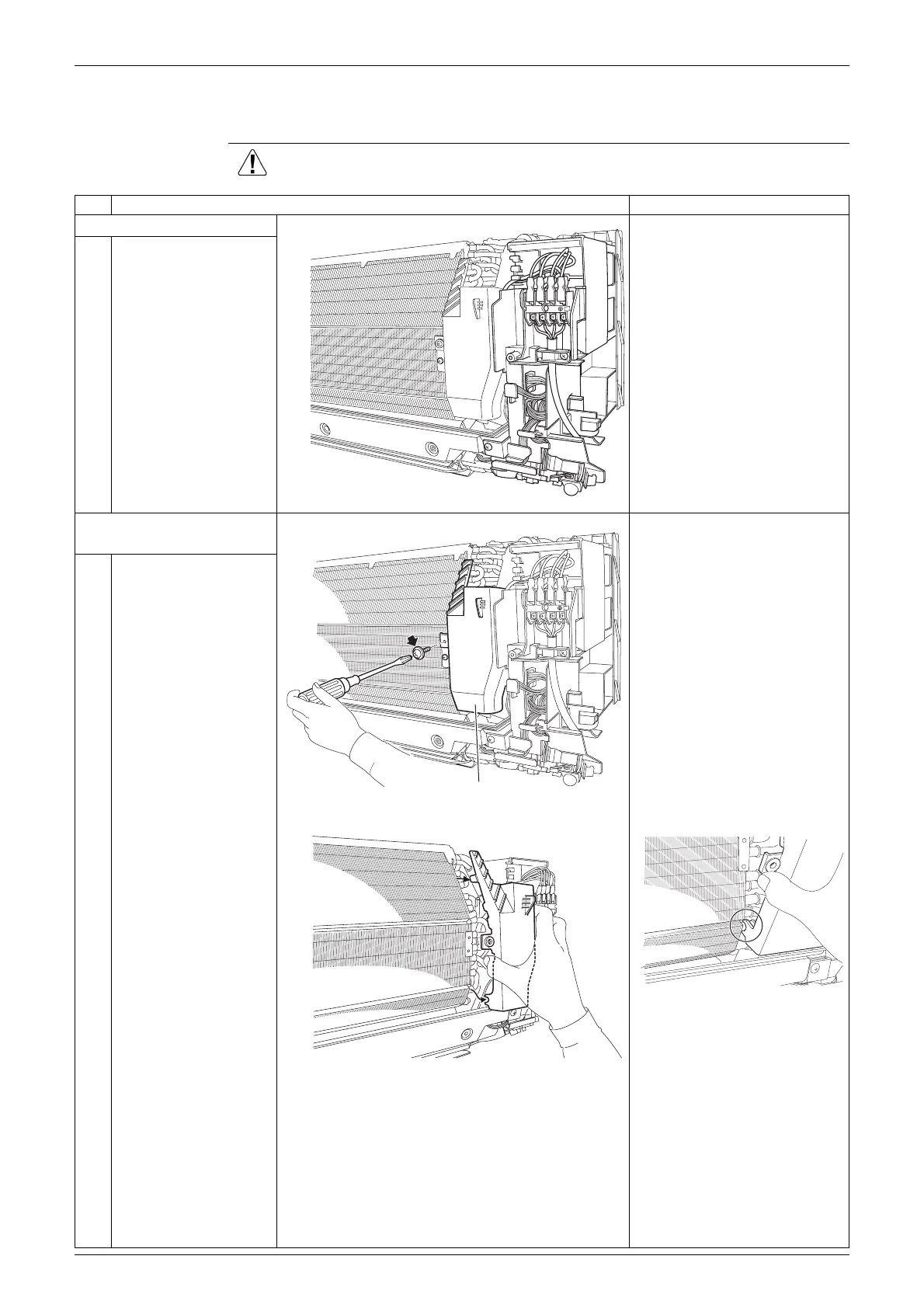

3. Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Layout of the parts
Preparation

Remove the front grille
according to the “Removal of
Front Grille.”
2. Remove the drip proof
plate.
1
Remove the screw.
2
Remove the drip proof
plate from the indoor
heat exchanger.

When reassembling, fit the
hook to the indoor heat
exchanger.
1
2
3
(R16270)
1
2
3
(R16271)
Drip proof plate
(R16272)
(R16273)
