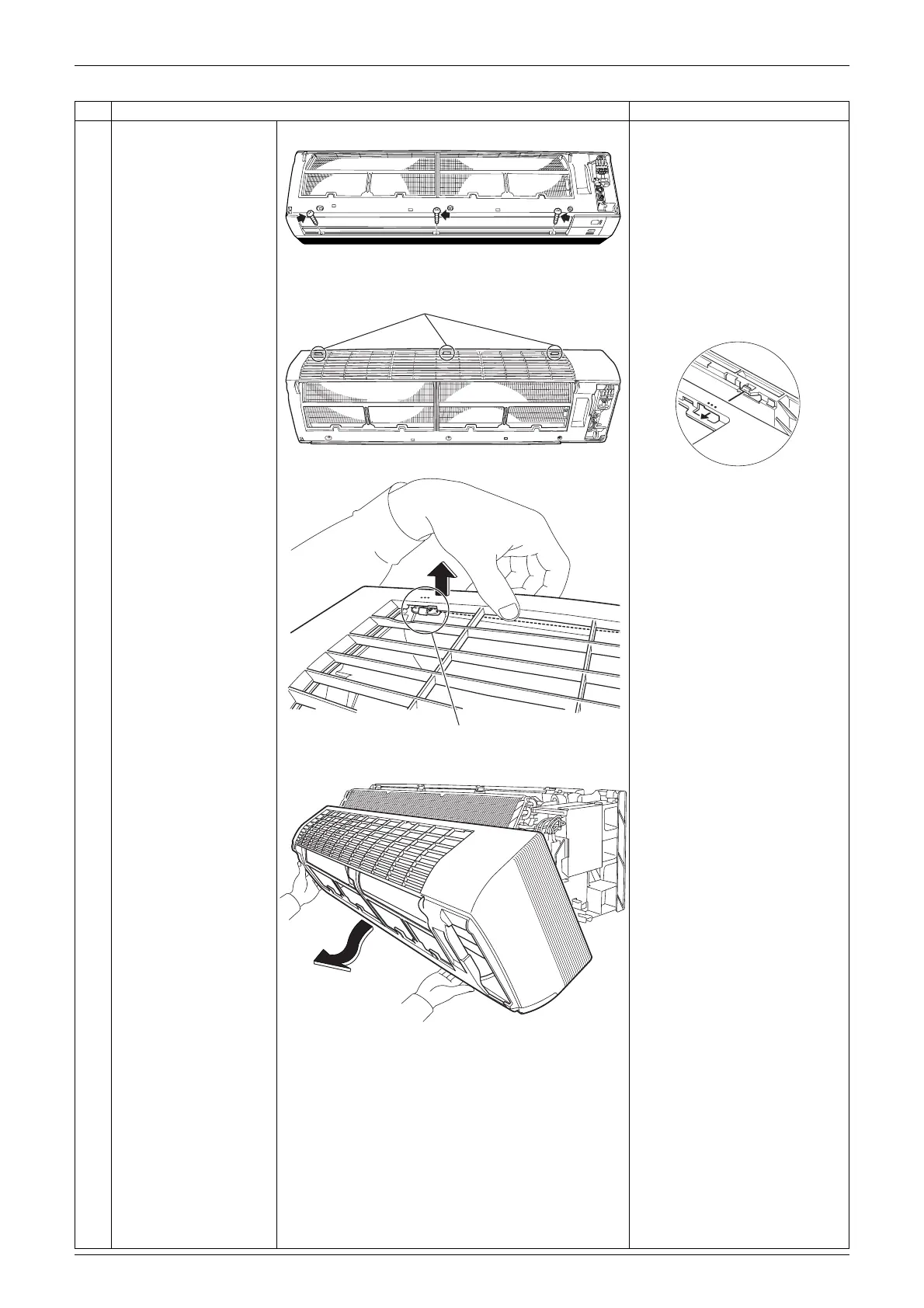

Removal of Front Grille Si041144
6 Removal Procedure
3
Remove the lower 3
screws.
4
Unfasten the 3 hooks
on the top of the front
grille.

The convex marks (...) on
the front panel indicate the
position of the hooks.
5
Pull the upper part of
the front grille out and
lift the lower part up,
and then remove the
front grille.

When reassembling, make
sure that all the 3 hooks are
fastened as they were.
Step Procedure Points
(R16267)
(R16511)
Hook
(R9487)
Hook
(R12715)
(R16269)
