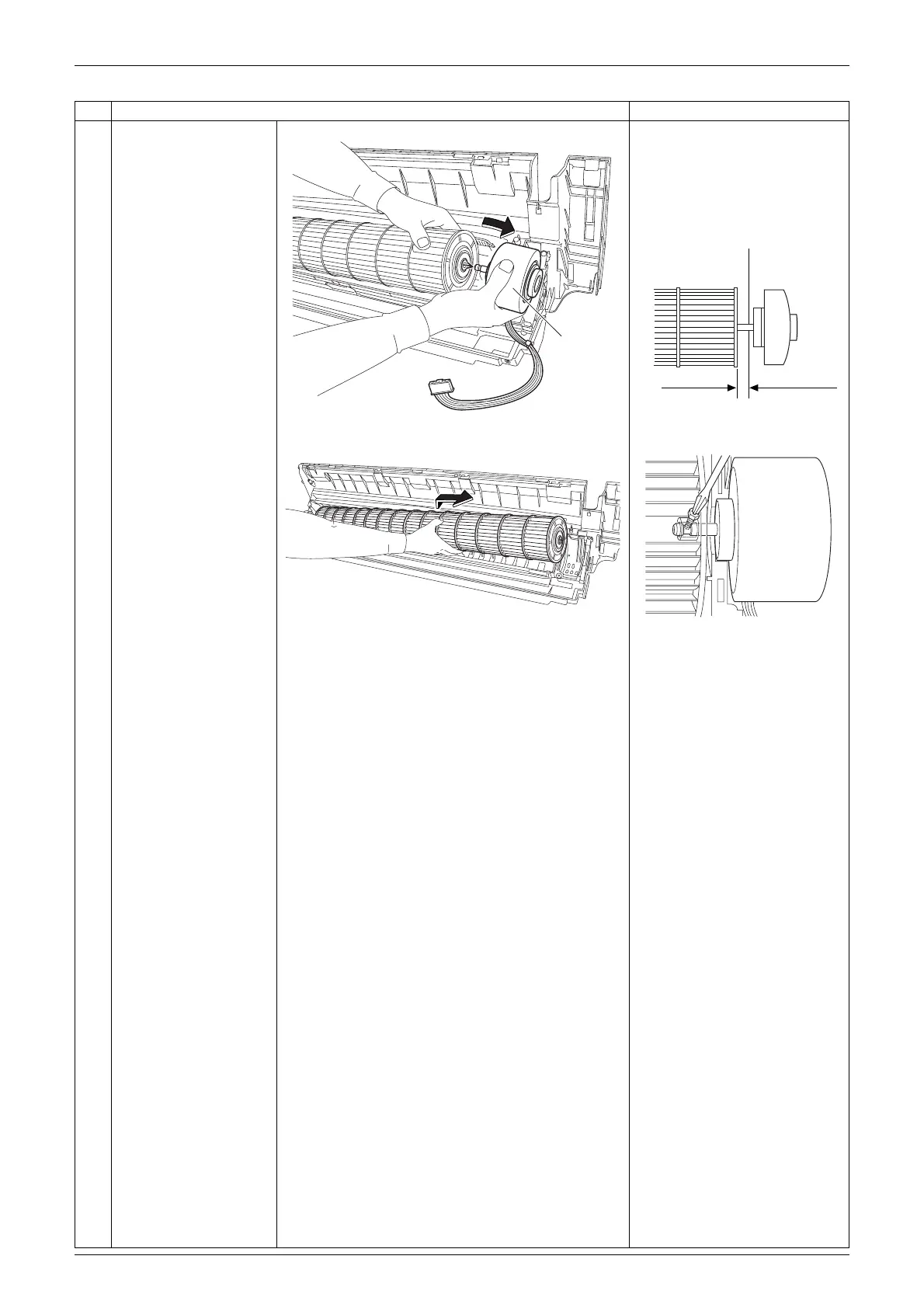

Si041144 Removal of Fan Motor / Fan Rotor
Removal Procedure 33
4
Remove the fan motor.
î
When reassembling the fan
motor and the fan rotor,
provide as much as 5 mm of
play between the side face
of the rotor and the bottom
frame.
(1) Insert the fan motor leaving
approx. 5 mm space.
(2) Tighten the screw until it
stops. Then turn the screw in
one scroll.
(3) Move the fan rotor and
confirm the fan motor and
the fan rotor are installed
appropriately.
(4) If appropriate, tighten the
screw completely.
(5) If not appropriate, go back to
(1).
5
Remove the fan rotor.
Step Procedure Points
(R16305)
Fan motor
5 mm
End of rotor
(R2808)
End of
bottom frame
(R9582)
(R9584)
