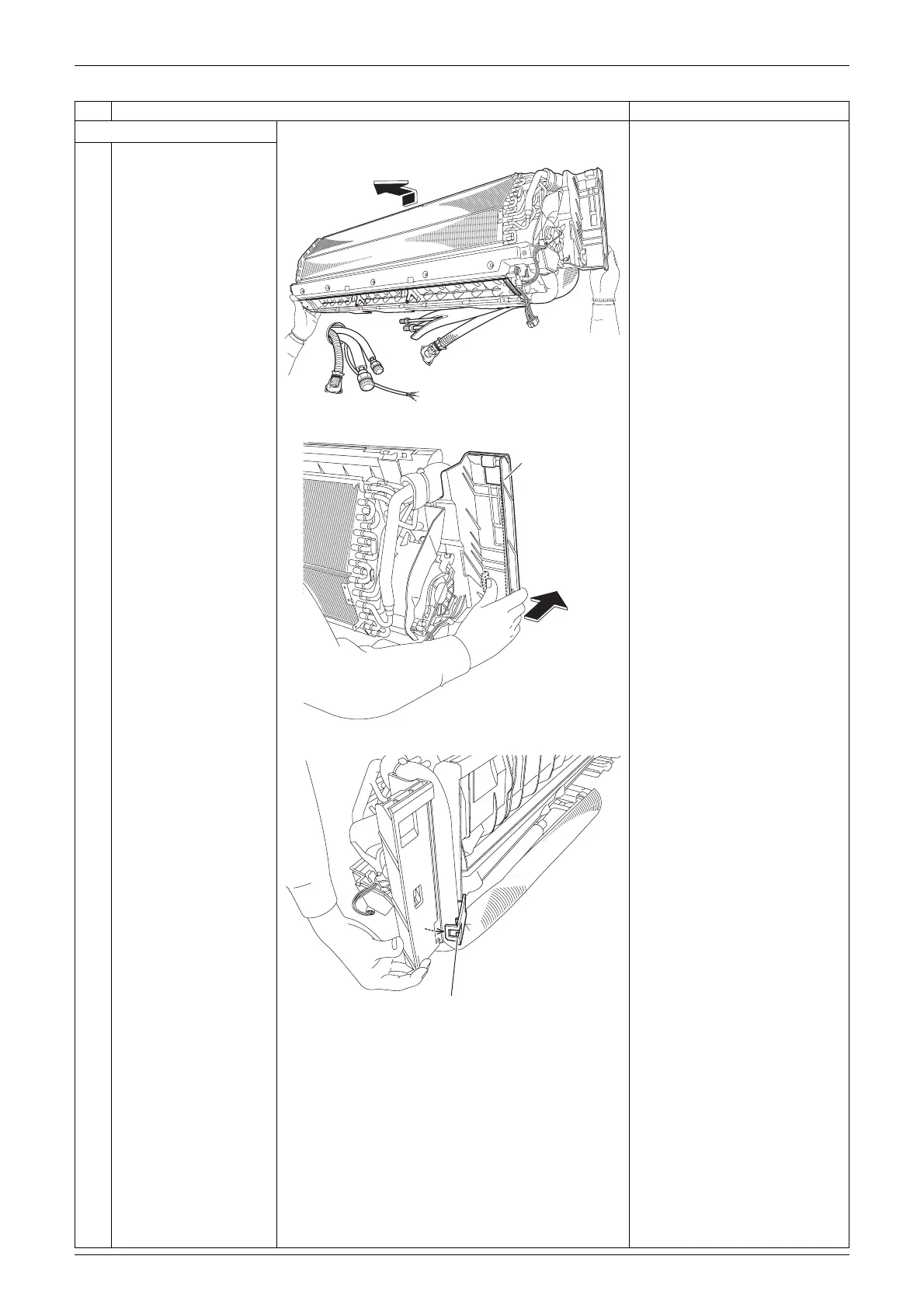

Removal of Indoor Heat Exchanger Si041144
28 Removal Procedure
2. Remove the piping fixture.
1
Detach the indoor unit
from the installation
plate.
2
Push the bottom frame.
3
Release the piping
fixture.
Step Procedure Points
(R16524)
(R16309)
Bottom frame
(R9573)
Piping fixture
