Removal of Air Filters / Front Panel Si041144
4 Removal Procedure

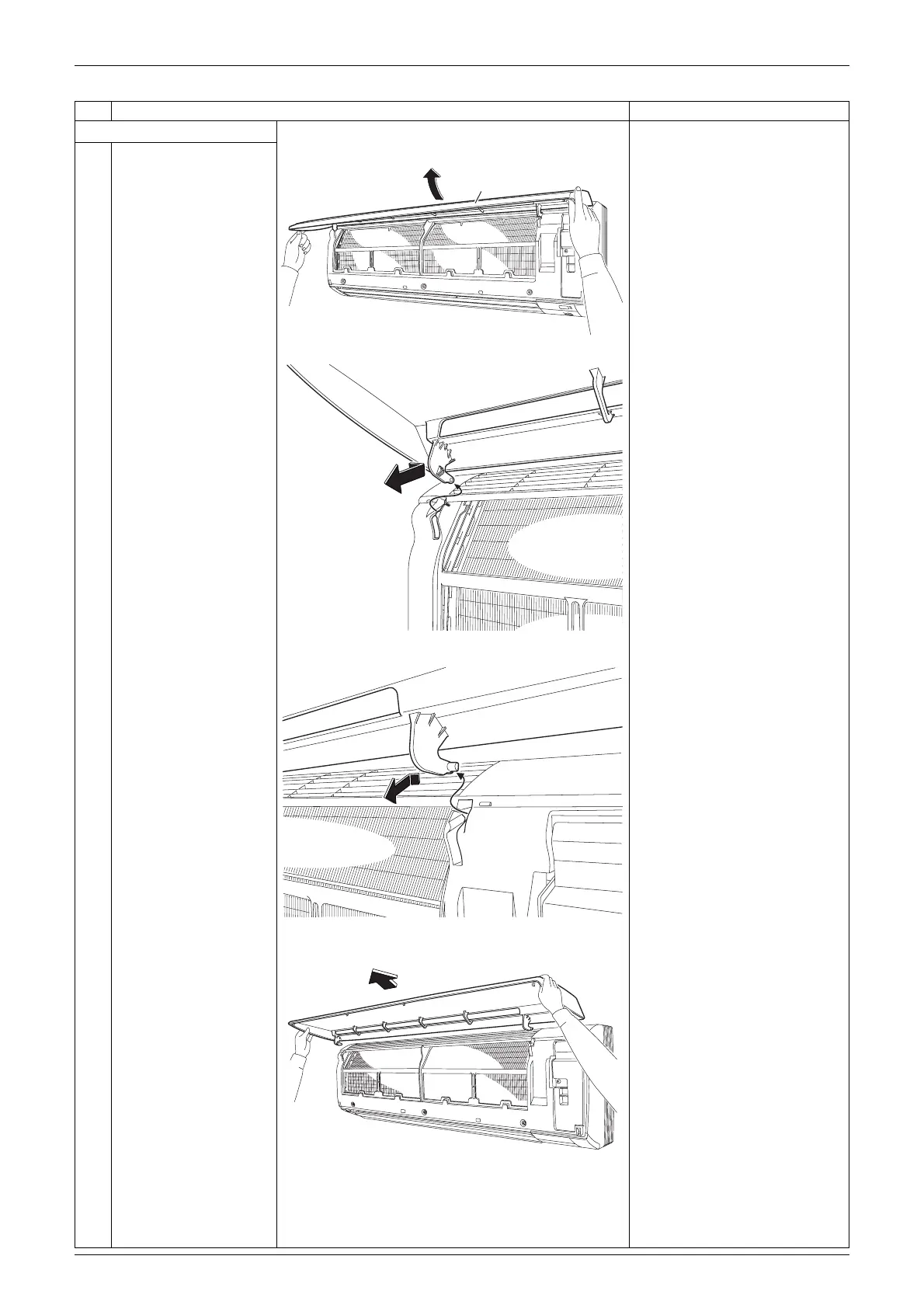

4. Remove the front panel.
1
While opening the front
panel further than it
stops, release both the
shafts.
Slide the front panel from
side to side to release each
shaft.
Align the right and left shafts
with grooves in turn and
insert them to the end when
reassembling.
2
Remove the front panel.
Step Procedure Points
(R16456)
Front Panel
(R9480)
(R9481)
(R16451)
