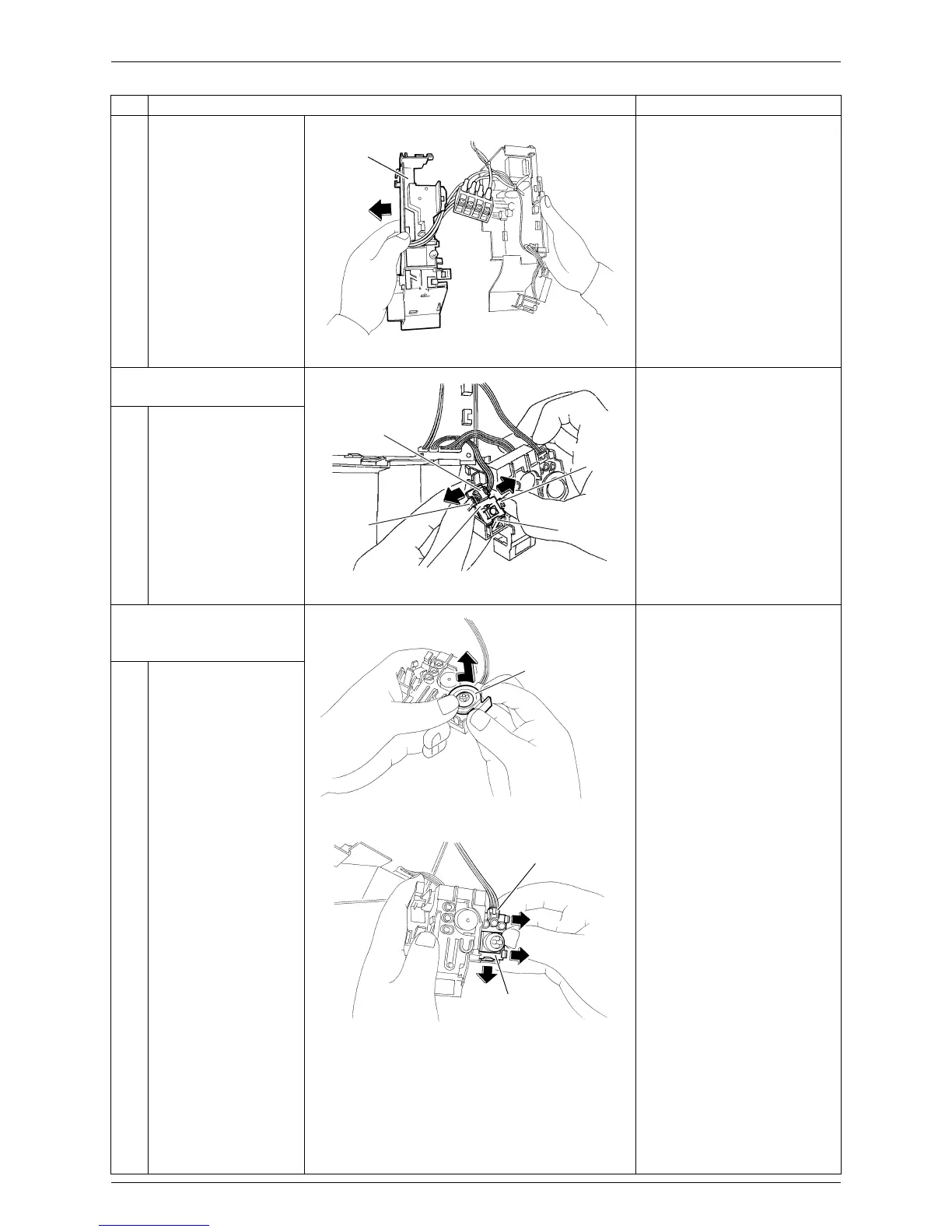

Si041251EC PCBs
Removal Procedure 11
3
Slide the electrical box
cover to the left and
remove it.
5. Remove the signal
receiver PCB.
1
2
Unfasten the 3 hooks
and remove the signal
receiver PCB.
Disconnect the
connector [S29] from
the signal receiver
PCB.
6. Remove the
INTELLIGENT EYE
sensor PCB.

Some models have no
INTELLIGENT EYE sensor
PCB.
1
Remove the
INTELLIGENT EYE
fixing plate by twisting
it.
2
3
Unfasten the 3 hooks
on the right and remove
the INTELLIGENT EYE
sensor PCB.
There are also 2 hooks
on the left side.
Disconnect the
connector [S36] from
the INTELLIGENT EYE
sensor PCB.
Step Procedure Points
Electrical
box cover
(R20213)
Hook
[S29]
Hook
Hook
Signal receiver PCB
(R17205)
(R4363)
INTELLIGENT EYE
fixing plate
(R17206)
INTELLIGENT
EYE sensor PCB
[S36]
