Daikin FTKS35D3VMW - Outdoor Unit; Removal of the Panels and Plates

Outdoor Unit SiENBE12-713
288 Removal Procedure
1. Outdoor Unit
1.1 Removal of the Panels and Plates
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

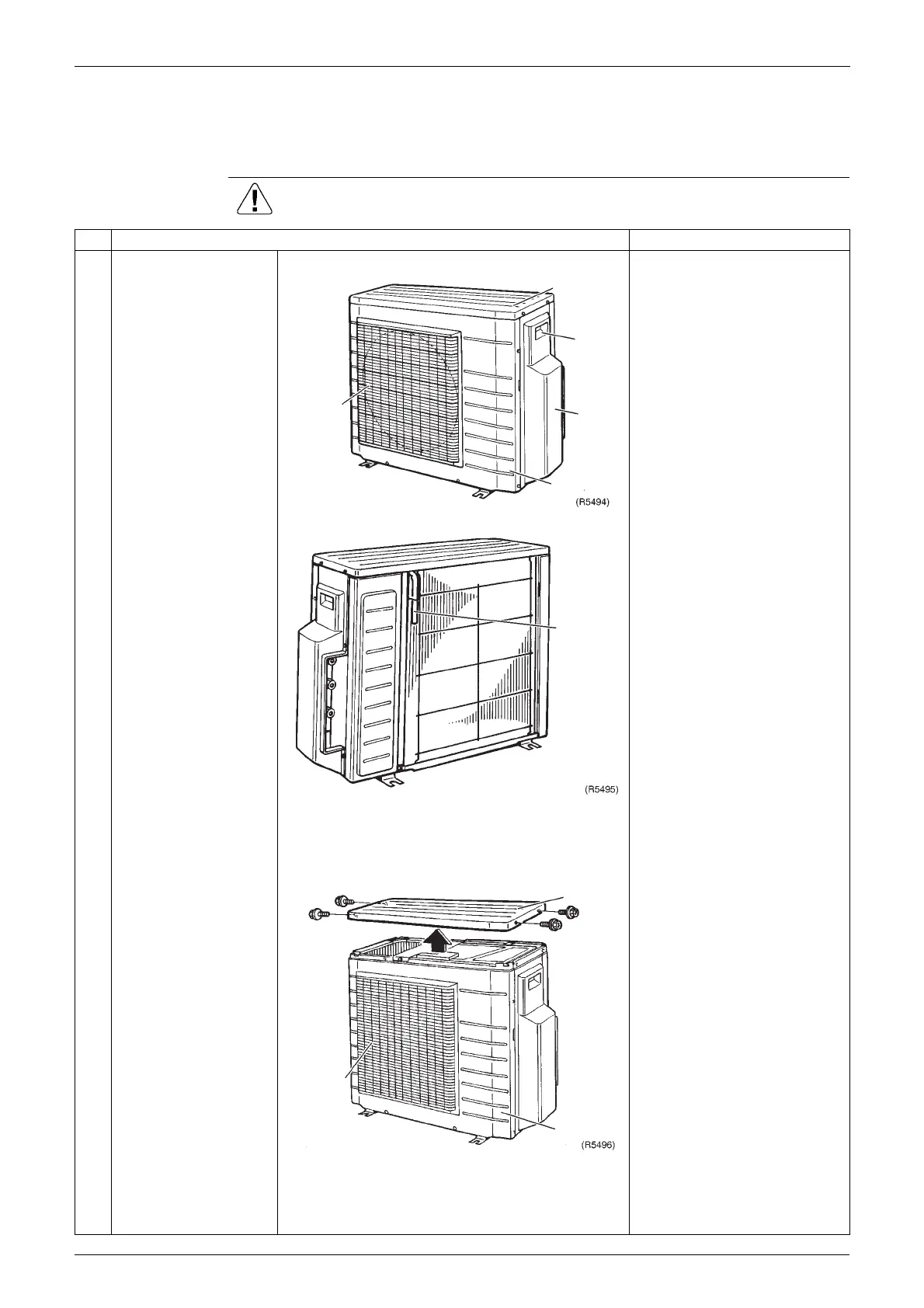

1
External appearance. " Take care not to cut your
finger by the fins of the heat
exchanger.
2
Loosen the 4 screws (2
on both sides) of the top
panel.
Top panel
handle
Stop
valve
cover
Front panel
Discharge
grille
Outdoor air
thermistor
Discharge
grille
Top panel
Front panel
