1.3 Operation Starting Control
FTXG25-35E, CTXG50E
The system carries out the following control at the beginning to conduct every functional parts
properly.
1. Opening the front panel fully
2. Output of the ΔD signal after the front panel starts moving
3. Opening the flap fully after the front panel opens fully
4. Making the fan rotate when the flap passes over the fan-banned area

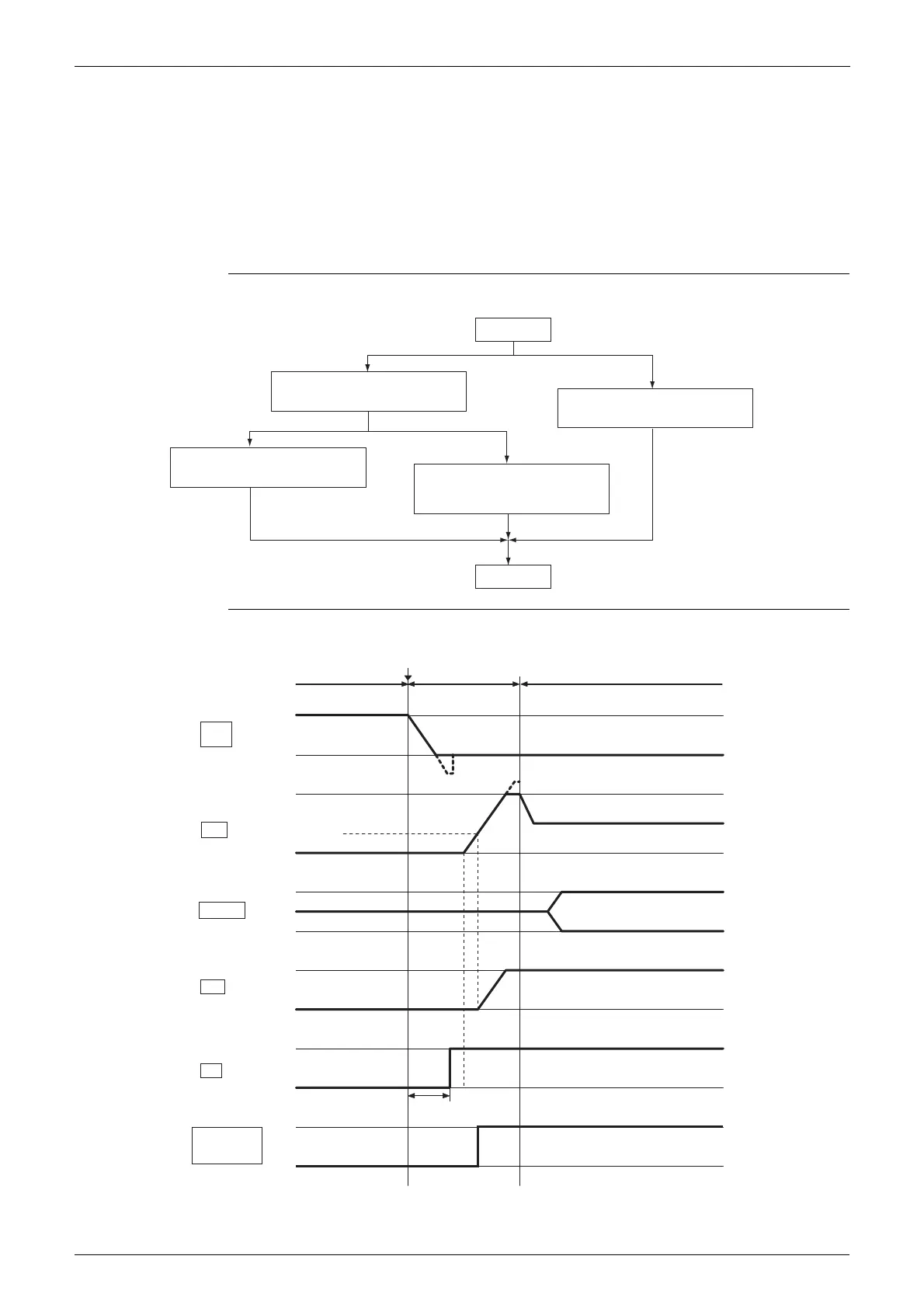

Control Flow
Timing Chart
1 Opening the front panel fully
Start
Running
2 Output of the DD signal after
the front panel starts moving
4 Making the fan rotate
when the flap passes over
the fan-banned area
3 Opening the flap fully
(R3311)
TDELTA
Fully close
OFF
Start
ON
Flap
Under running control
Under running control
Under operation mode control
Under operation mode control
Louvers
Fan
DD
Fully open
Fully open
Fully close
Right
Left
ON
OFF
OFF
Output
ON
D0
Fan-banned area
(R3312)
Front
panel
Force supply
(from the
outdoor unit)
The outdoor unit provides force
when it receives the DD signal.
Operation
starting control
