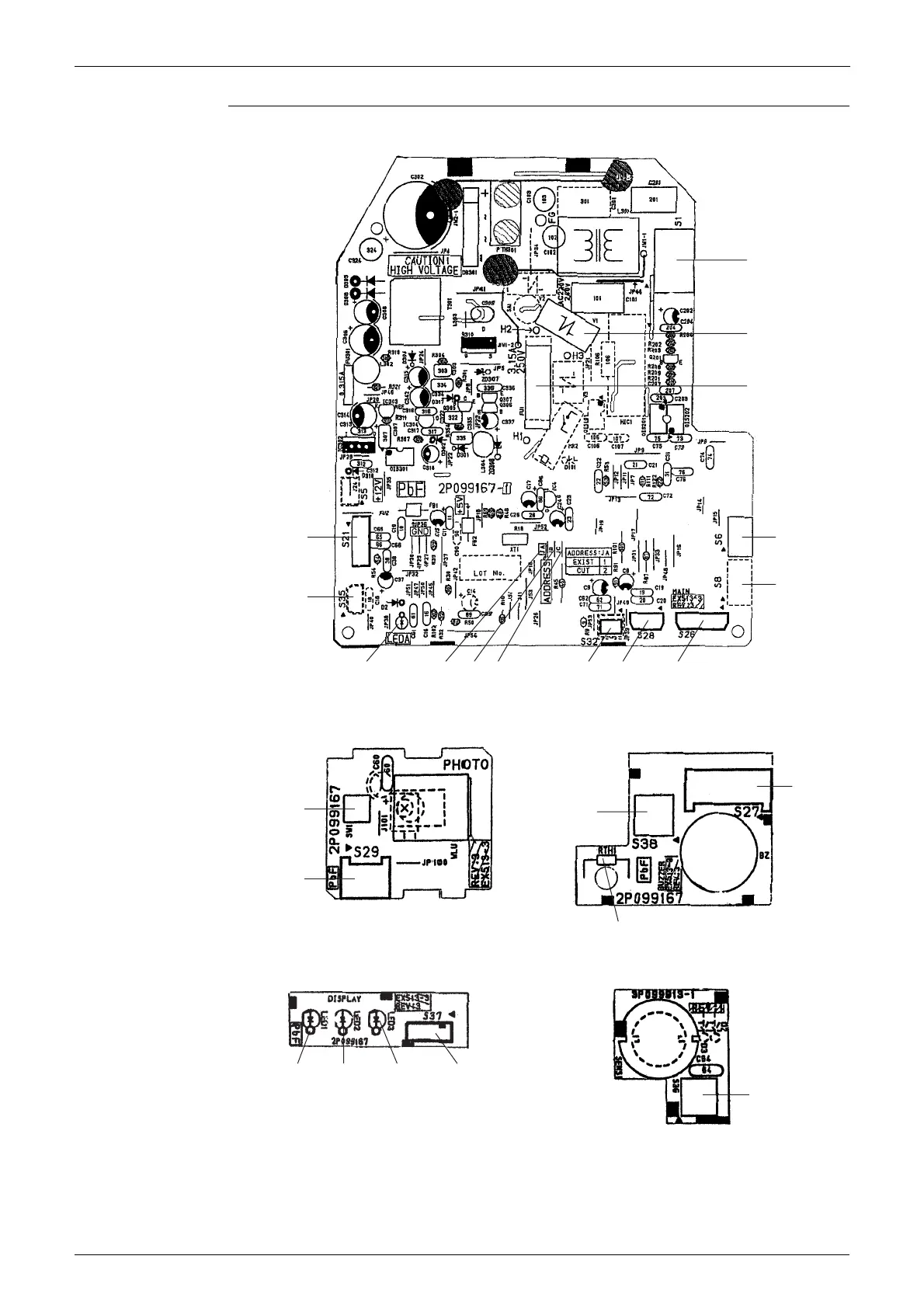

Printed Circuit Board Connector Wiring Diagram SiENBE12-713
44 Printed Circuit Board Connector Wiring Diagram
PCB Detail PCB(1): Control PCB (indoor unit)
PCB(2): Signal Receiver PCB PCB(3): Buzzer PCB
PCB(4): Display PCB PCB(5): Intelligent Eye sensor PCB
S1
V1
FU1
S6
S8
S26
(R2860)
S28S32JCJBJALED A
S21
S35
SW1
S29
(R2861)
(R2862)
RTH1
S38
S27
LED1 LED2 LED3S37
(R2863)
S36
(R2864)
