Daikin FTKS35DVM Service Manual

Si041251EC Fan Motor
Removal Procedure 15
8. Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

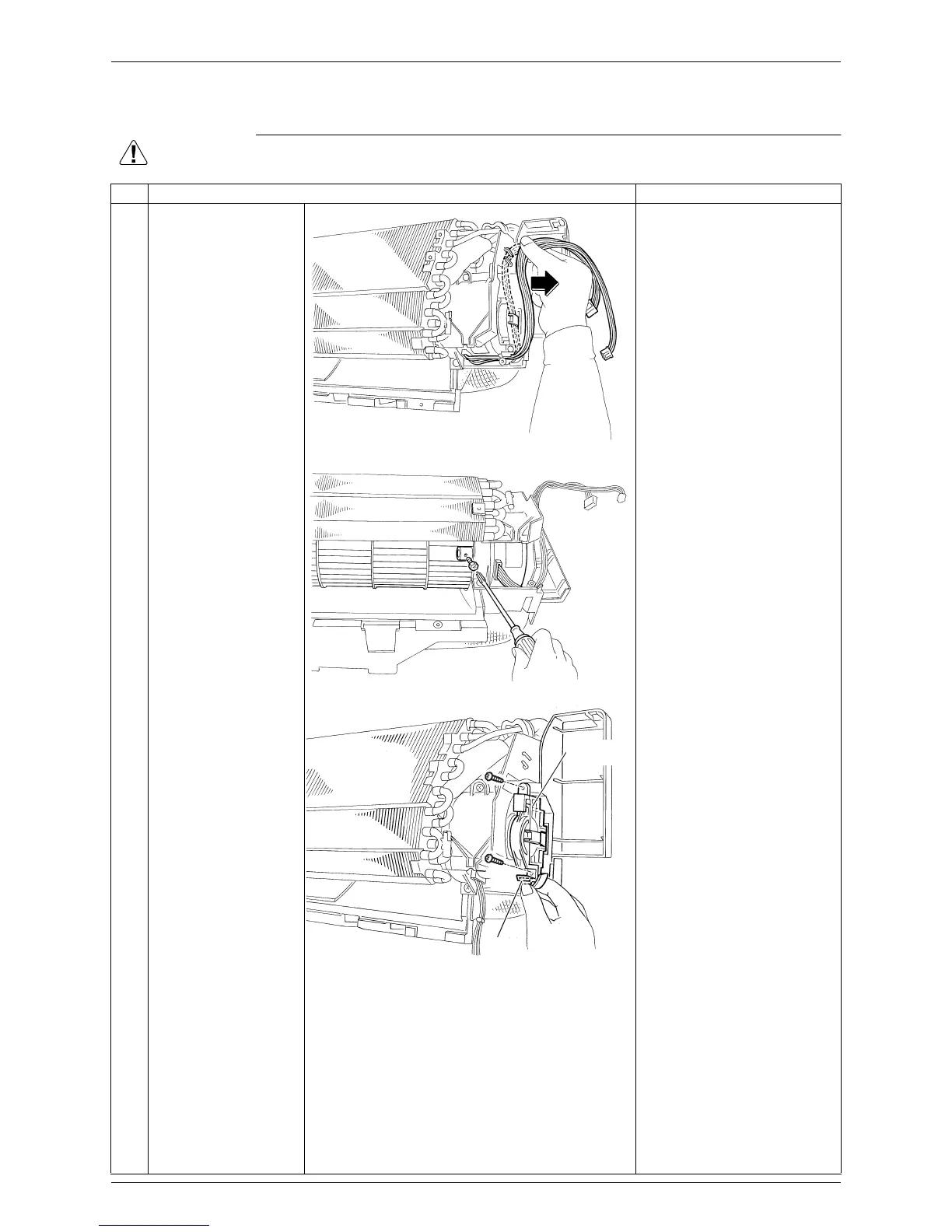

Step Procedure Points
1
Release the fan motor
lead wires from the
hooks.
2
Remove the screw of
the fan rotor.
3
4
Remove the 2 screws
of the fan motor fixing
plate.
Unfasten the hook (a)
of the fan motor fixing
plate.
(R4389)
(R4390)
Hook (a)
(R20215)
Fan motor
fixing plate
