Daikin FTKS50FVMV - Page 13

Si041254EE PCBs

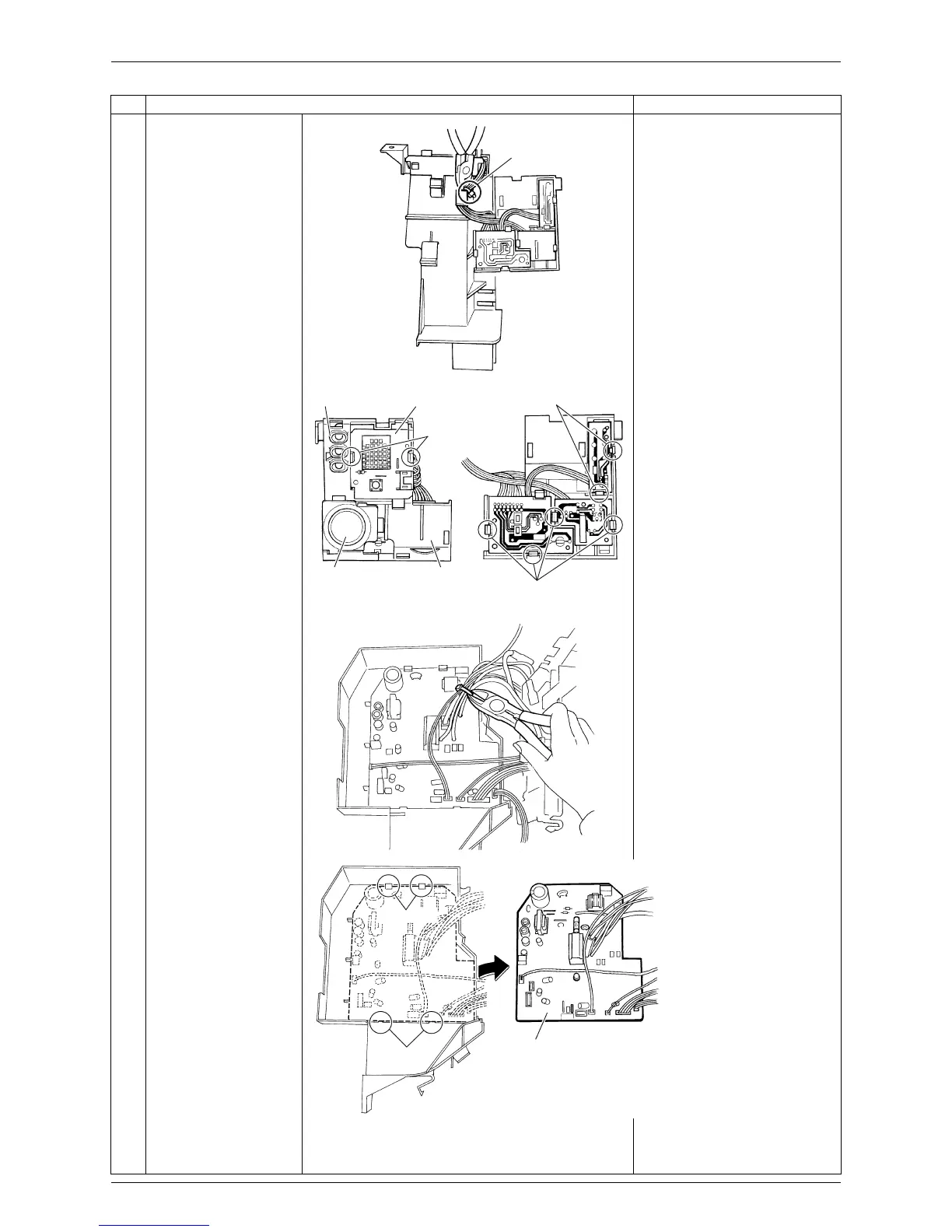

Removal Procedure 11
4 Cut the clamp.
5
6
Unfasten the 8 hooks
and remove each PCB.
Disconnect every
connector from each
PCB.

Some models do not have
INTELLIGENT EYE sensor
PCB.
7 Cut the clamp.
8 Unfasten the 2 hooks
on the lower side, and
then the 2 hooks on the
upper side.
Remove the control
PCB.
Step Procedure Points
(R23374)
Clamp
INTELLIGENT EYE
sensor PCB
Display PCB Signal receiver PCB
Buzzer PCB
Hook
Hook
Hook
(R23375)
(R17913)
Upper hook
Lower hook
Control PCB
(R17912)
