10 Removal Procedure
7. PCBs
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

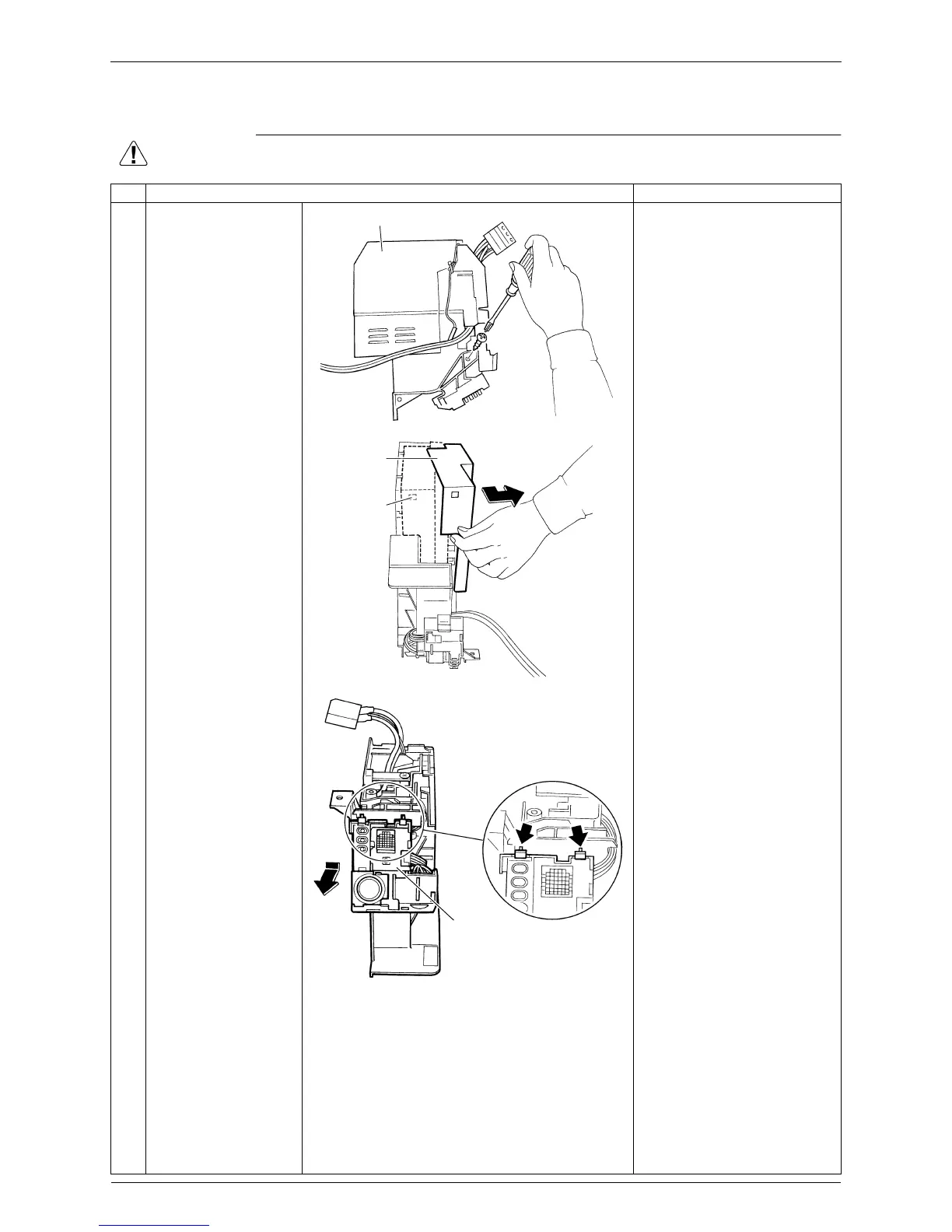

Step Procedure Points
1 Remove the screw on
the electrical box.
2 Unfasten the hook and
remove the shield plate.

The shield plate also has 2
hooks on the upper side (at
the back).
3 Unfasten the 2 hooks
on the top and remove
the signal receiver unit.
(R17747)
Electrical box
Shield
plate
Hook
(R13224)
(R2781)
Signal receiver
unit
