Daikin FTKS50FVMV - Horizontal Blades

Si041254EE Horizontal Blades
Removal Procedure 5

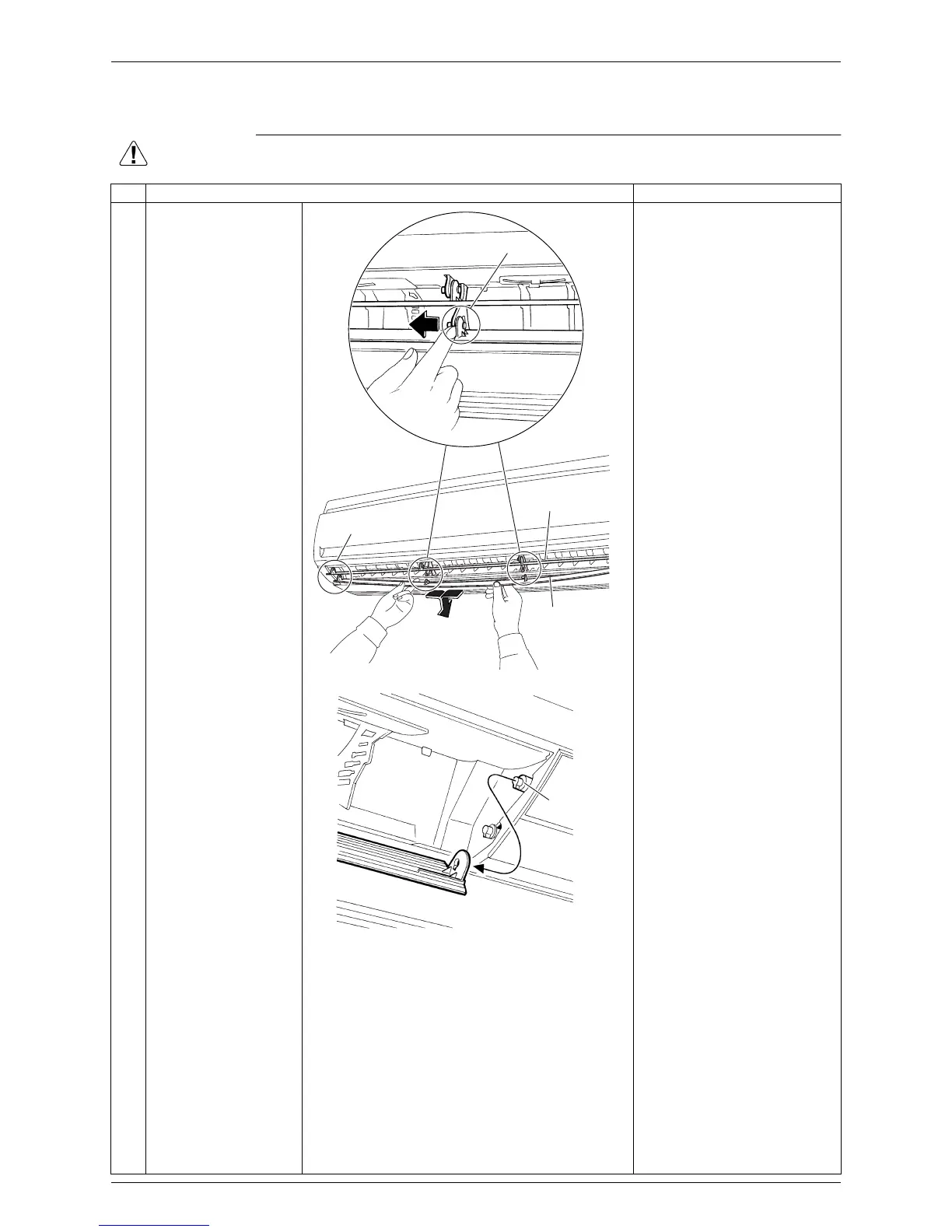

4. Horizontal Blades
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
2
Bend the horizontal
blade (lower) slightly
and release the 2
center shafts.
Release the left shaft.

When reassembling, mount
the large horizontal blade to
the upper position and the
small horizontal blade to the
lower position.
3
4
Slide the horizontal
blade (lower) to the left
and release the right
shaft.
Remove the horizontal
blade (upper) in the
same way.

Installation procedure
1. Fit the horizontal blade to the
right shaft first. Make sure to
rotate the horizontal blade so
the shaft fits correctly.
2. Fit the horizontal blade to the
center and left shafts.
Left shaft
(R21152)
Center shaft
Horizontal blade
(upper)
Horizontal blade
(lower)
Right shaft
(R2766)
