Daikin FTKS50FVMV - Non-Auto-swing Vertical Blade ASSYS

Si041254EE Vertical Blade ASSYs
Removal Procedure 7
2. For models without auto-
swing (right and left)

Each vertical blade ASSY
has 5 or 6 fins which can not
be replaced individually.

The vertical blade ASSY is
not marked for difference
between right and left.

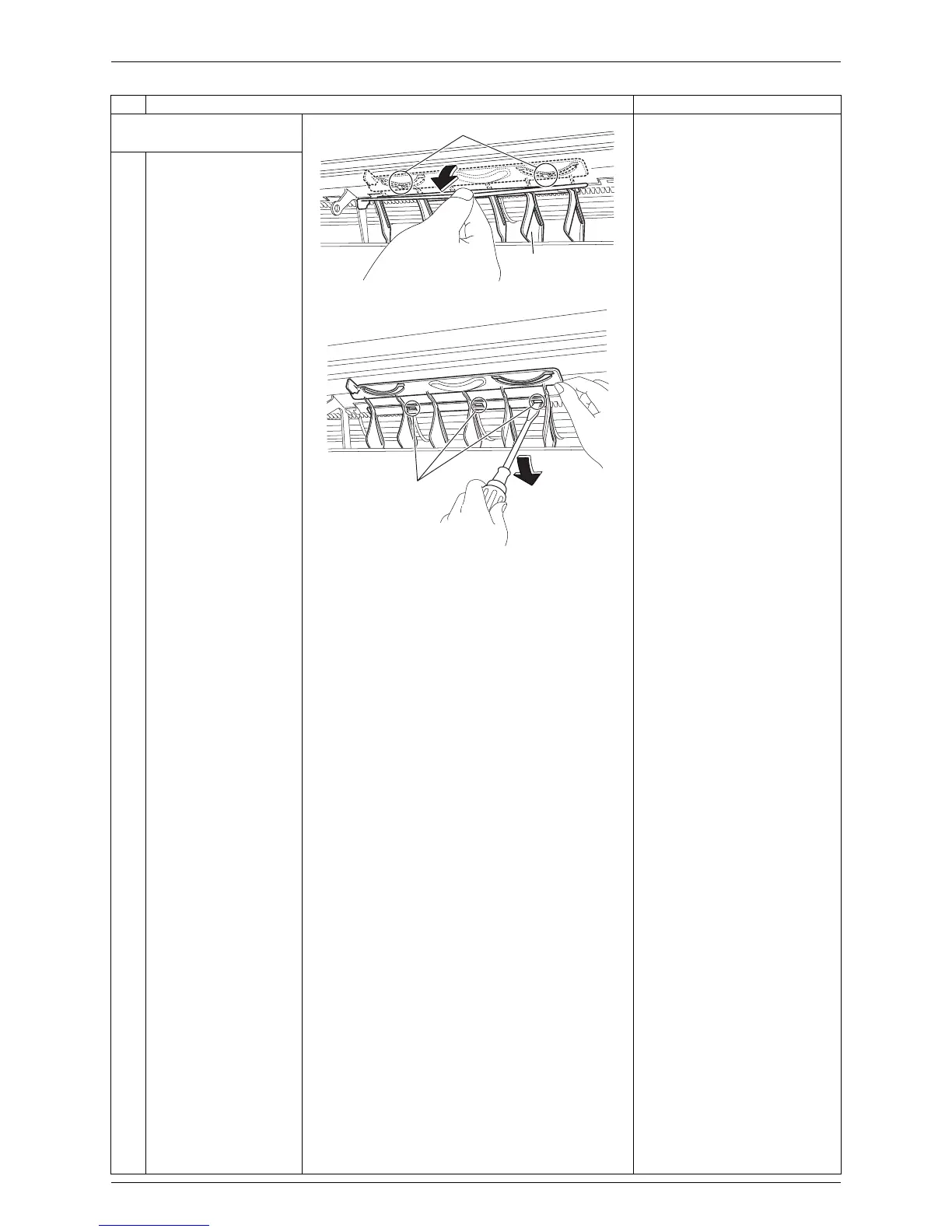

1 Unfasten the hooks at
the upper 2 positions.
2
3
4
Unfasten the 3 hooks of
the vertical blade ASSY
by pressing them with a
flat screwdriver.
Remove the vertical
blade ASSY.
Remove the other
vertical blade ASSY in
the same way.
Step Procedure Points
(R18194)
Vertical blade ASSY
Hook
(R8022)
Hook
