Front Grille Si041255EH
4 Removal Procedure

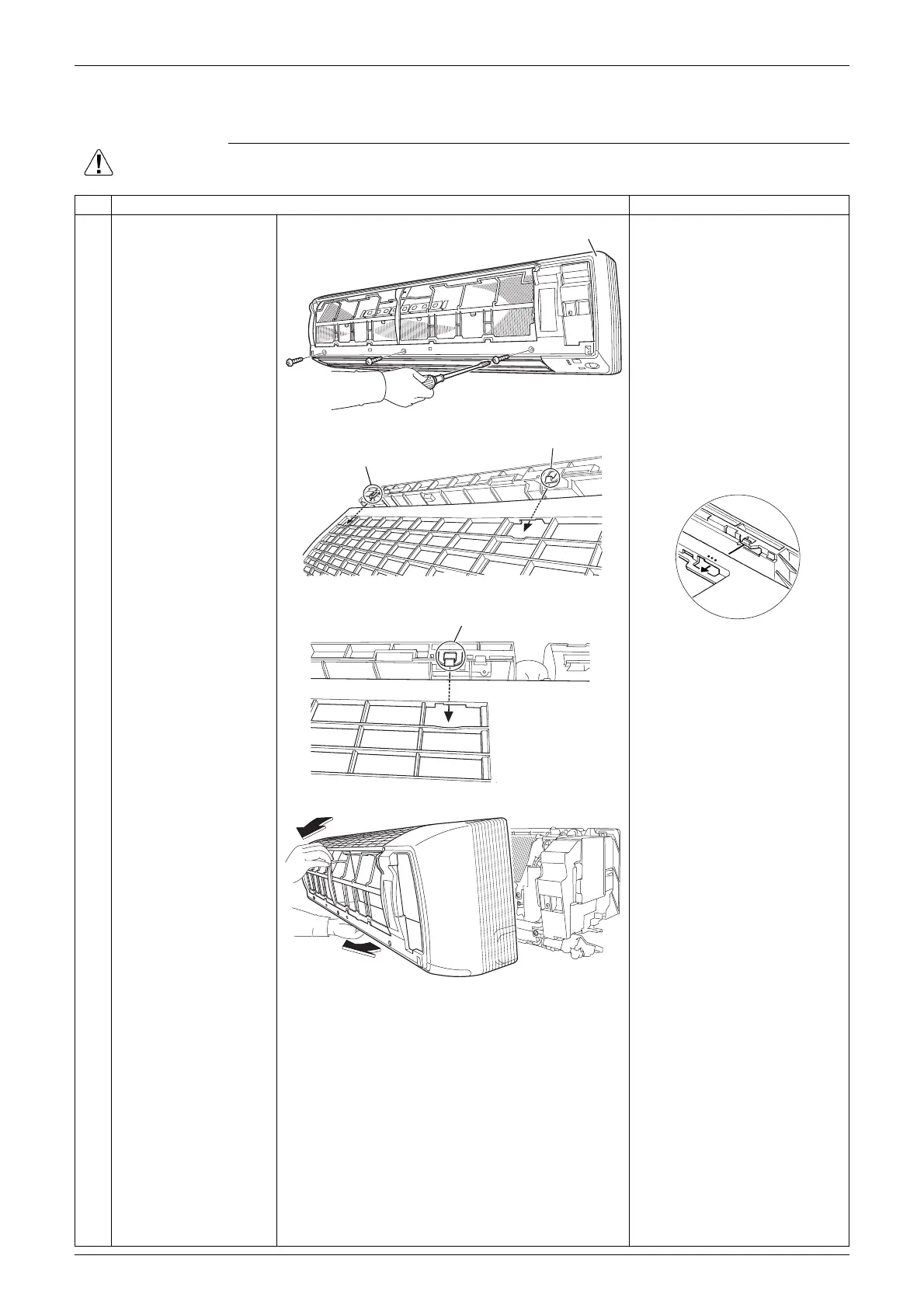

3. Front Grille
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the 3 screws
of the front grille.
2 Unfasten the 3 hooks
on the top of the front
grille.
The convex marks (...) on
the front panel indicate the
position of the hooks.
3 Pull out the upper part
of the front grille, lift up
the lower part, and then
remove the front grille.
When reassembling, make
sure that the 3 hooks are
fastened.
(R11330)
Front grille
(R17673)
Left hook
Center hook
Right hook
(R17674)
(R12715)
(R11334)
To Next Page
