Si041254EE Electrical Box
Removal Procedure 9

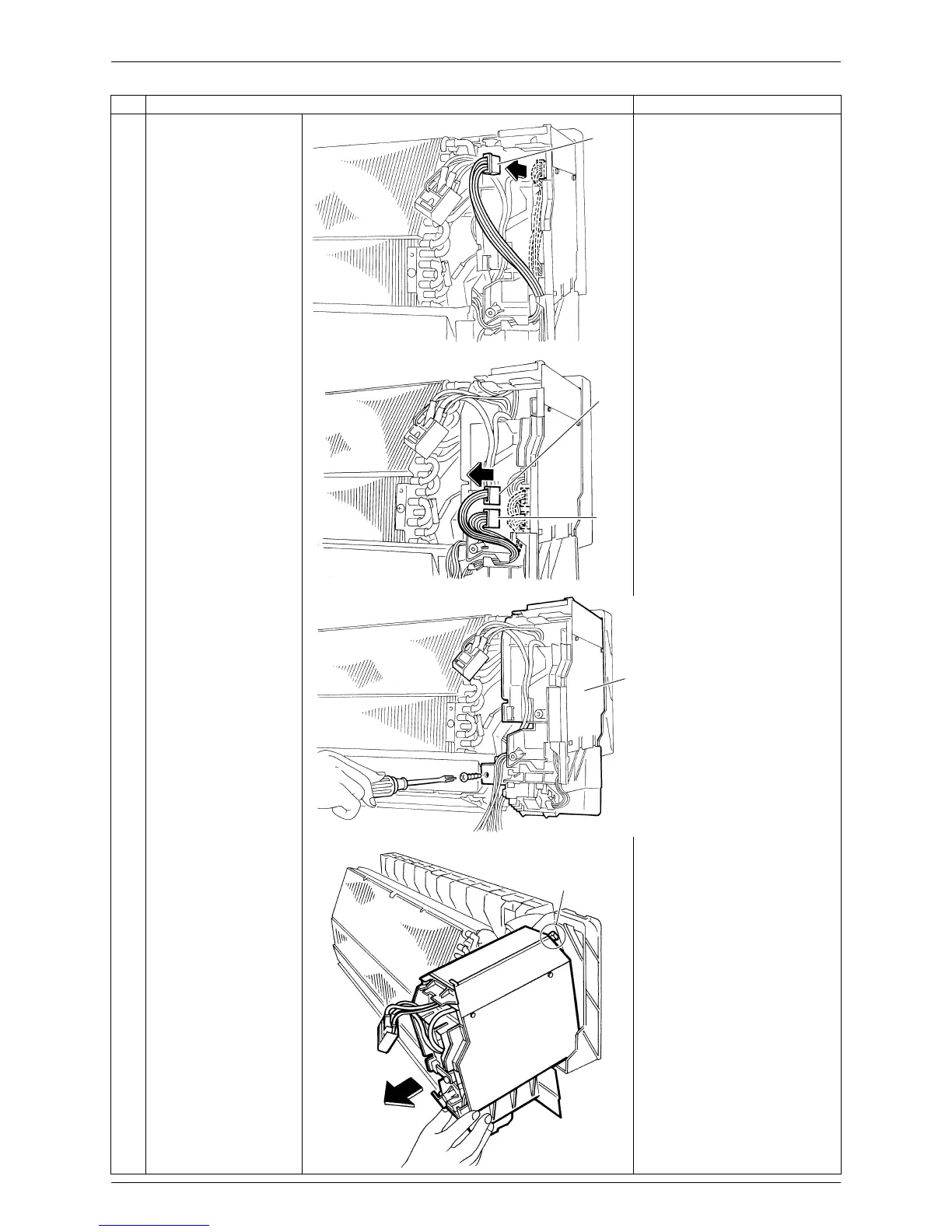

7 Disconnect the
connector [S1].
[S1]: fan motor
8 Disconnect the
connectors [S6] and
[S8].
[S6]: swing motor for horizontal
blades
[S8]: swing motor for vertical
blades

Some models do not have
the harness for [S8].
9 Remove the screw of
the electrical box.
10
11
Unfasten the hook at
the back of the
electrical box.
Pull out the electrical
box.

When reassembling, make
sure that the hook at the
back of the electrical box is
fastened.
Step Procedure Points
[S1]
(R2774)
(R2775)
[S6]
[S8]
Electrical box
(R3205)
(R17665)
Hook
