Electrical Box Si041254EE
8 Removal Procedure
6. Electrical Box
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

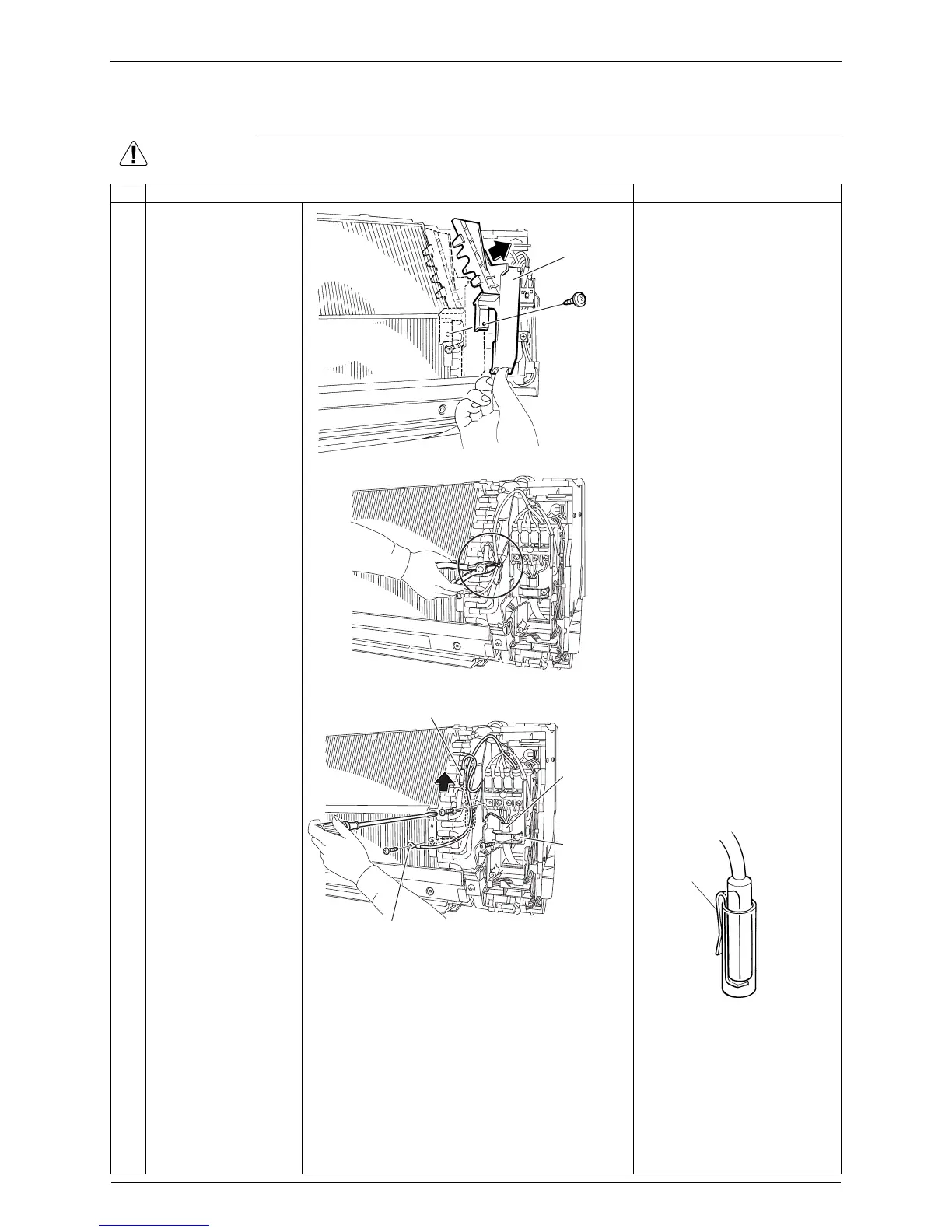

Step Procedure Points
1 Remove the screw,
then the drip proof
plate.
2 Cut the clamp.
3
4
5
6
Pull out the indoor heat
exchanger thermistor.
Remove the screw of
the earth/ground wire.
Remove the screw of
the wire fixture.
Remove the 4 screws
of the connecting wires.
The position of the indoor
heat exchanger thermistor
varies depending on the
model.
Be careful not to lose the clip
of the thermistor.
Drip proof plate
(R2771)
(R6707)
Indoor heat exchanger thermistor
Earth/ground wire
(R19204)
Connecting
wire
Wire fixture
Clip
(R11234)
