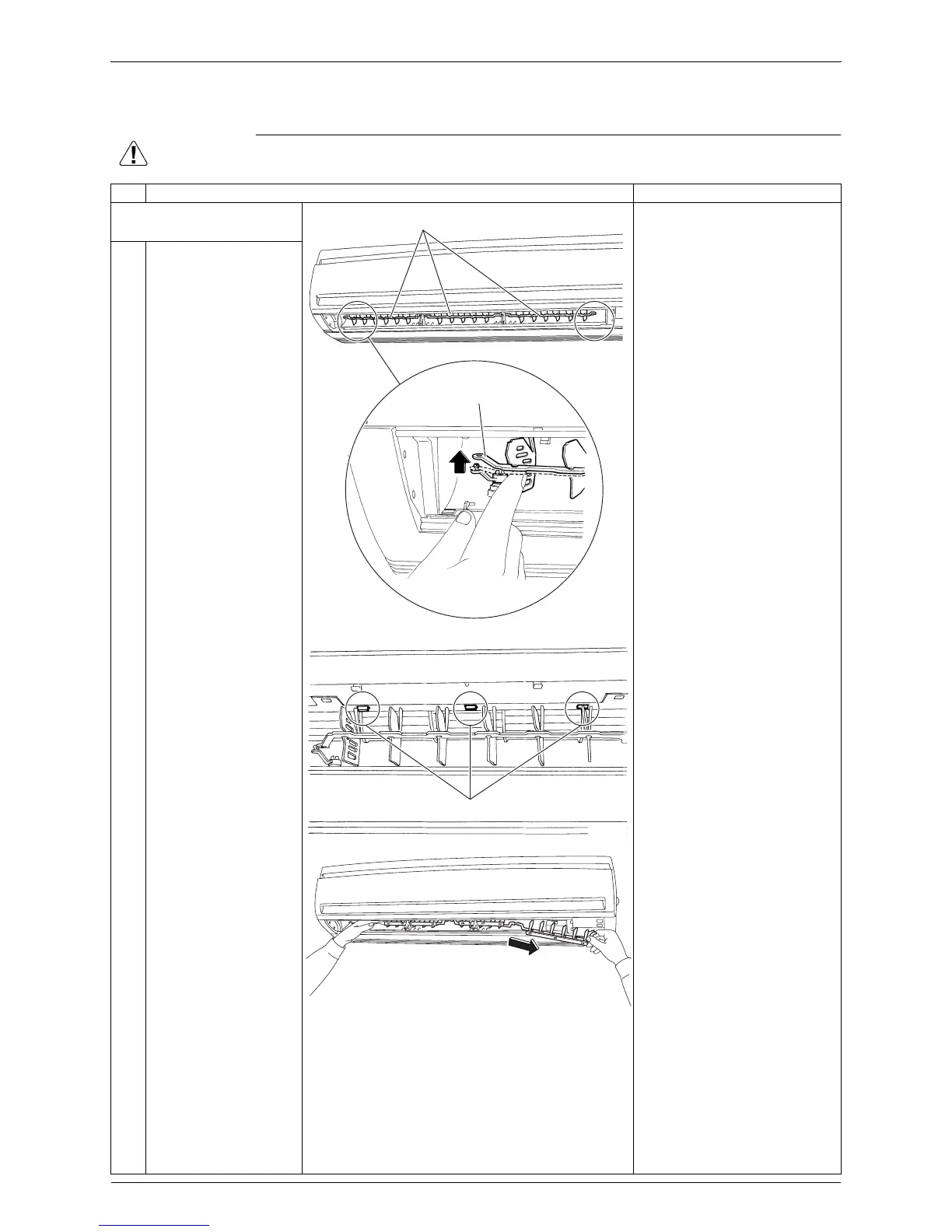

Vertical Blade ASSYs Si041254EE
6 Removal Procedure
5. Vertical Blade ASSYs
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. For auto-swing (right and
left) models
Some models have fan
guards. Remove the fan
guards beforehand.
The unit has 3 sets of
vertical blade ASSYs linked
to one another with interlock
rods.
1 Release the right and
left shafts.
2 Unfasten the 3 hooks
for each set of vertical
blade ASSY (9 hooks).
3 Pull the vertical blade
ASSYs to the right and
remove them.
Vertical blade ASSY
(R21153)
Interlock rod
Hook
(R2768)
(R6706)
To Next Page
