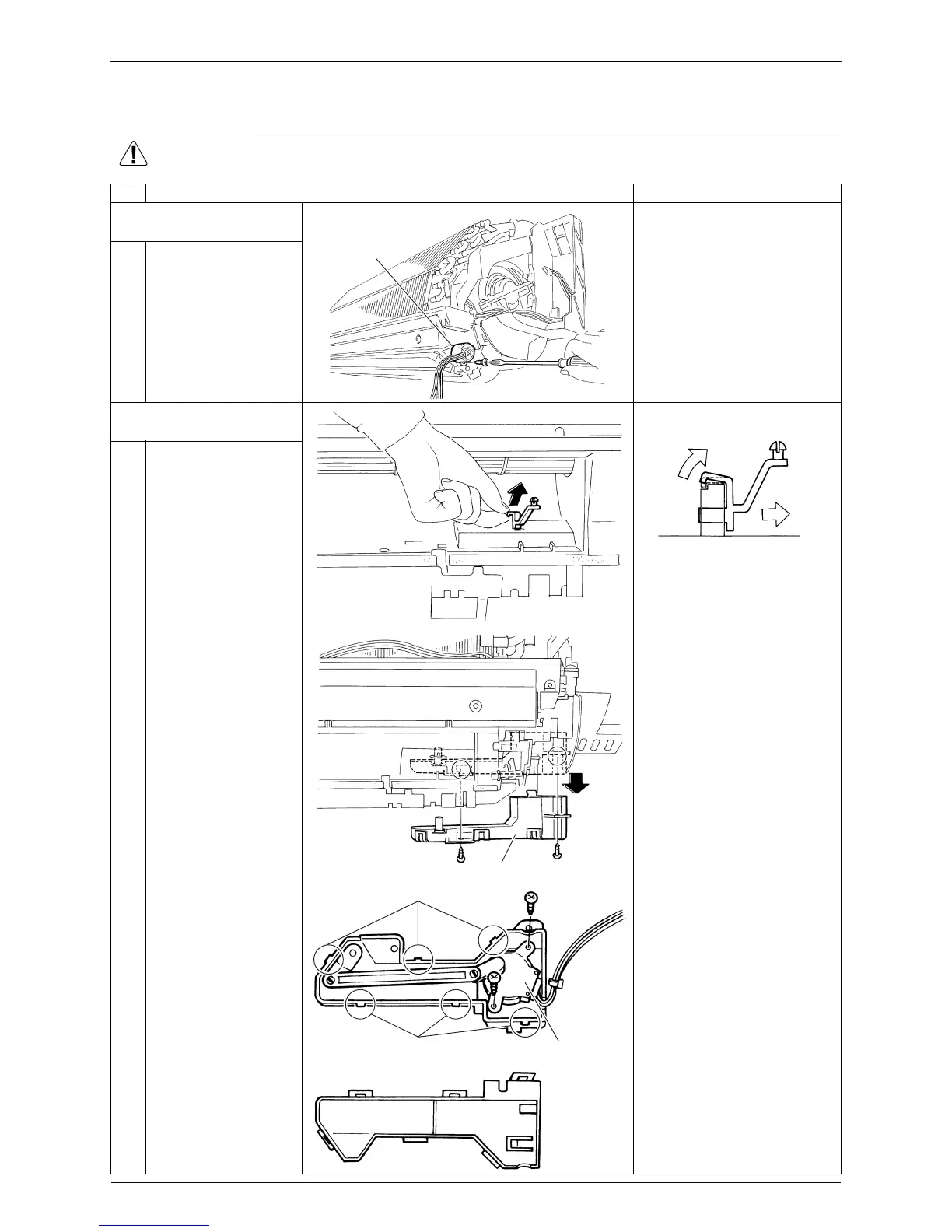

Daikin FTKS60KVM User Manual

Swing Motors Si041254EE
12 Removal Procedure
8. Swing Motors
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the swing motor
for horizontal blades.
1
2
Remove the screw.
Remove the swing
motor.
2. Remove the swing motor
for vertical blades.

Remove the swing shaft.
1 Remove the swing shaft
on the right side.
2 Remove the 2 screws
and detach the swing
motor assembly.

Some models do not have
the swing motor assembly.
3 Remove the 2 screws
and remove the swing
motor.

The swing motor assembly
has 6 hooks.
(R17666)
Swing motor
(R2789)
(1) Unfasten the hook.
(2) Pull out the swing shaft.
(R12896)
Swing motor assembly
(R20210)
Hook
Hook
Swing motor
(
R2792
)
