Si041254EE Front Panel
Removal Procedure 3
2. Front Panel
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

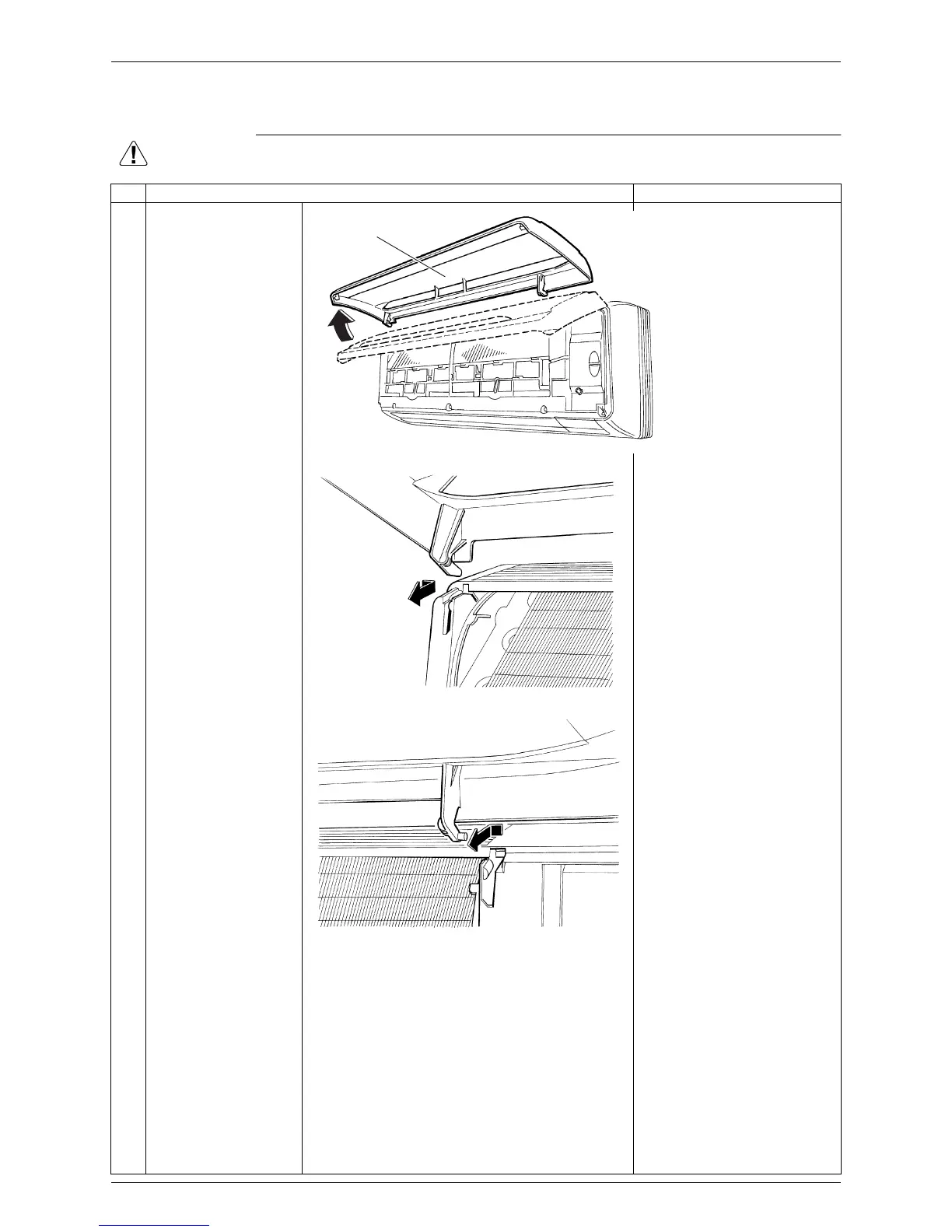

Step Procedure Points
1 Open the front panel
over the position where
it stops.
2 Slide the front panel to
the right and release
the left shaft.
When reassembling the front
panel, fit the right and left
shafts one by one into the
grooves and fully push them
into position.
3
4
Release the right shaft
in the same way.
Remove the front panel.
(R23428)
Front panel
(R2754)
(R2755)
To Next Page
