Air Filters Si041254EE
2 Removal Procedure
1. Air Filters
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
2
3
Open the front panel.
Release each air filter
from the 2 hooks of the
front panel.
Remove the air filter by
pulling out downward.
The air filter is not marked
for difference between the
right and left sides.
Insert the air filter with the
“FRONT” mark faced up.
When reassembling, insert
the air filter along the guides.
Be sure to fasten the hooks
when installing the air filter.
4 Remove the Titanium
apatite photocatalytic
air-purifying filter, if
available, from the 5
hooks.
The right and left filters are
interchangeable.
Some models have no
Titanium apatite
photocatalytic air-purifying
filter.

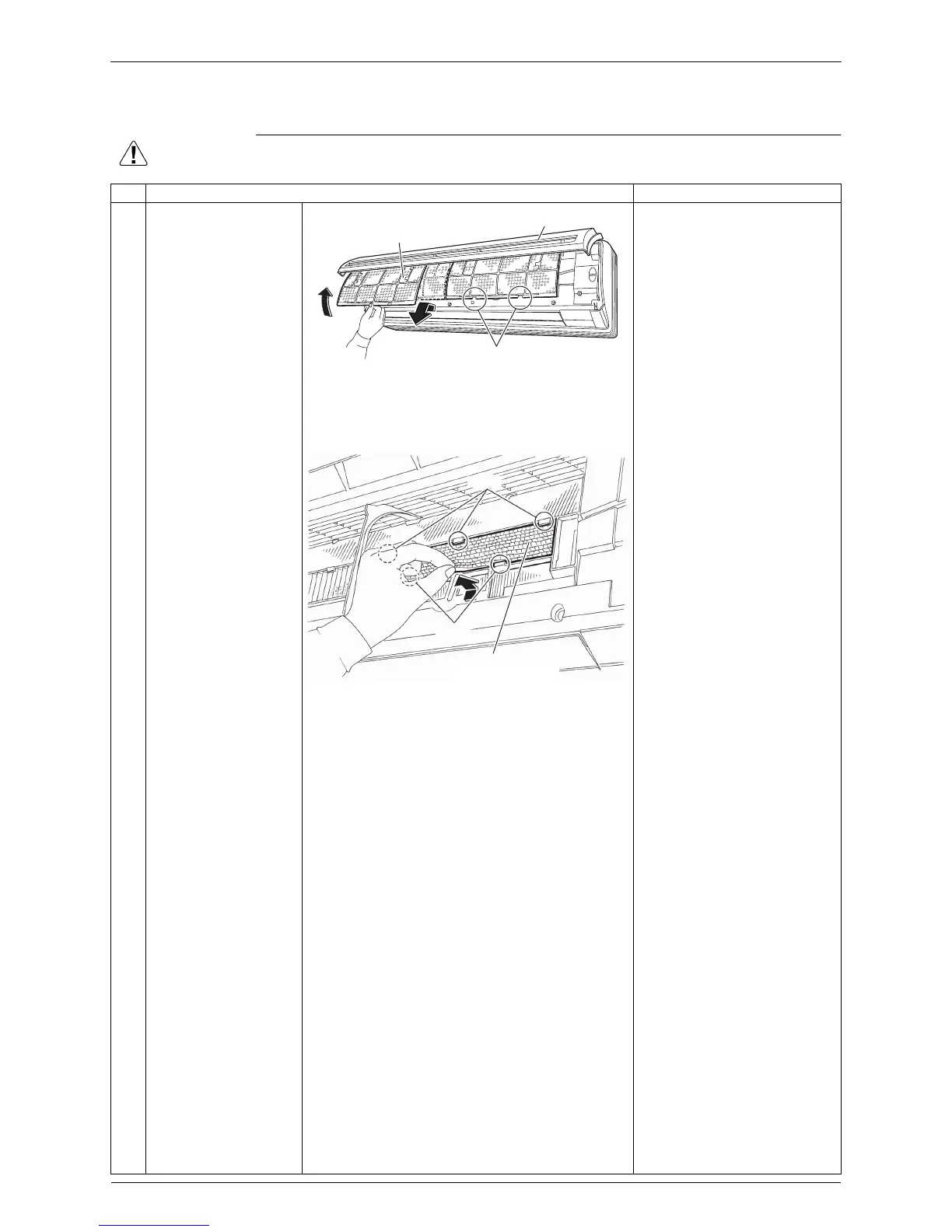

Air filter
Hook
(R21150)
Front panel
Hook
Hook
(R23427)
Titanium apatite
photocatalytic
air-purifying filter
