Daikin FTXG20LV1BW Installation Manual

■English 4
English

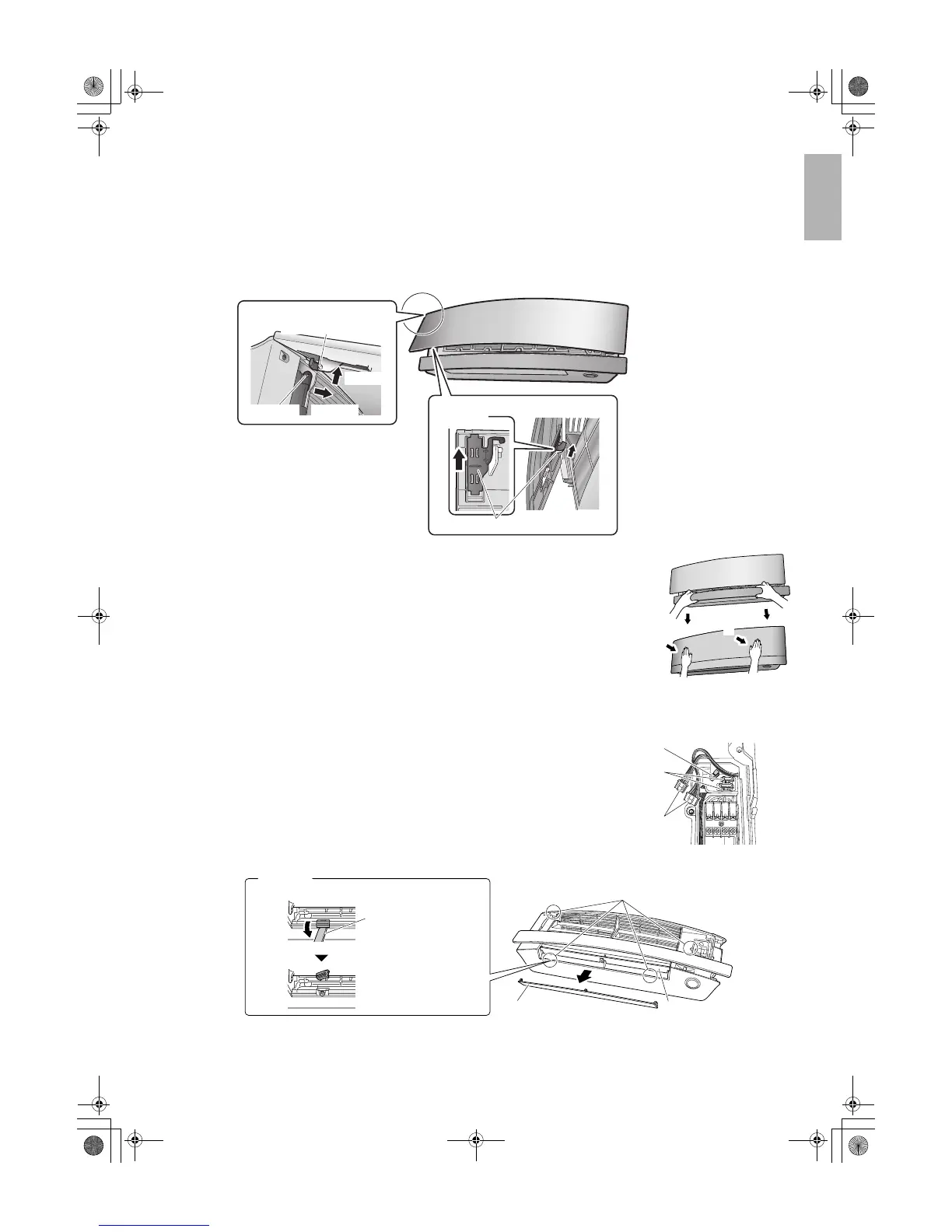

Installation Tips
1.
Removing and installing the upper front panel
2.
Removing and installing the front grille
• Removal method
1) Remove the upper front panel and air filters.
2) Remove the service lid. (Refer to the opening method on page 3.)
3) Disconnect the wire harnesses from the wire clamp, and remove the wire
harnesses from the connectors.
4) Push the lower front panel up until it stops.
5) Dismount the flap (large).
6) Open the 2 screw covers, and remove 4 screws from the front grille.
(The screw covers are not factory-mounted.)
■ Removal method
1) Open the upper front panel.
2) Slide the front panel locks on the back of the front panel upward to release the locks (left and right sides).
3) Remove the panel shafts on both sides from the shaft holes, and dismount the upper front panel.
■ Installation method
1) Slide the front panel locks on the back of the front panel upward to release the
locks (left and right sides).
2) Insert the panel shafts on both sides of the upper front panel into the shaft holes.
3) Slide the front panel locks on each side downward to lock them.
4) Lower the lower front panel to the original position.
5) Close the front panel slowly on both hands.
6) Press the upper front panel at both sides.
6)
6)
Back of the upper front panel
Front panel shaft
3-1) SlideShaft hole
3-2) Pull
Back of the upper front panel
2) Slide
Front panel lock
The upper front panel does not
open any more than as shown in
the figure. Do not force it open
any further than that.
4)
4)
Wire clamp
Connectors
Wire harnesses
Flap (large)
Flap (small)
4 screws
• Opening method
Screw cover
Use a long flat plate such as a
ruler and wrap it in a cloth so
as not to damage the product.
Downward
01_EN_3P358178-1A.fm Page 4 Monday, December 16, 2013 3:59 PM
