13.8 <DST301BA61> Schedule Timer Controller
Enables you to connect and control weekly schedule for up to 128 indoor units all together.
13.8.1 Specifications / Dimensions
Simultaneous control of up to 128 indoor units is managed by a
week schedule.
The start and stop time for twice a day can be set for the week
in increments of 1 minute.
By combining with a central remote controller and schedule
timer, you can construct a system that matches the size and use
of the building.
If used together with a central remote controller, you can set up
to 8 schedule patterns which can be distributed among zones as
desired using the central remote controller.
Is equipped with a compensation function for power failure up to
48 hours.
Features thin design of a mere 16 mm in thickness. (Uses JIS
recessed box for 2.)
Wiring can be up to 1 km in length. Applicable wiring methods
include bus and star in addition to crossover type.
Can be used in combination with other D-BACS equipment.
SPECIFICATIONS
Specifications

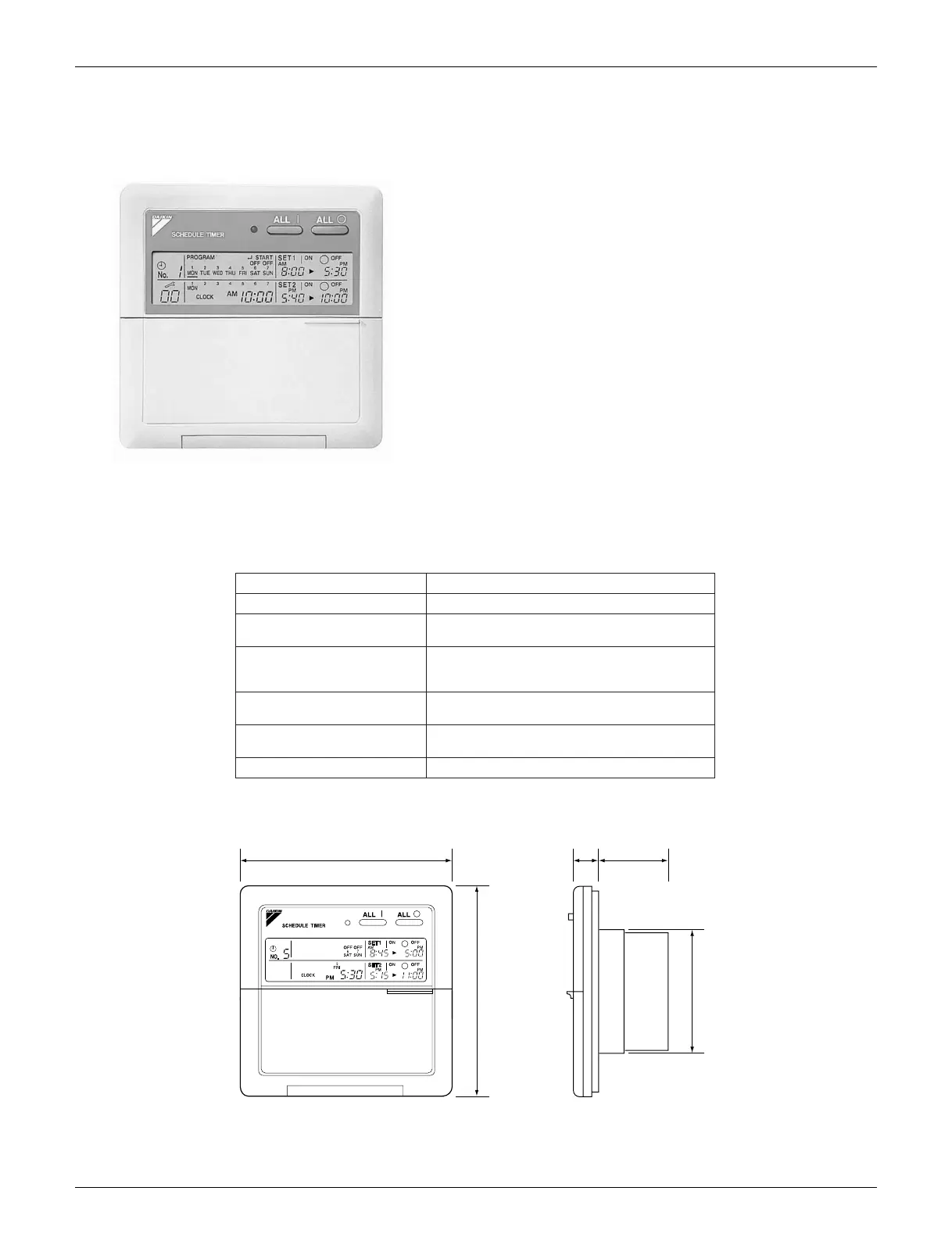

Outline drawings
Specifications and appearance subject to change without notice.
Display of time 12-hour digital display
Clock cycle type Quartz clock type
Clock accuracy
Within ±30 sec./month (environmental temperature from
15˚C to 35˚C)
Timer programming
Two pairs of programmed time for both system start and
system off can be set in units of minute for each day of
the week
Power failure compensation time
Approximately 48 hours for a single occurrence of power
failure (clock with No. of programmed time)
Size
120 (W) × 120 (H) × 53 (D) mm
(Width/Height/Depth)
Weight Approximately 210g
120 16 37
71
120
