EDUS041820 Optional Accessories

Split Type Air Conditioners FTXR-T Series 93

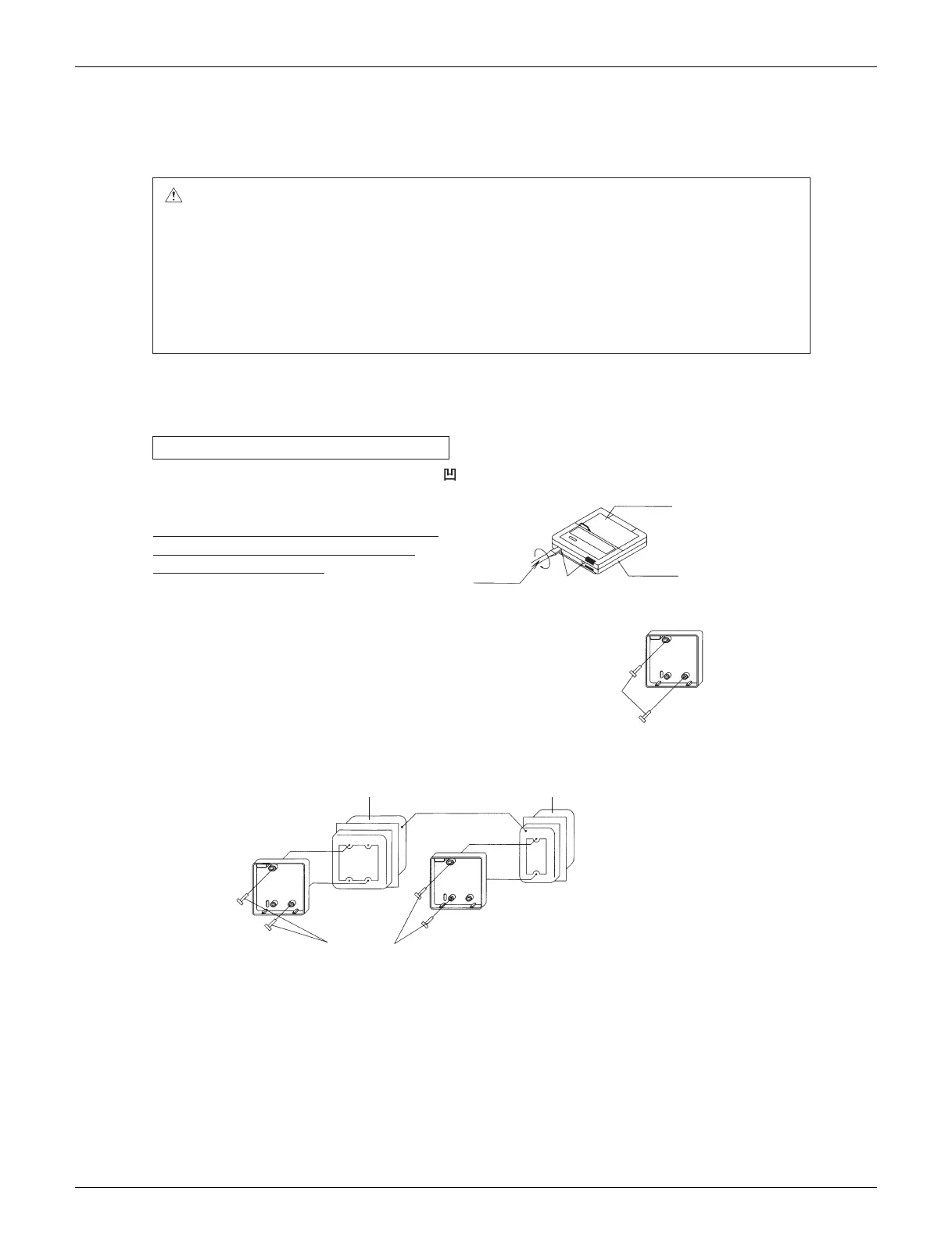

13.2 <BRC944B2> Wired Remote Controller

13.2.1 Installation Manual

Switch box

(Field supplied parts)

Machine screws (M4 x 16)

For the field supplied switch box,

use optional accessories

KJB1111A or KJB2121A.

KJB2121A

CAUTION

1. No switch box or staple is supplied. Prepare them locally.

2. No remote controller cord is supplied. Prepare the optional remote controller cord 4 wire.

3. Be sure to turn off the power to any apparatus connected prior to mounting.

4. Prior to mounting equipment, touch something metallic such as a doorknob to remove static

electricity from your body. Never touch the remote controller board or the adapter board.

5. Keep the wiring away from any other power source lines to avoid electric noise (external noise).

6. Select a flat surface, wherever possible, to mount the remote controller. To prevent deformation

of the cases, do not overtighten the mounting screws.

Insert a bladed screwdriver into the concave ( ) in the remote controller lower case to remove the

upper case assembly (two locations).

(1) Exposed mounting

Secure the remote controller lower case with the

two supplied wood screws.

(2) Embedded mounting

Secure the remote controller lower case with the

two supplied machine screws.

The remote controller board is located on the

upper case. Take care not to scratch the

board with the screwdriver.

1. Securing the remote controller lower case

Upper case

Lower case

Screwdriver

To remove, insert and twist

the screwdriver slightly.

Wood screws (φ3.5mm x 16mm)

KJB1111A
