Daikin FTXS80KVMA User Manual

5
■
Outdoor Unit
■
Indoor Unit
1. Air filter
2. Titanium apatite photocatalytic
air-purifying filter
3. Air inlet
4. Front panel
5. Panel tab
6. INTELLIGENT EYE sensor:
• It detects the movements of people and
automatically switches between normal
operation and energy saving operation.
(page 15.)
7. Room temperature sensor:
• It senses the air temperature around the
unit.
8. Display
9. Air outlet
10. Flaps (horizontal blades): (page 12.)
11. Louvers (vertical blades):
• The louvers are inside of the air outlet.
(page 12.)
12. OPERATION lamp (green)
13. TIMER lamp (yellow): (page 20.)
14.
INTELLIGENT EYE lamp (green) : (page 15.)
15. Indoor Unit ON/OFF switch:
• Push this switch once to start operation.
Push once again to stop it.
• The operation mode refer to the following
table.
• This switch is useful when the remote
controller is missing.
16. Signal receiver:
•
It receives signals from the remote controller.
• When the unit receives a signal, you will
hear a beep sound.
• Operation start ........ beep-beep
• Settings changed ..... beep
• Operation stop.......... long beep
■

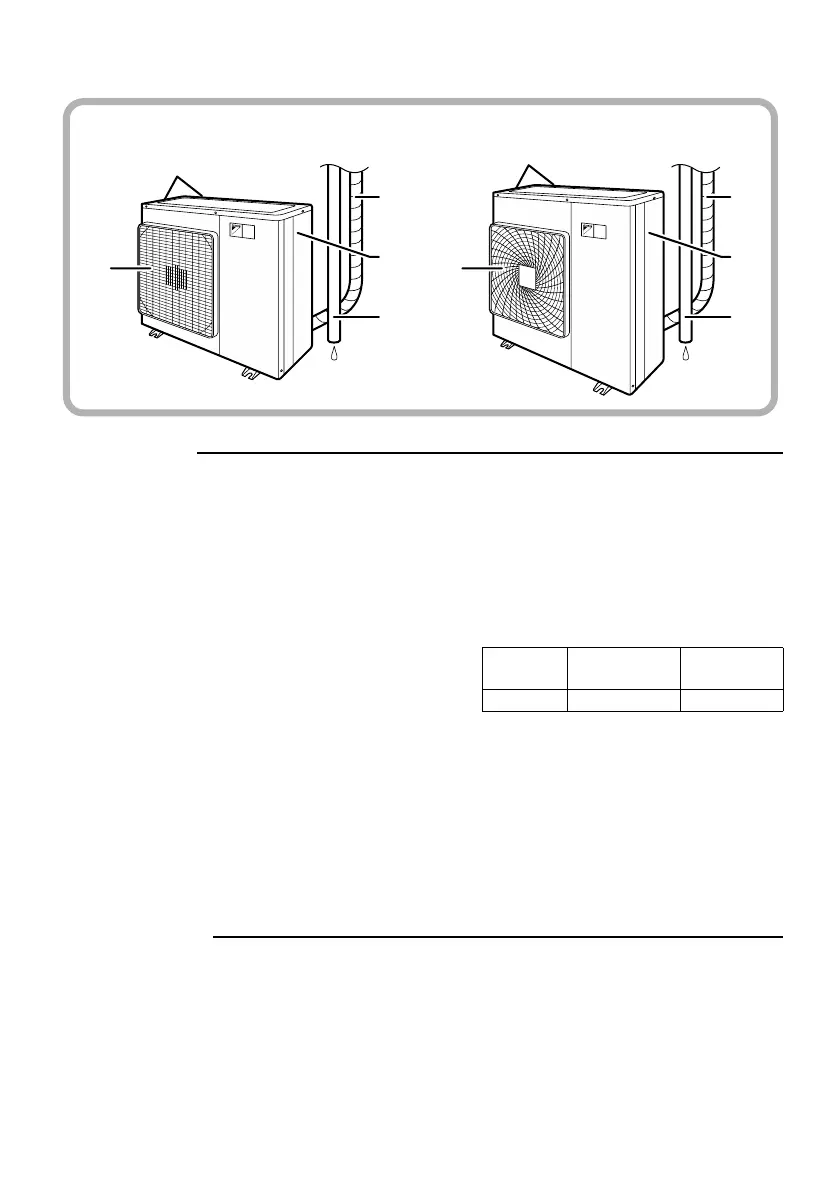

Outdoor Unit
17. Air inlet: (Back and side)
18. Air outlet
19. Refrigerant piping and inter-unit wiring
20. Drain hose
21. Earth terminal:
• It is inside of this cover.
80/90 class
19
20
21
17
18
100 class
19
20
21
17
18
Mode
Temperature
setting
Airflow rate
AUTO
25°C
AUTO
01_EN_3P266961-1.fm Page 5 Tuesday, June 8, 2010 2:36 PM
