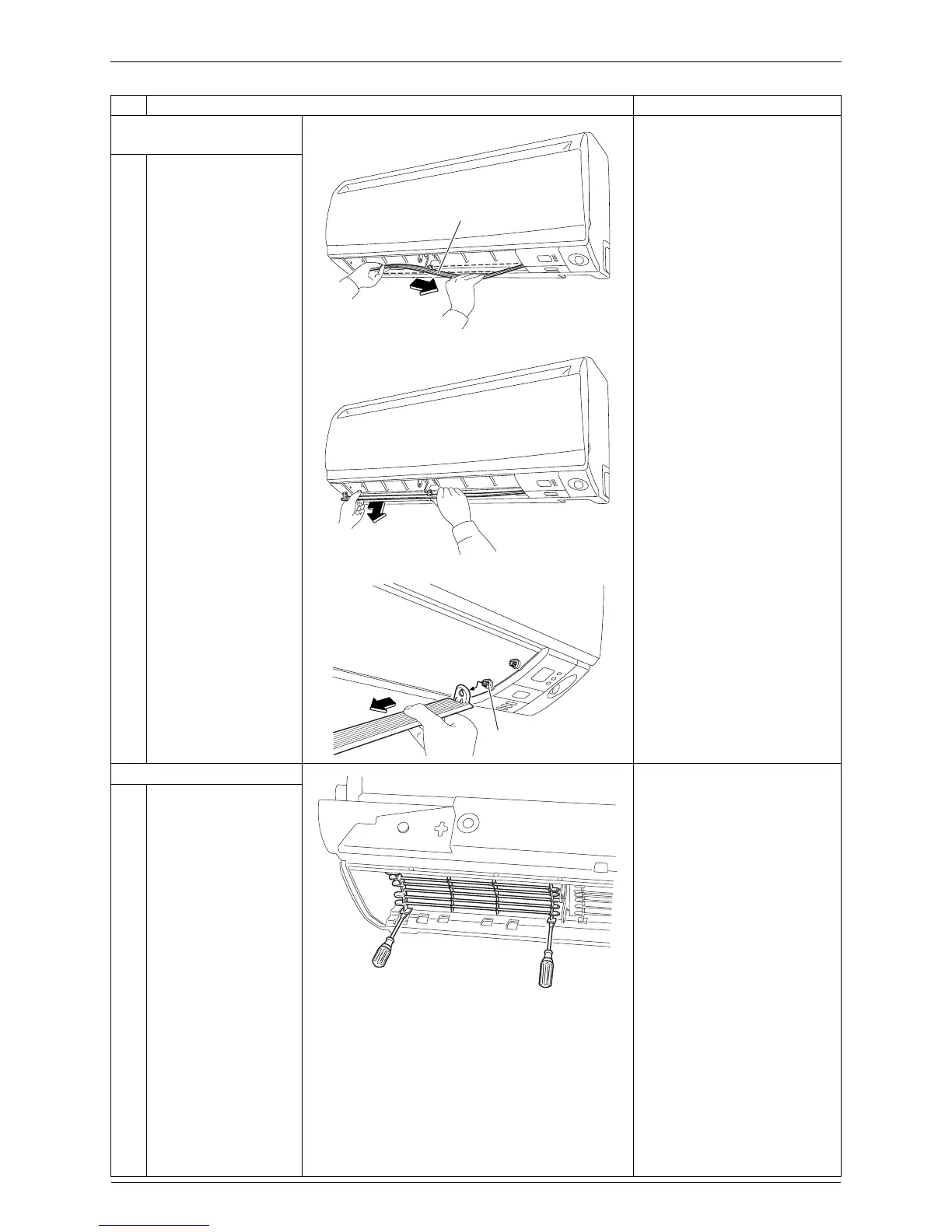

Removal of Horizontal Blades / Vertical Blades Si041137

8 Removal Procedure

2. Remove the horizontal

blade (small).

Unfasten the center

shaft while bending the

horizontal blade (small)

slightly.

Unfasten the left shaft.

Unfasten the right shaft.



There is a key alignment at

the right shaft. When

reassembling, insert the right

shaft first while turning.



After inserting the right shaft,

first mount the horizontal

blade to the center shaft,

and then to the left shaft.

3. Remove the fan guard.



Some models have no fan

guard.

Unfasten the hooks at

the lower part of the fan

guard with a flat

screwdriver.

Step

Procedure Points

(R13493)

Horizontal blade (small)

(R13494)

(R13495)

Key alignment

(R13751)
