Removal of Front Panel Si041137
4 Removal Procedure

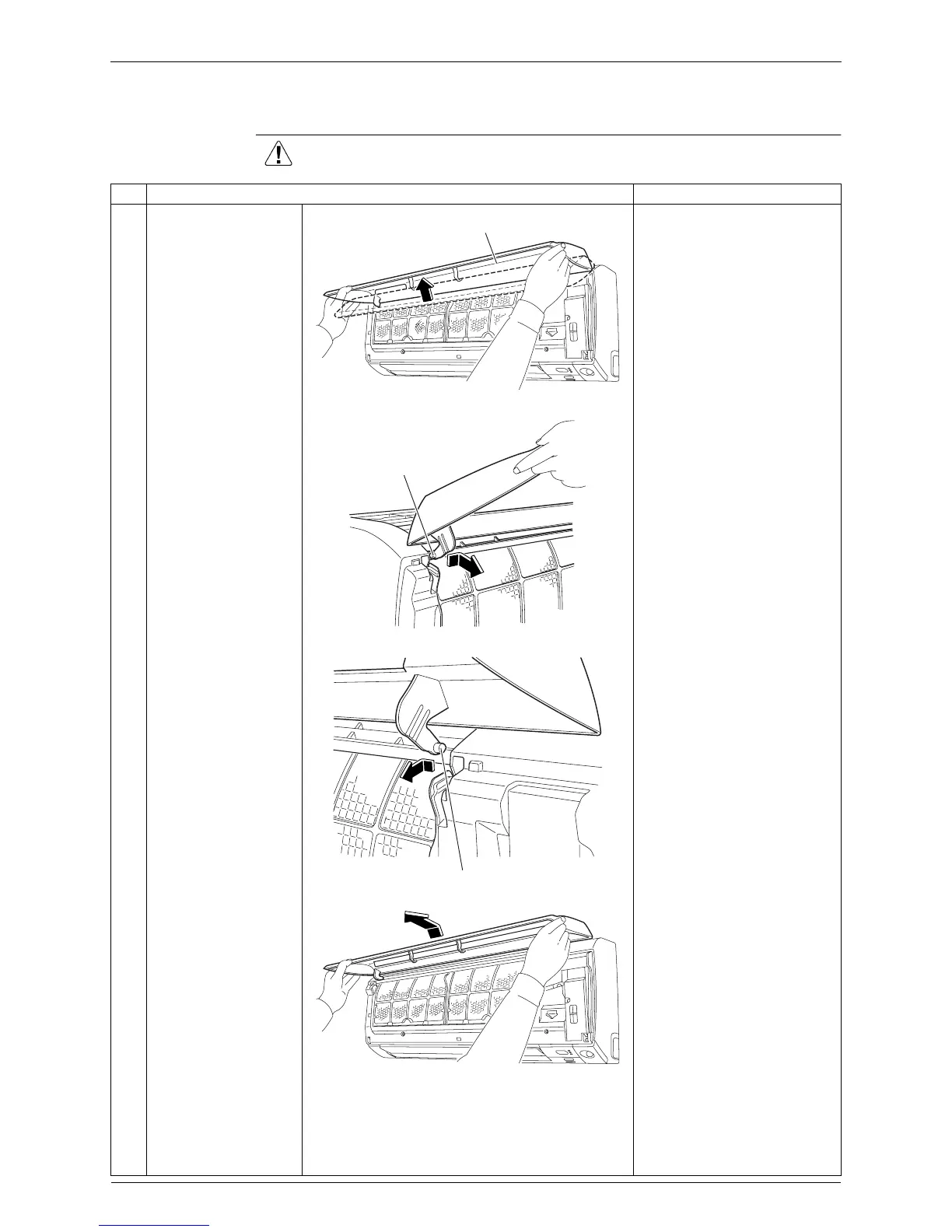

2. Removal of Front Panel
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Open the front panel
over the position where
it stops.
2
Slide the left rotary
shaft to the right and
release it.
î
When reassembling the front
panel, fit the right and left
rotary shafts one by one into
the grooves and fully push
them into position.
3
Slide the right rotary
shaft to the left and
release it.
4
Remove the front
panel.
(R7906)
Front panel
(R7907)
Rotary shaft
(R7909)
Rotary shaft
(R7910)
To Next Page
