Removal of PCBs (Pattern 2) Si041137
20 Removal Procedure

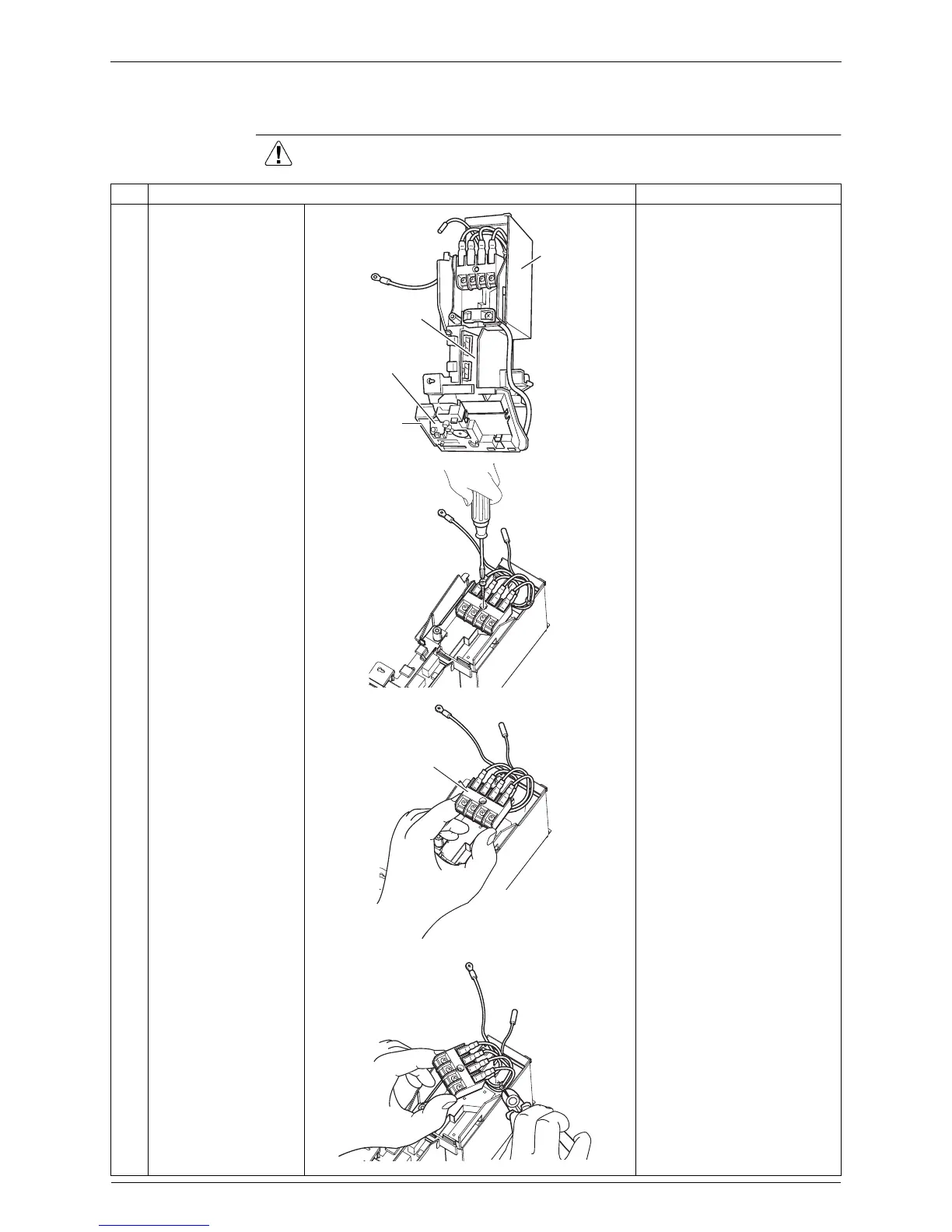

7. Removal of PCBs (Pattern 2)
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1
Appearance of the
electrical box
2
Remove the screw.
3
Remove the terminal
board.
4
Cut the clamp.
Control PCB
Shield plate
Signal receiver PCB
Display PCB
(inside)
(R13107)
(R13108)
(R13110)
Terminal
board
(R13109)
