Daikin FTYN25KV1A User Manual

Si041137 Removal of Horizontal Blades / Vertical Blades
Removal Procedure 7

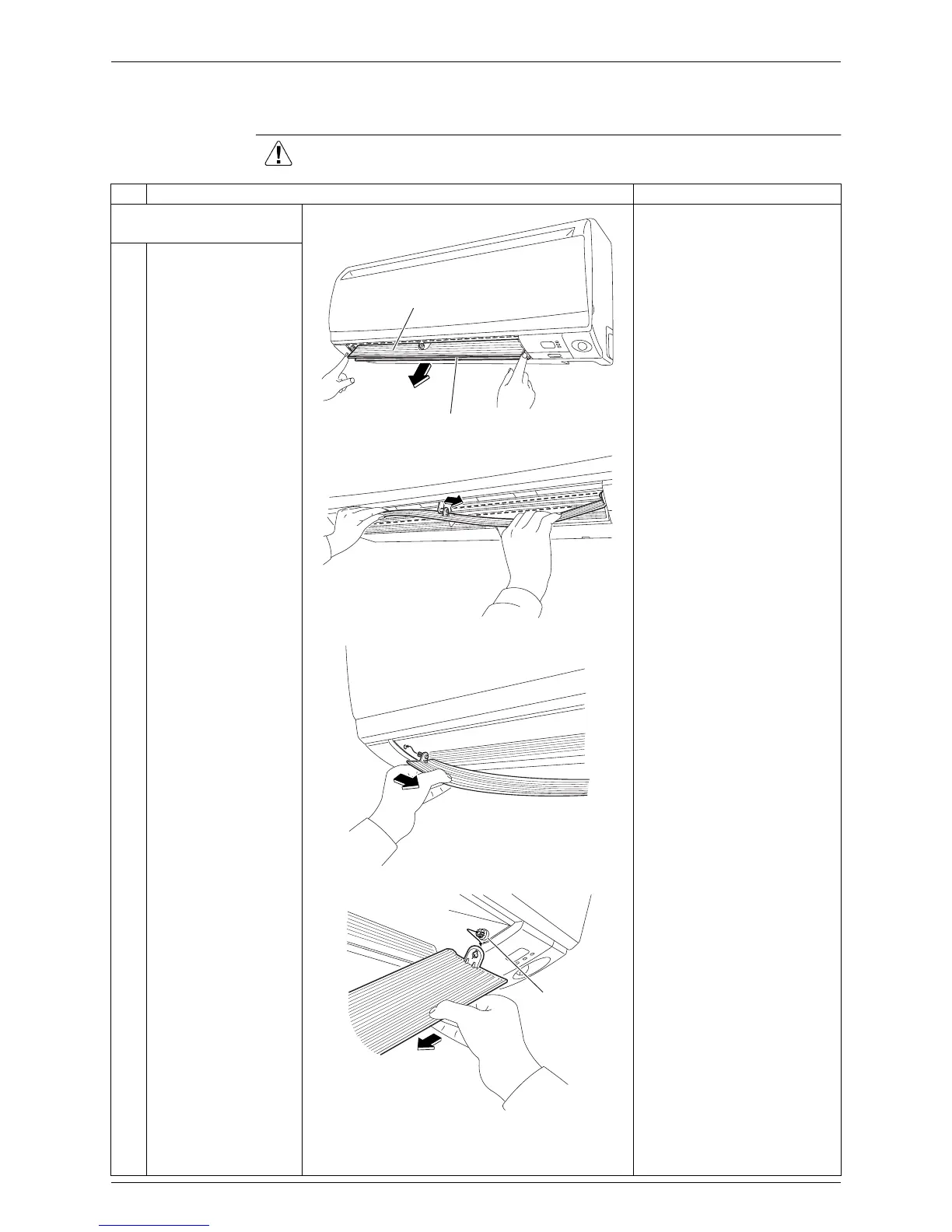

4. Removal of Horizontal Blades / Vertical Blades
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Remove the horizontal
blade (large).
1
Open the horizontal
blade (large).

When reassembling, mount
the large horizontal blade to
the upper position and the
small horizontal blade to the
lower position.
Do not put them in the wrong
place.
2
Unfasten the center
shaft while bending the
horizontal blade (large)
slightly.
3
Unfasten the left shaft.
4
Unfasten the right shaft.

There is a key alignment at
the right shaft. When
reassembling, insert the right
shaft first while turning.

After inserting the right shaft,
first mount the horizontal
blade to the center shaft and
then to the left shaft.
(R7921)
Horizontal blade (large)
Horizontal blade (small)
(R13175)
(R13073)
(R13492)
Key alignment
