Si041137 Removal of Electrical Box
Removal Procedure 11

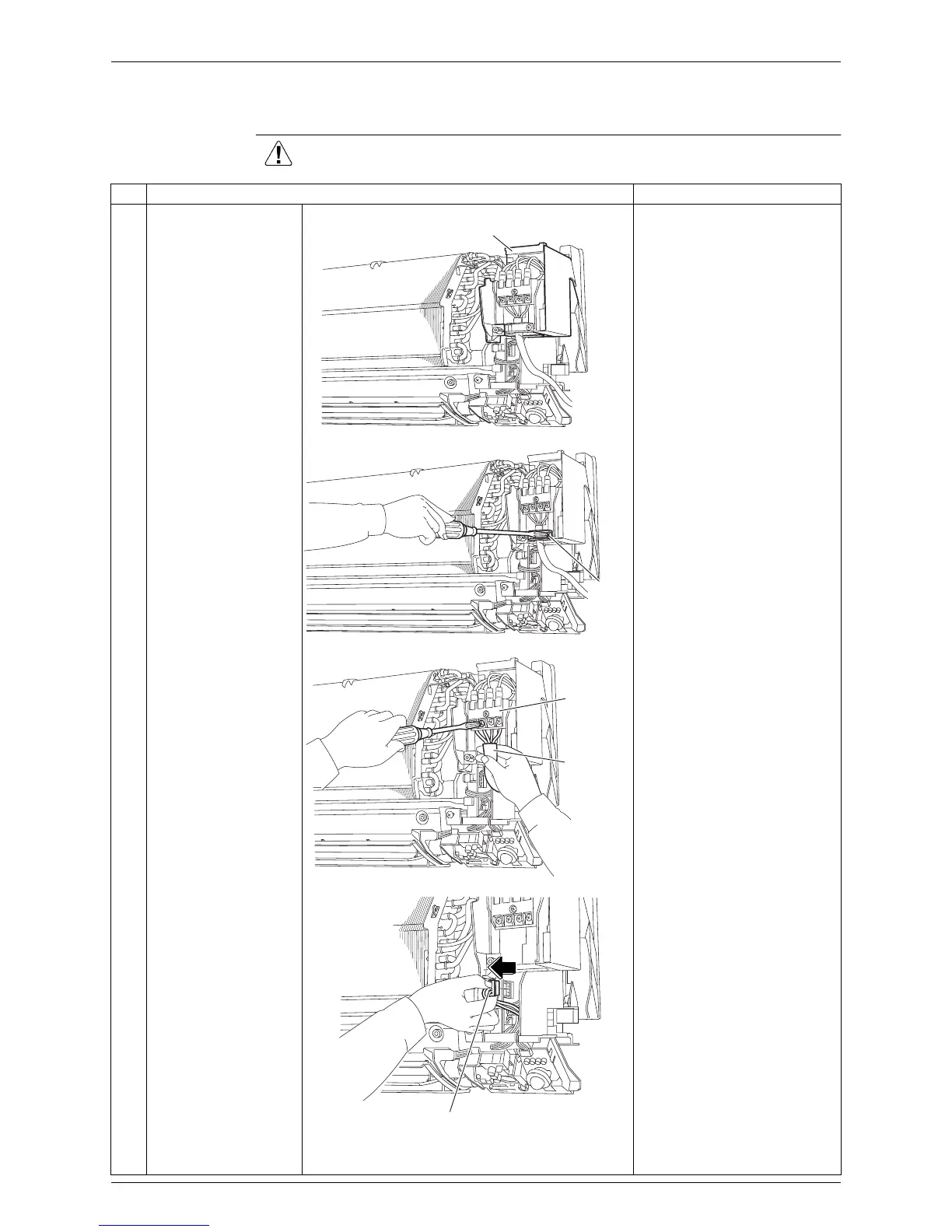

5. Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
The figure shows the
connections of the wire
harnesses.
Preparation

Remove the front grille
according to the “Removal of
Front Grille”.
2
Remove the screw of
the wire retainer.
3
Remove the 4 screws
of the terminal board
and disconnect the
connecting wires.
4
Disconnect the
connector for the fan
motor [S1].
(R13496)
Electrical box
(R13497)
Wire
retainer
(R16968)
Terminal
board
Connecting
wire
(R13499)
[S1]
