Daikin FTYN25KV1A - Detaching Front Grille

Removal of Front Grille Si041137
6 Removal Procedure

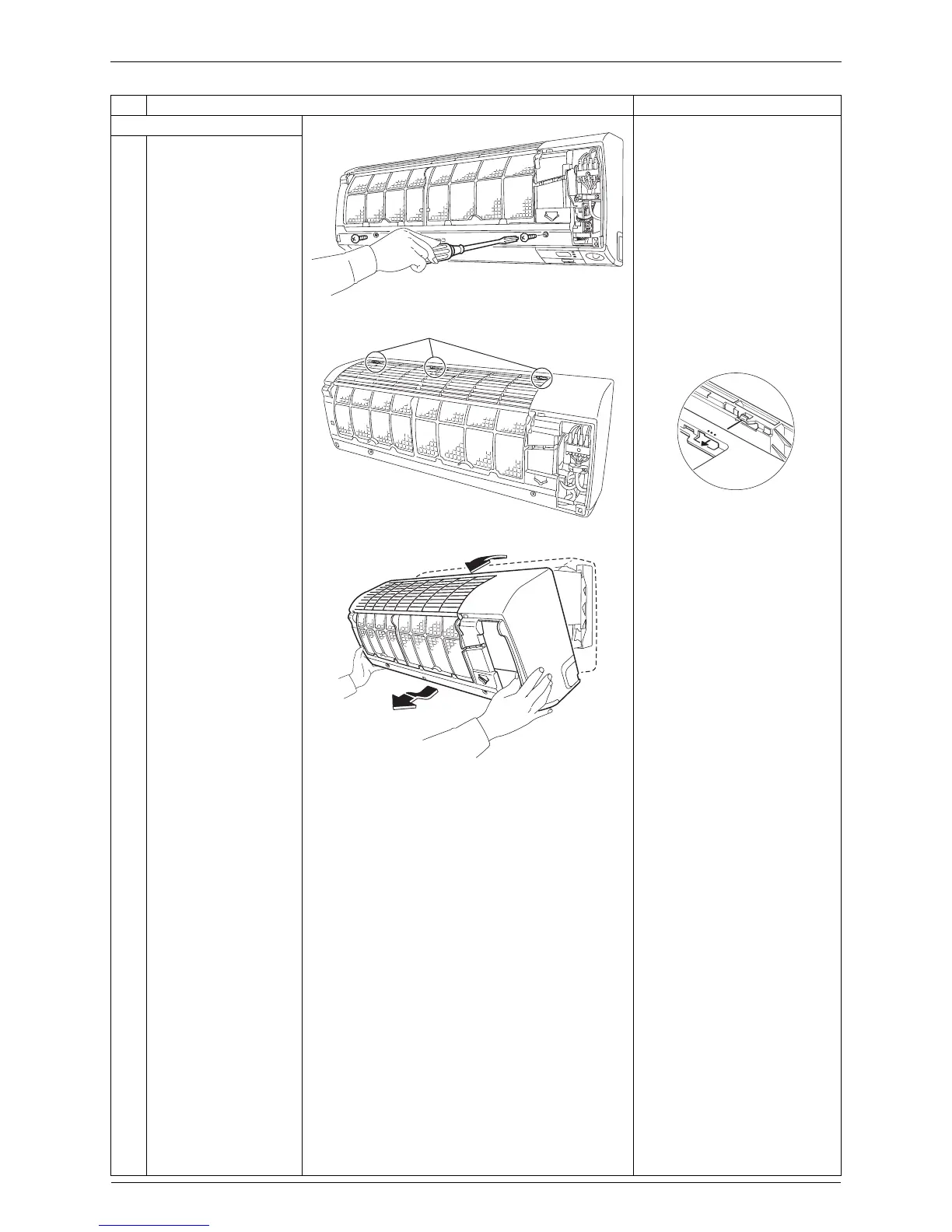

2. Remove the front grille.
1
Remove the 2 screws.
2
Unfasten the 3 hooks at
the top.

The convex marks (...) on
the front panel indicate the
position of the hooks.
3
Pull the upper part of
the front grille out and
lift the lower part up,
and then remove the
front grille.

When reassembling, make
sure that all the 3 hooks are
fastened as they were.
Step
Procedure Points
(R13490)
(R13491)
Hook
(R12715)
(R12268)
