Daikin FTYN25KV1A - Removing Pattern 2 Control PCB

Si041137 Removal of PCBs (Pattern 2)

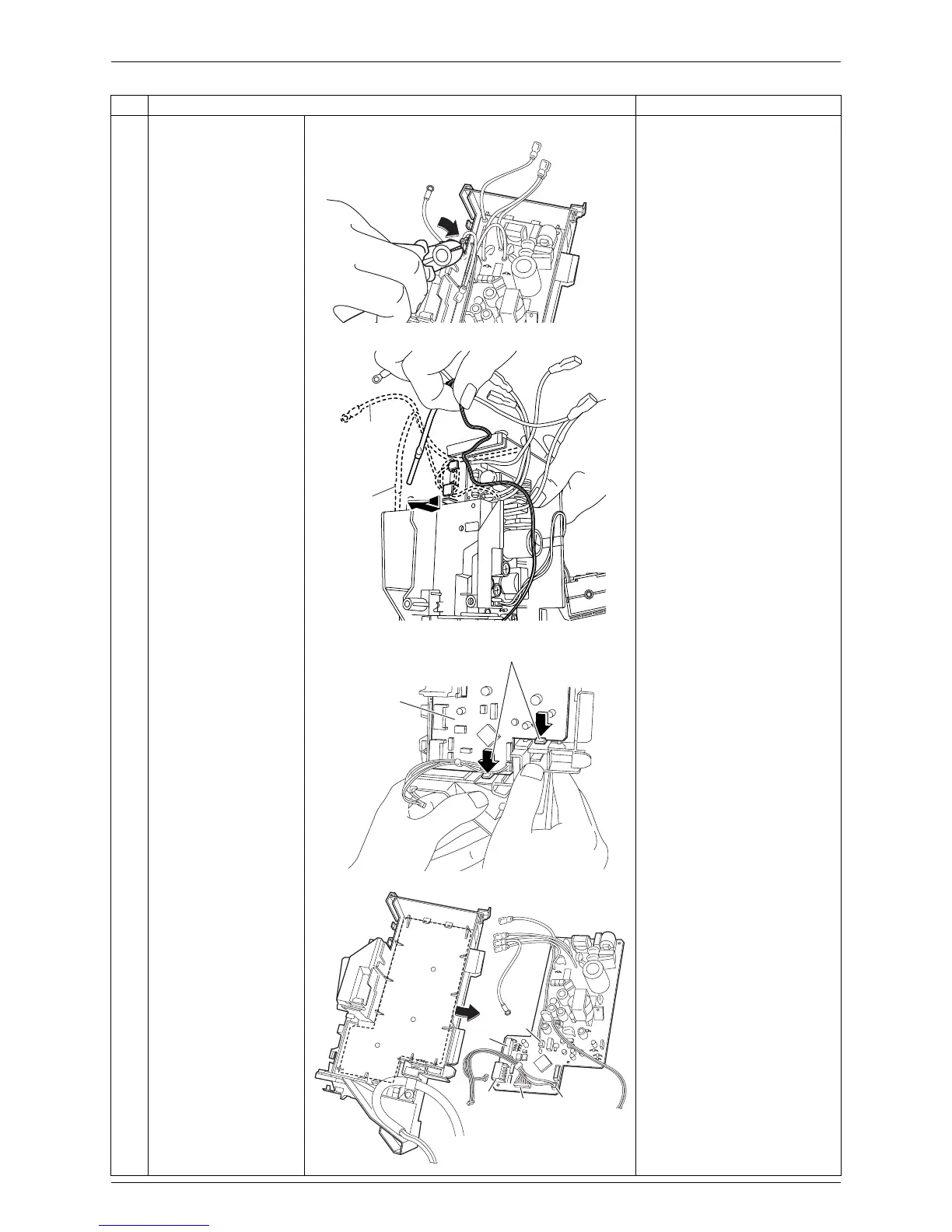

Removal Procedure 23
13
Cut the clamp.
14
Release the earth /
ground and thermistor
from the hooks.
15
Unfasten the lower 2
hooks of the control
PCB.

The control PCB is also
fixed by upper 2 hooks.
When reassembling, be
sure to fit all the 4 hooks.
16
Remove the control
PCB.
[S1]: DC fan motor
[S32]: indoor heat exchanger
thermistor
[S41]: swing motors
[S46]: display PCB
[S47]: signal receiver PCB
Step Procedure Points
(R13119)
(R13120)
Thermistor
Earth / ground
(R8097)
Hook
Control PCB
(R13164)
[S1]
[S32]
[S47]
[S46]
[S41]
