Daikin FTYN25KV1A - Removing Swing Motor Unit

Si041137 Removal of Swing Motors (Pattern 1)

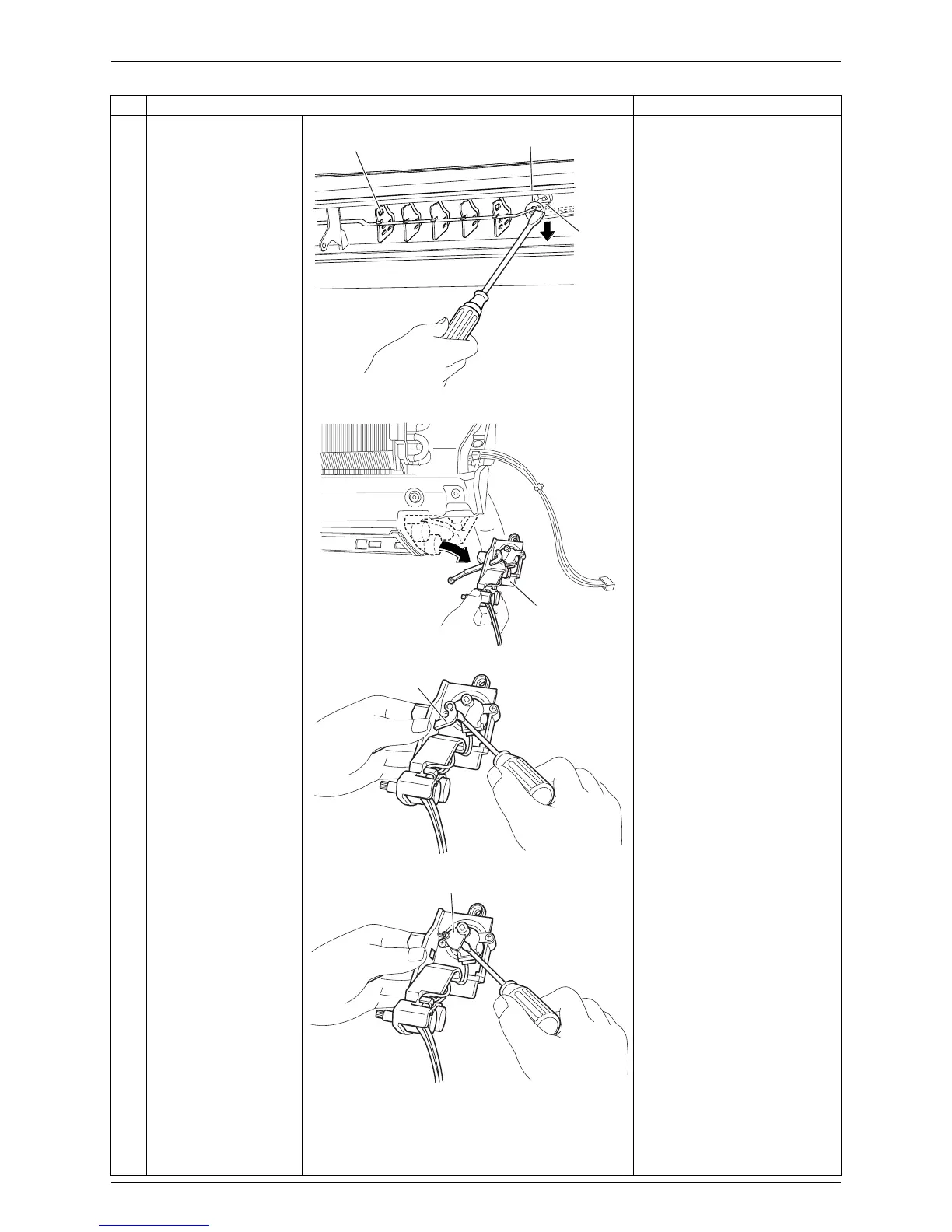

Removal Procedure 25
4
Detach the pivot from
the interlock shaft for
vertical blades with a
flat screwdriver.
5
Remove the swing
motor unit.
6
Detach the interlock
shaft from the swing
motor with a flat
screwdriver.
7
Remove the vertical
blade interlock with a
flat screwdriver.
Step
Procedure Points
(R13092)
Vertical blade
Pivot
Interlock
shaft
(R8126)
Swing motor unit
(R8127)
Interlock shaft
(R10331)
Vertical blade interlock
