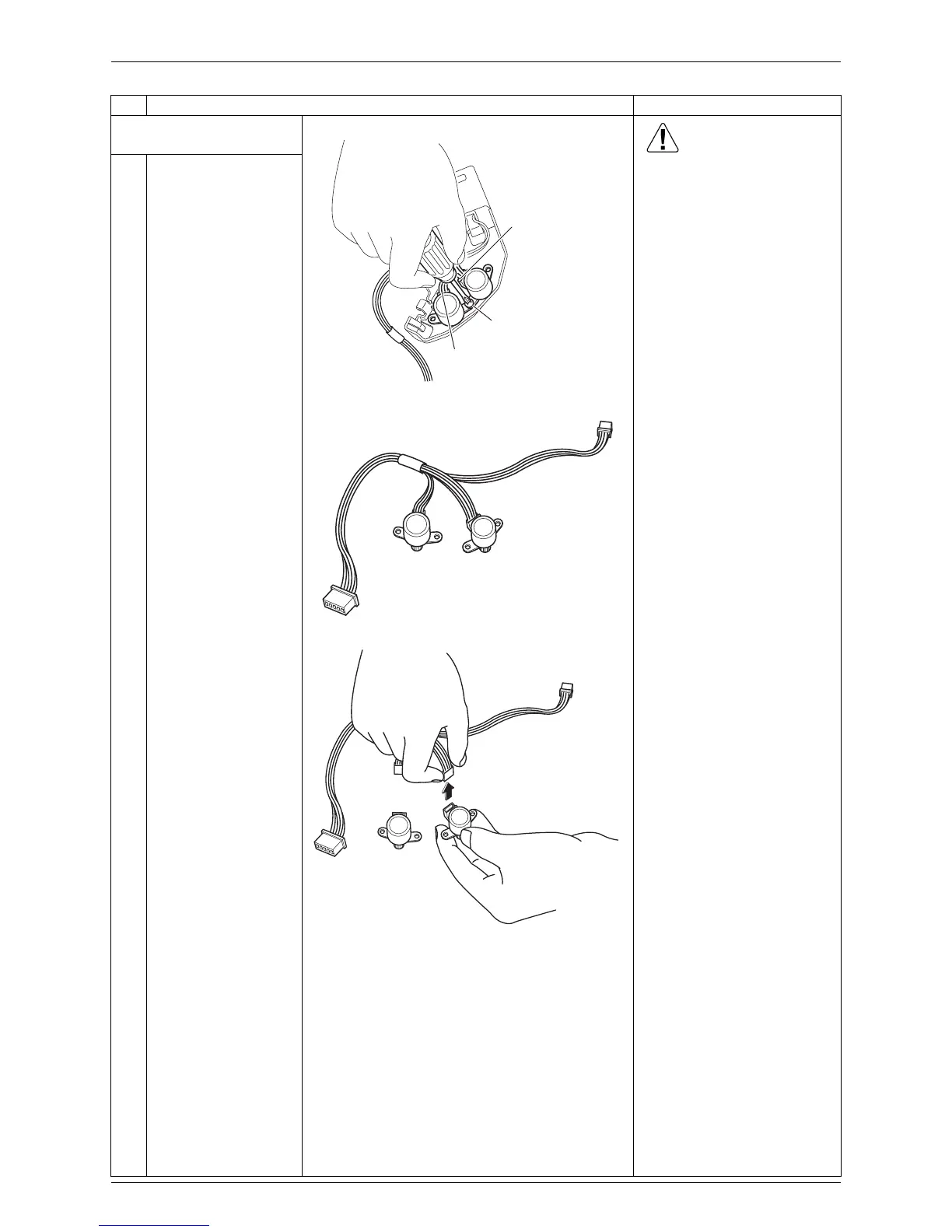

Si041137 Removal of Swing Motors (Pattern 1)

Removal Procedure 27

2. Remove the swing motors

for horizontal blades. Caution

When reassembling, do not

confuse the installing order of

the 2 motors and the colors of

the connectors.

If you set the connectors or

motors opposite, the

horizontal blades do not

move smoothly or noise may

be heard.

(1) Set the swing motor for the

upper blade first.

(connector: white)

(2) Then, set the swing motor

for the lower blade.

(connector: red)

(3) Fix both swing motors with a

screw.

Remove the screw and

remove the swing

motors for horizontal

blades.

Disconnect the

harnesses from the

motors.

Step

Procedure Points

(R8131)

Connector for

lower blade (red)

Connector for

upper blade (white)

Screw

(R8132)

(R10335)
