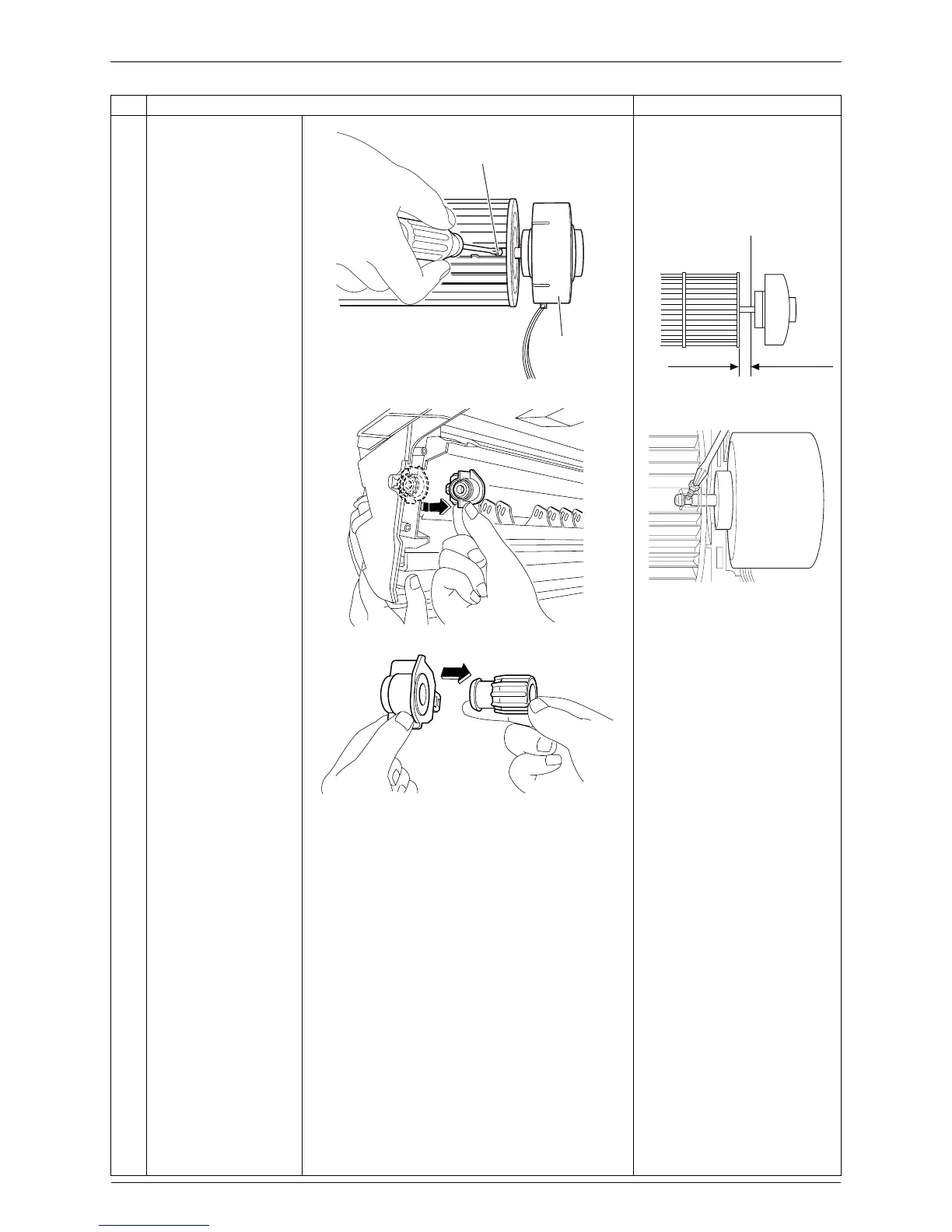

Removal of Fan Motor Si041137
36 Removal Procedure
2
Loosen the lock screw
and remove the fan
motor.

When reassembling the fan
motor and the fan rotor,
provide as much as 5 mm of
play between the side face
of the rotor and the bottom
frame.
(1) Insert the fan motor with
approx. 5 mm left.
(2) Tighten the screw until it
stops. Then give the screw
one more turn.
(3) Rotate the fan rotor and
confirm the fan motor and
the fan rotor are installed
appropriately.
(4) Tighten the screw
completely if appropriate.
(5) If not appropriate, go back to
(1).
3
Press the bearing
ASSY from outside.
4
Remove the bearing.
Step
Procedure Points
(R8120)
Lock screw
Fan motor
5 mm
Side face of rotor
(R2808)
Side face of
bottom frame
(R9582)
(R8121)
(R8122)
