2.4 Removal of Sound Blanket
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
 Remove the outer panels.
 Remove the electrical
box.

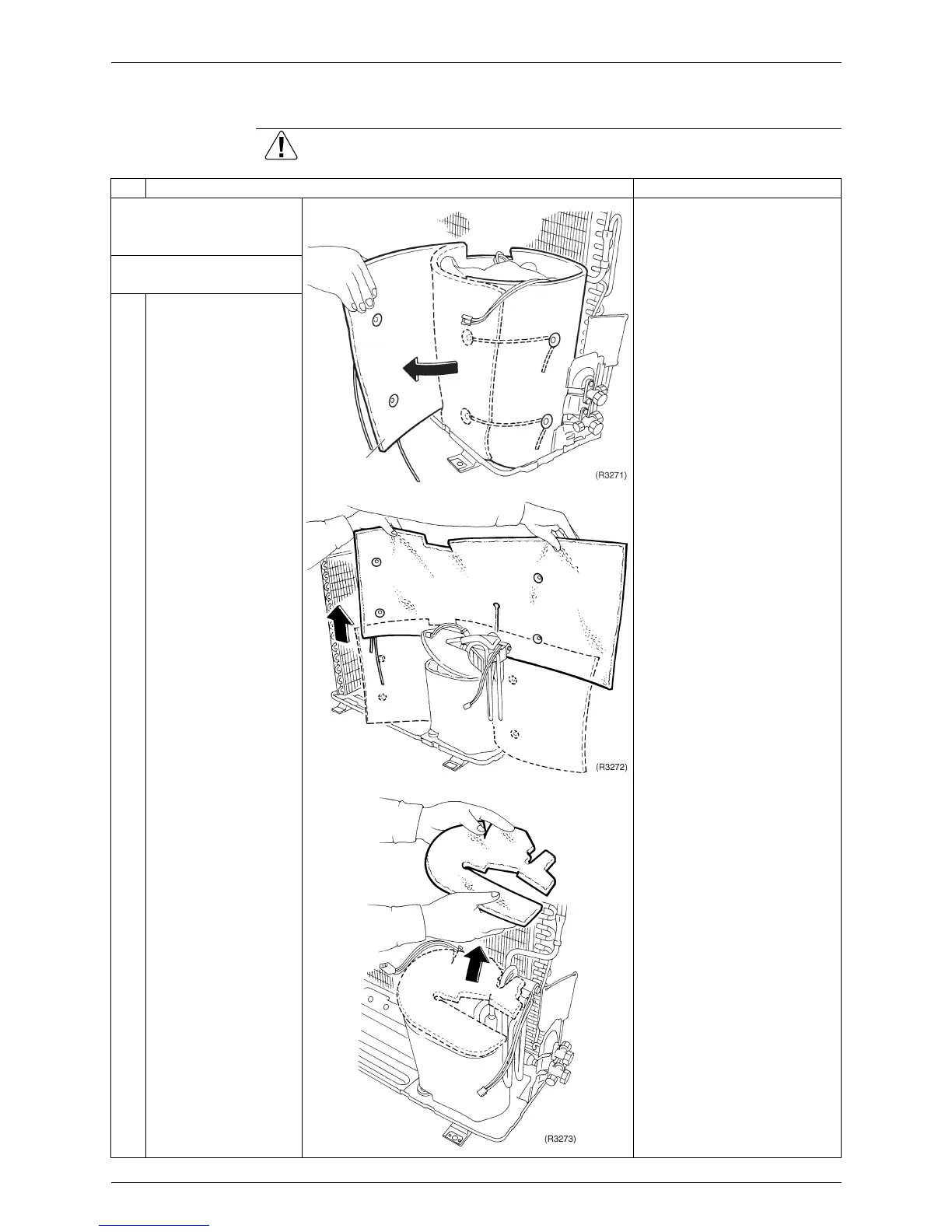

1. Remove the sound
blanket.
1
Untie the strings and
open the sound blanket.
2
Lift and remove the
sound blanket (body) as
it is opened.
 Since the piping ports on the
sound blanket are torn
easily, remove the blanket
carefully.
3
Lift and remove the
sound blanket (top).
Sound blanket
