■ Outdoor Unit
■
Indoor Unit
1. Air filter
2. Titanium Apatite Photocatalytic
Air-Purifying Filter:
•
These filters are attached to the inside of the air
filters.
3. Air inlet
4. Front panel
5. Panel tab
6. Room temperature sensor:
•
It senses the air temperature around the unit.
7. Display
8. Air outlet
9. Flaps (horizontal blades):
(page 12.)
10. Louvres (vertical blades):
• The louvers are inside of the air outlet.
(page 13.)
11. Indoor Unit ON/OFF switch:
(page 10.)
•
Push this switch once to start operation.
Push once again to stop it.
•
The operation mode refers to the following
table.
•
This switch is useful when the remote controller
is missing.
12. Operation lamp (green)
13. TIMER lamp (yellow):
(page 15.)
14. Signal receiver:
•
It receives signals from the remote controller.
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed..........beep
•
Operation stop ..............beeeeep
■

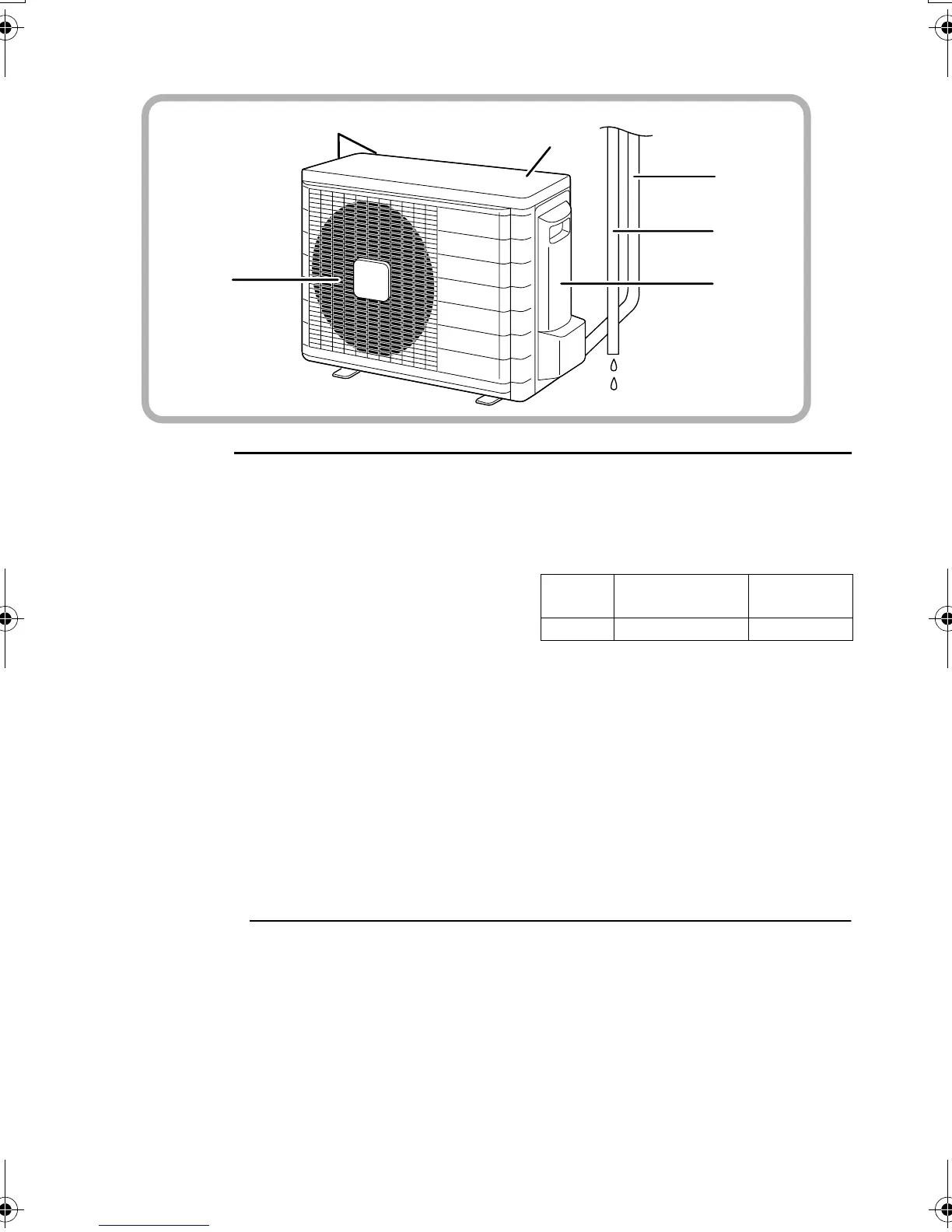

Outdoor Unit
15. Air inlet:
(Back and side)
16. Air outlet
17. Refrigerant piping and inter-unit cable
18. Drain hose
19. Earth terminal:
• It is inside of this cover.
20. Outside air temperature sensor:
•
It senses the ambient temperature around the
unit.
Appearance of the outdoor unit may differ from some models.
17
20
18
19
16
15
Mode
Temperature
setting
Air flow rate
AUTO
25°C
AUTO
