Indoor Unit : FUD 20/25B

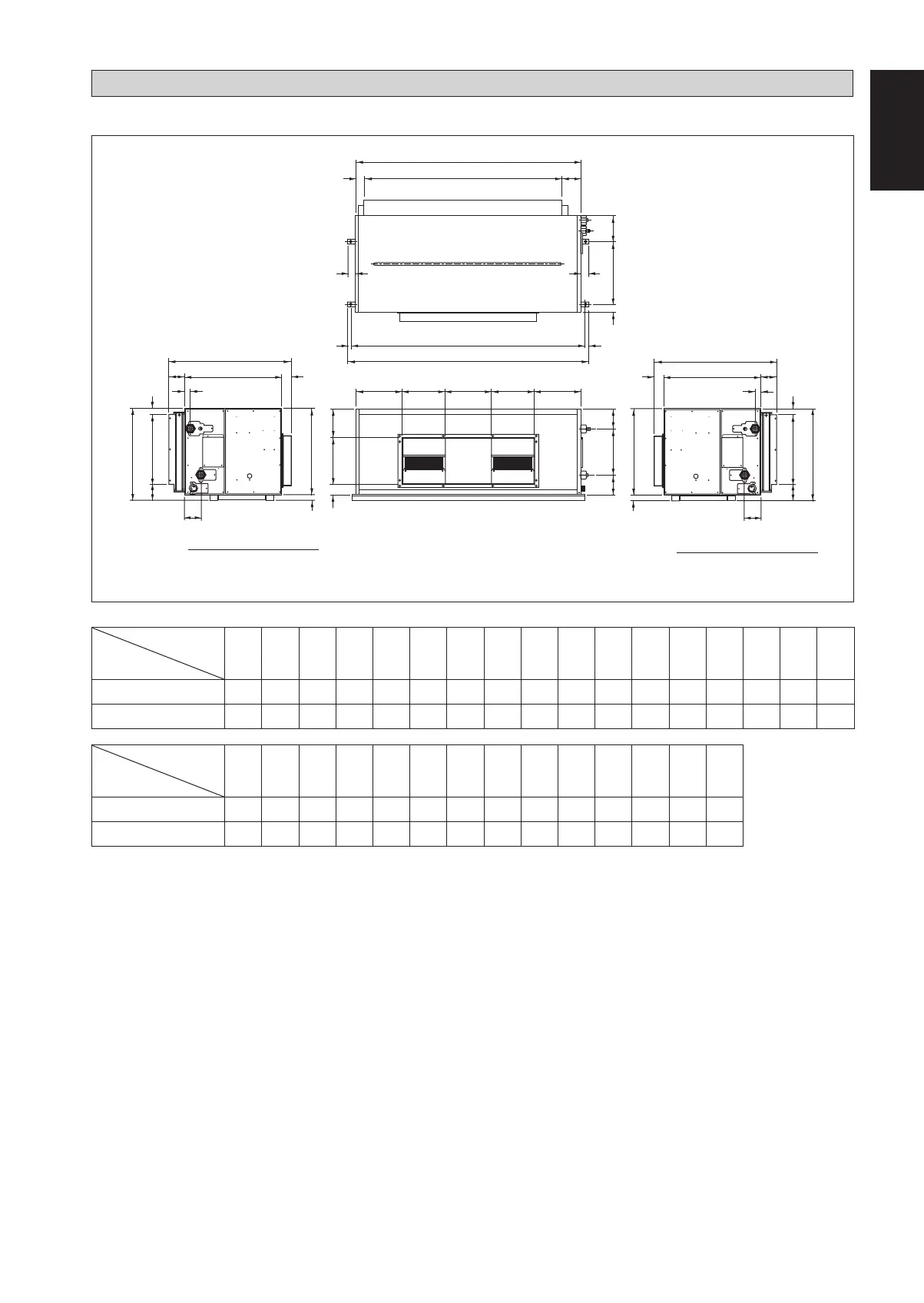

OUTLINE AND DIMENSIONS
All dimensions are in mm
Dimension
Model
ABCDEFGHI JKLMNOPQ
FUD 20B 1402 1232 1462 1502 53 50 20 117 163 394 48 287 270 288 177 295 65
FUD 25B 1402 1232 1462 1502 53 50 20 117 163 394 48 287 270 288 177 295 65
Dimension
Model
R S T U V W X Y Z ZAZBZCZDZE
FUD 20B 302 103 33 72 761 60 605 96 35 537 437 572 100 132
FUD 25B 289 103 33 72 761 60 605 96 35 537 437 572 100 145
A
V
YX W
T
Z
ZC
ZBZD
ZAZ
U
Q
O
LMNML
SR
ZE
V
YXW
T
Z
ZC
ZB
ZD
ZAZ
U
BEH
I
F
JK
G
C
D
F
G
P
LEFT PIPING (OPTIONAL)
RIGHT PIPING (STANDARD)
NOTE:
FOR HORIZONTAL AIR DISCHARGE
