Daikin FUD 20B - Page 5

English
1-3

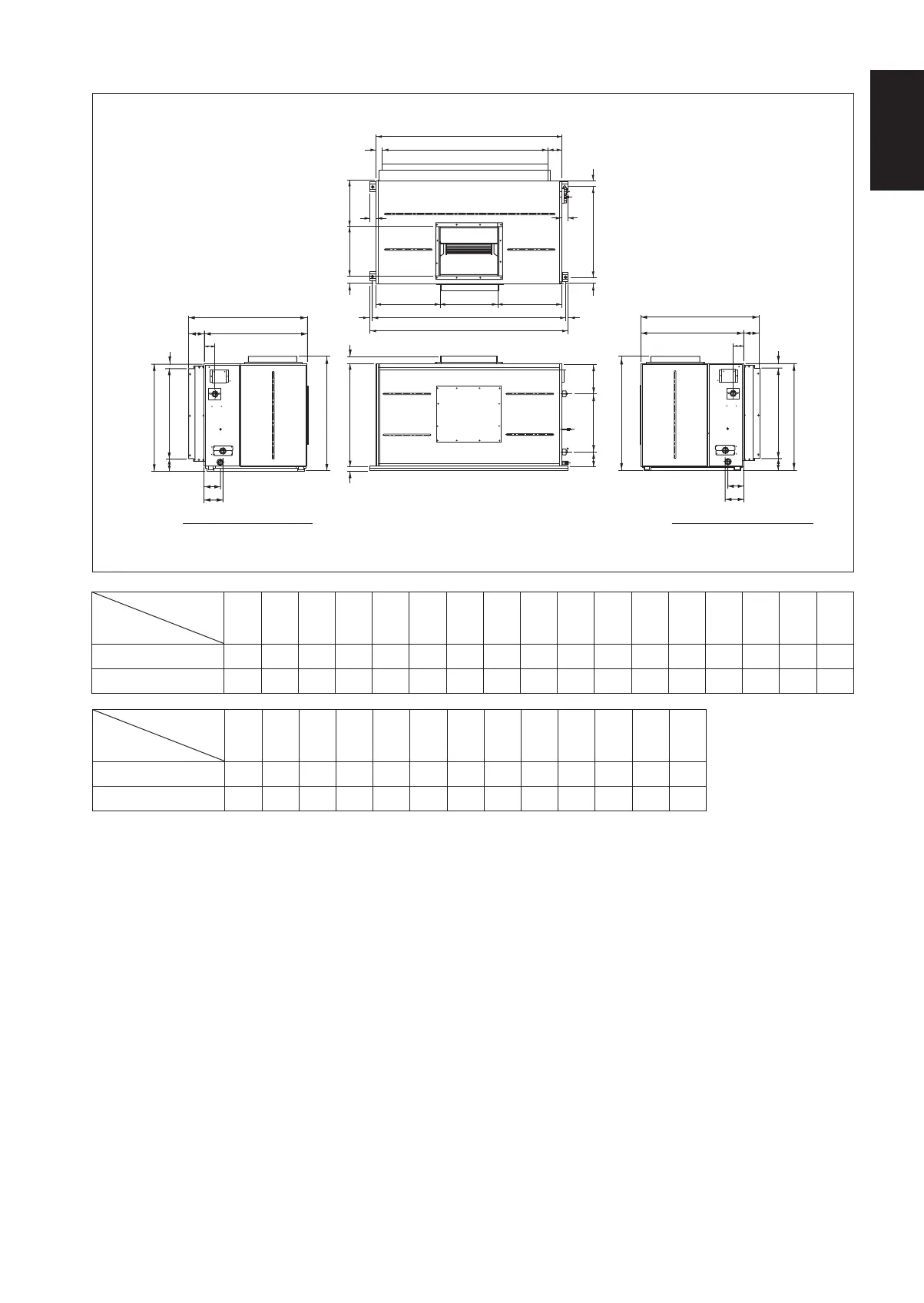

Indoor Unit : FUD 30/40B (VERTICAL AIR DISCHARGE)
All dimensions are in mm
Dimension
Model
ABCDEFGHI JKLMNOPQ
FUD 30B 1540 1370 1600 1640 53 50 20 117 48 754 885 533 474 382 408 60 468
FUD 40B 1540 1370 1600 1640 53 50 20 117 48 754 885 533 474 382 408 60 468
Dimension
Model
RSTUVWXYZZAZBZCZD
FUD 30B 120 35 88 262 155 132 980 60 850 130 747 103 945
FUD 40B 120 35 88 262 155 132 980 60 850 130 747 103 945
A
X
ZA
Z
T
S
K
ZB
ZC
ZD
S
W
Z
Y
X
R
QU
ZAZ
S
K
ZB
ZC
ZD
B
E
H
I
F
J
G
C
D
F
G
V
I
T
W
V
N
O
P
LML
NOTE:
FOR VERTICAL AIR DISCHARGE
LEFT PIPING (OPTIONAL) RIGHT PIPING (STANDARD)
