4 | About the box
Installer reference guide
18
CVXM-A, FVXM-A, CVXM-A9, FVXM-A9, FVXTM-A
Split system air conditioners
4P625991-1F – 2022.09

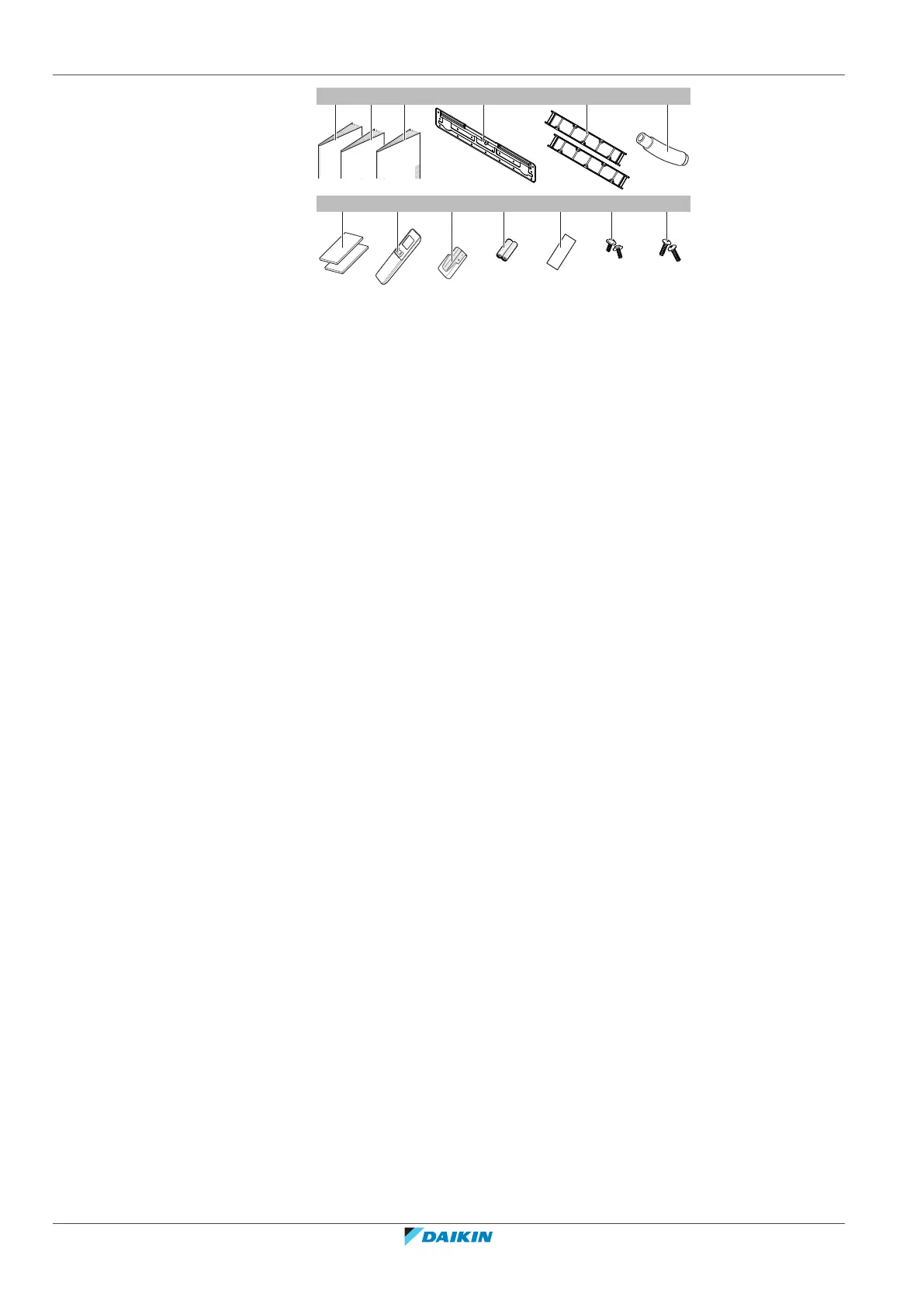

1× 2×1× 1× 1×1×
2× 1× 2×1×
edb ca f
1×2× 2×
j k lih
g
m
a Installation manual
b Operation manual
c General safety precautions
d Mounting plate (attached to the unit)
e Titanium apatite deodorising filter
f Drain hose
g Insulation piece
h Wireless remote control (user interface)
i Wireless remote control
j Dry battery AAA.LR03 (alkaline) for wireless remote control
k Spare SSID sticker (attached to the unit)
l Screws for fixing drain hose
m White head screws (for final installation of the front grille)
▪ Spare SSID sticker. Do NOT throw away the spare sticker. Keep it in a safe place
in case it is needed in the future (e.g. in case the front grille is replaced, attach it
to the new front grille).
