6 | Unit installation
Installer reference guide
35
CVXM-A, FVXM-A, CVXM-A9, FVXM-A9, FVXTM-A
Split system air conditioners
4P625991-1F – 2022.09

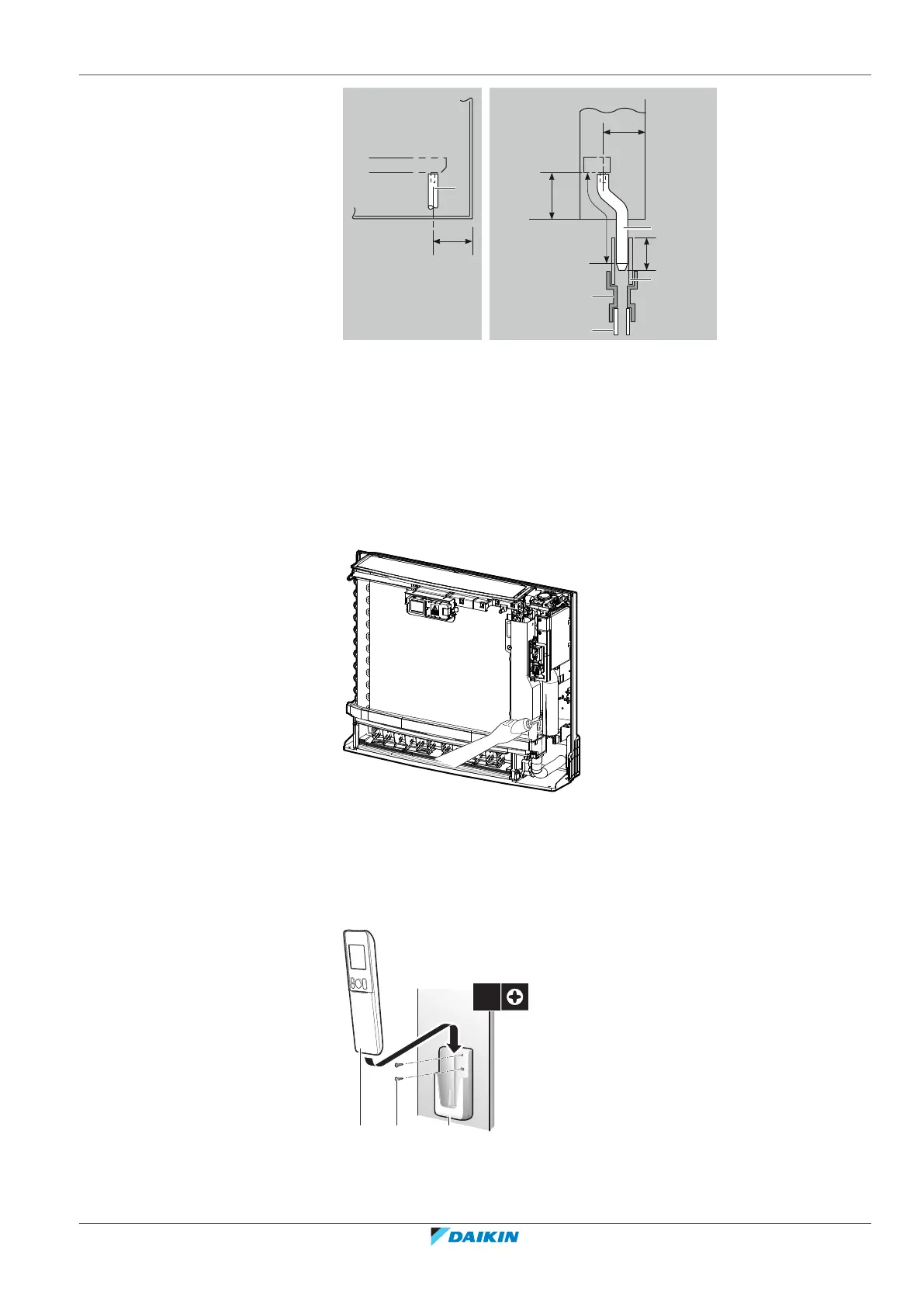

100
a
≥50
220
150
100
(mm)
c
d
b
a
a Drain hose (accessory)
b Vinyl chloride drain pipe (VP-30) (field supply)
c Reducer (field supply)
d Vinyl chloride drain pipe (VP-20) (field supply)
6.4.3 To check for water leaks
1 Remove the air filters.
2 Gradually pour approximately 1 l of water in the drain pan, and check for
water leaks.
6.5 Mounting the user interface
6.5.1 To mount the wireless remote control holder
cba
2×
a Wireless remote control
b Screws (field supply)
c Wireless remote control holder
