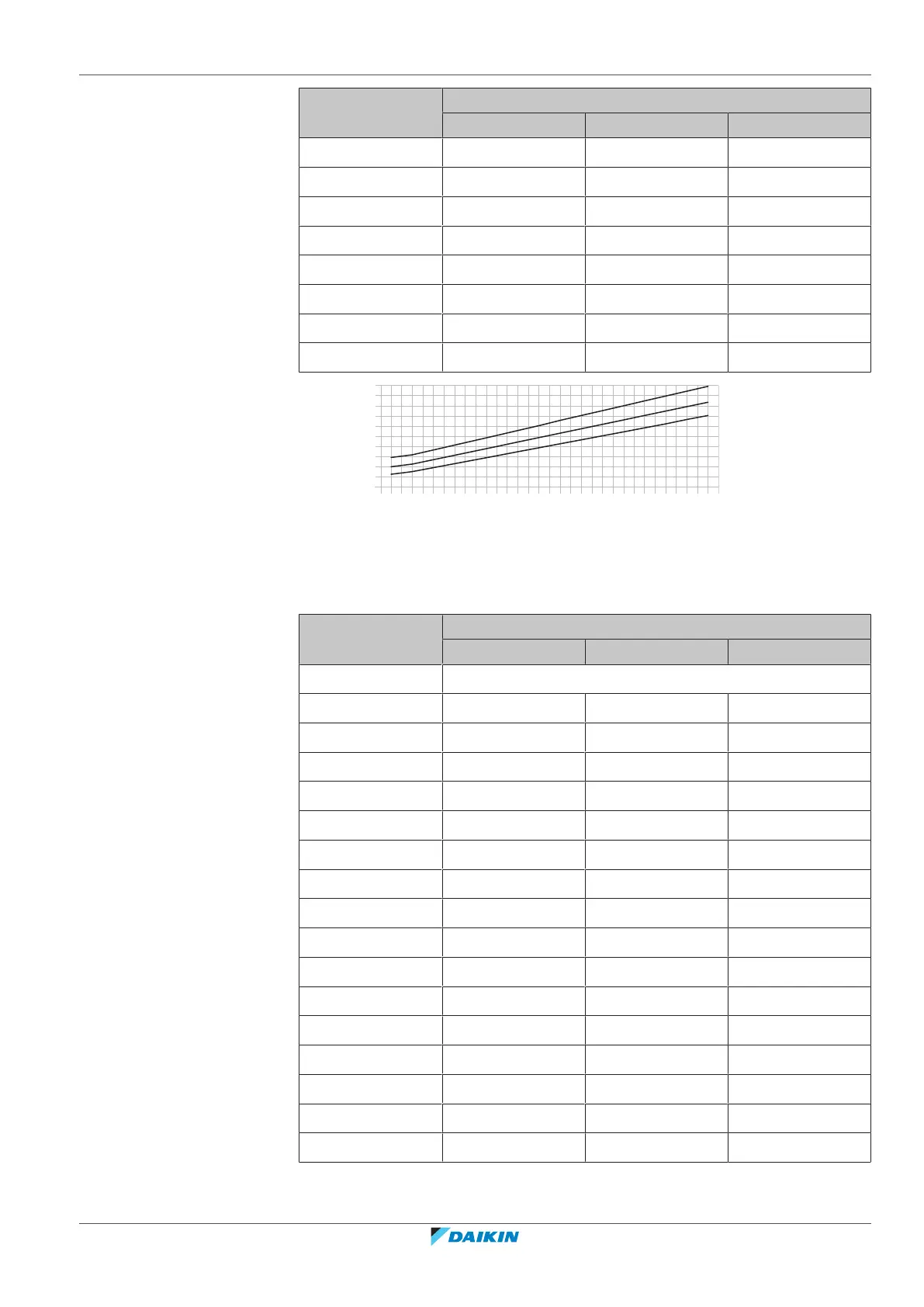

Daikin FVXM50A3V1B Installer's Reference Guide

6 | Unit installation
Installer reference guide
25
CVXM-A, FVXM-A, CVXM-A9, FVXM-A9, FVXTM-A
Split system air conditioners
4P625991-1F – 2022.09
m (kg) A
min
(m
2
)
H=2.2m H=2.0m H=1.8m
2.6 5.13 5.65 6.27
2.7 5.33 5.86 6.51
2.8 5.53 6.08 6.76
2.9 5.73 6.30 7.00
3.0 5.92 6.51 7.24
3.1 6.12 6.73 7.48
3.2 6.32 6.95 7.72
3.3 6.51 7.17 7.96
3,00
3,50
4,00
4,50
5,00
5,50
6,00
6,50
7,00
7,50
8,00
1,843 1,9 2,0 2,1 2,2 2,3 2,4 2,5 2,6 2,7 2,8 2,9 3,0 3,1 3,2 3,3
A
min
[m
2
]
m [kg]
(c) H = 2,2 m
(b) H = 2,0 m
(a) H = 1,8 m
A
min
Minimum floor area
m Total refrigerant charge in the system
H Height of the room
If indoor unit is installed in room UNDER ground level
m (kg) A
min
(m
2
)
H=2.2m H=2.0m H=1.8m
≤1.842 No limitations
1.843 5.46 6.00 6.67
1.9 5.63 6.19 6.88
2.0 5.92 6.51 7.24
2.1 6.22 6.84 7.60
2.2 6.51 7.17 7.96
2.3 6.81 7.49 8.32
2.4 7.11 7.82 8.69
2.5 7.40 8.14 9.05
2.6 7.70 8.47 9.41
2.7 8.00 8.79 9.77
2.8 8.29 9.12 10.13
2.9 8.59 9.45 10.50
3.0 8.88 9.77 10.86
3.1 9.18 10.10 11.22
3.2 9.48 10.42 11.58
3.3 9.77 10.75 11.94
