Daikin FVY71LAVE - Procedure to Remove Fan Rotor and Fan Motor

Procedure to Remove Fan Rotor and Fan Motor Si241306
6 Removal Procedure

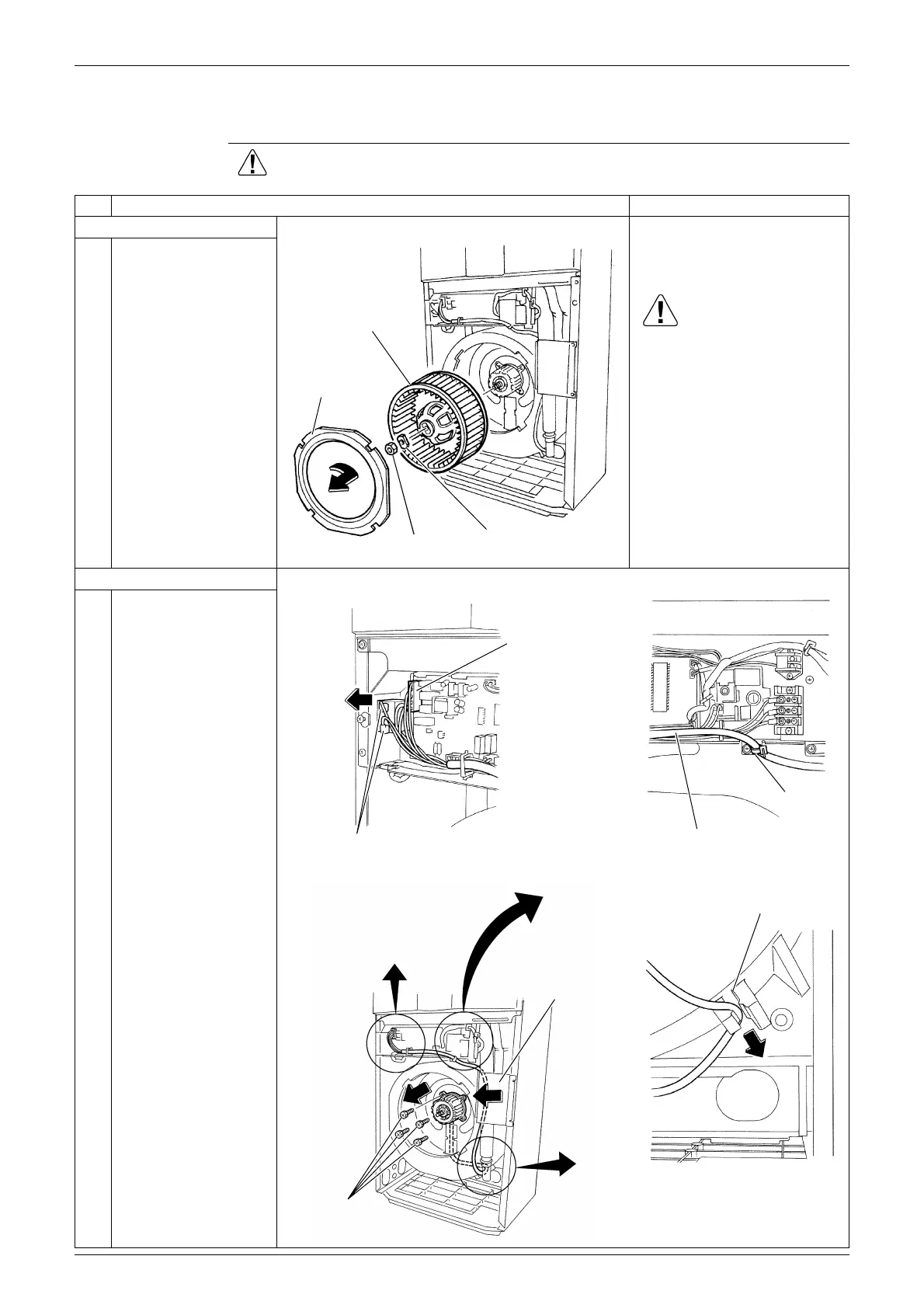

3. Procedure to Remove Fan Rotor and Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
Removing fan rotor
1
Turn bell mouth in CW
to remove it.
2
Remove hexagon nut
and turning stopper
plate to disassemble
fan rotor.
Caution
When reassembling be sure
to clamp wires.
Removing fan motor
1
Disconnect lead wire for
fan motor and harness
for capacitor from
switch box.
2
To dismount pipe-fixing
plate, remove a screw
and slide the plate to
left side.
3
To remove wire-fixing
plate, remove 2 screws
and slide the plate
upward.
4
Remove 4 hexagon
head screws to
dismount fan motor.
Fan rotor
Bell mouth
Hexagon nut
Turning stopper plate
Lead wire
for fan motor
Harness for capacitor
Pipe fixing plate
Hexagon
head screws
Clamp
Lead wire for fan motor
Clamp
