Si241306 Procedure to Remove Swing Motor
Removal Procedure 7

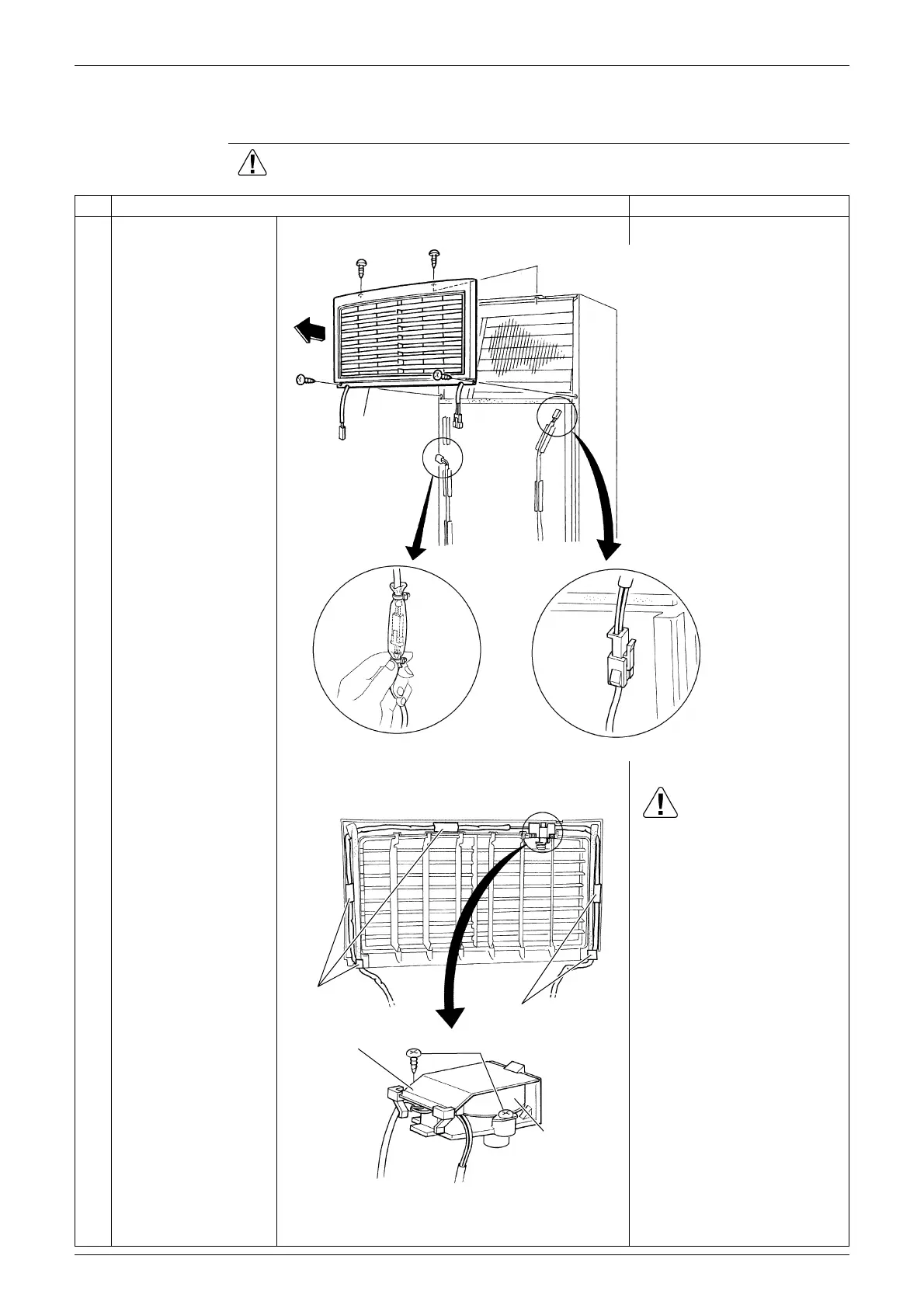

4. Procedure to Remove Swing Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Disconnect harness for
swing motor and 1 for
limit switch at connector
section.
2
Remove 4 screws to
dismount discharge
assembly.
3
Remove 2 screws to
dismount swing motor
assembly.
Caution
2 of 8 horizontal blades
located at top and bottom
position can be moved by
hand individually, while rest 6
blades are linked to move by
hand at the same time.
4
Disengage hooks on
swing motor mounting
plate cover and remove
2 screws. Then, remove
swing motor.
Harness for swing motor
Harness for limit motor
Discharge
assembly
Harness for swing motor
Filament tape
Swing motor
mounting cover
Screws
Filament tape
Swing motor
To Next Page
