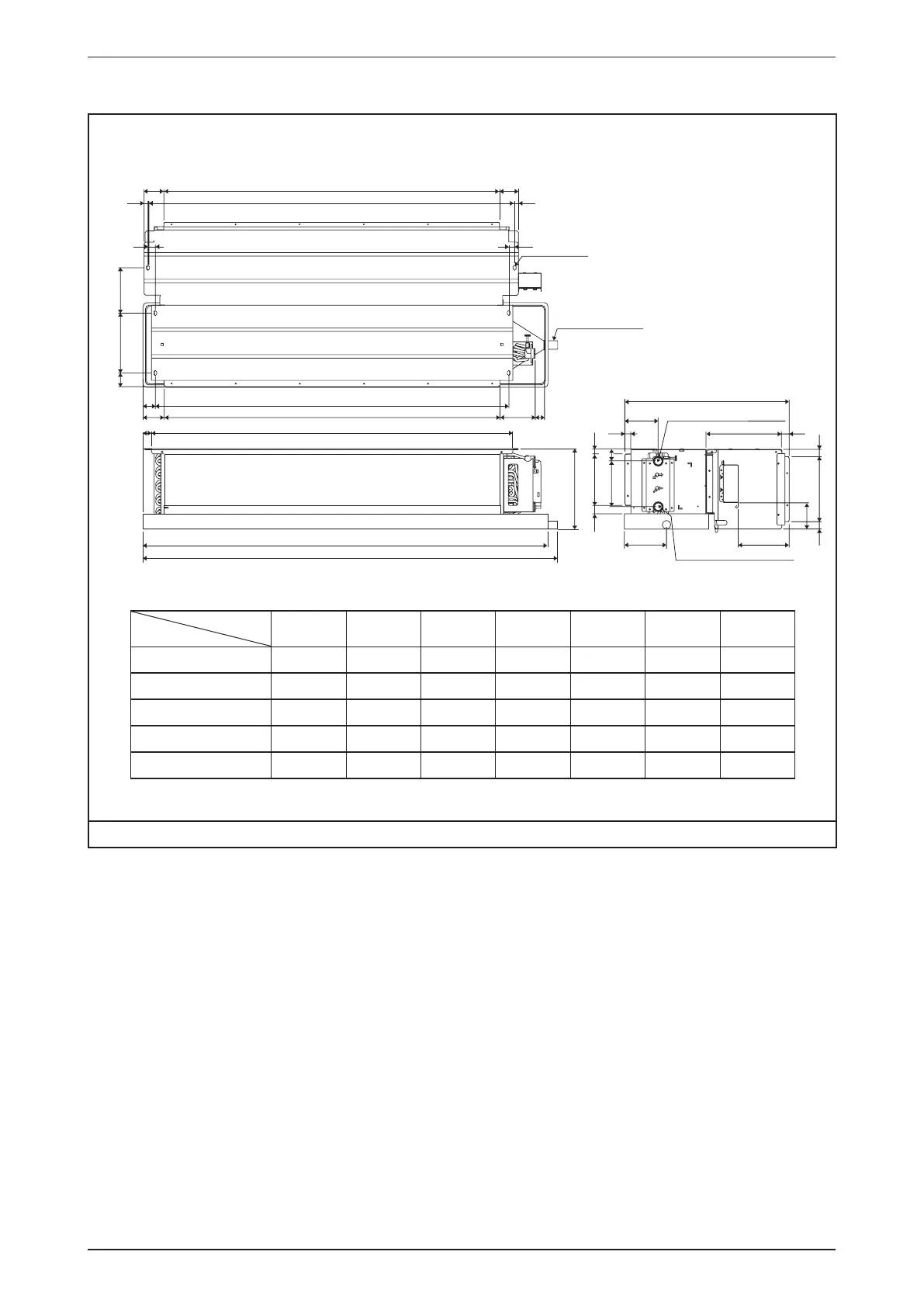

Outlines & Dimensions
112
Model: FWC02/03/04/06/08/10/12G EC (LSP , MSP)
OUT
IN
12
513
251
203
142
59KG59
12KF
235 24
MOUNTING HOLE
(6 X 10.0 X 16.0)
CONDENSATE DRAIN (R3/4”)
WATER OUT
(3/4” BSPT FEMALE THREAD ADAPTOR)
WATER IN
(3/4” BSPT FEMALE THREAD ADAPTOR)
18
KE
KD
110
30
66
38
26
18743
18
KB
KA
82
104
159132
161 1627
23
23
18
143
38
KC
Dimension
Model
KA KB KC KD KE KF KG
FWC02GW
657 630 494 414 470 508 414
FWC03/04GW
801 774 638 558 614 652 558
FWC06GW
901 874 738 658 714 752 658
FWC08/10GW
1289 1264 1127 1049 1103 1141 1047
FWC12GW
1540 1514 1378 1300 1354 1392 1298
Note: Dimension in mm
